    X70UL

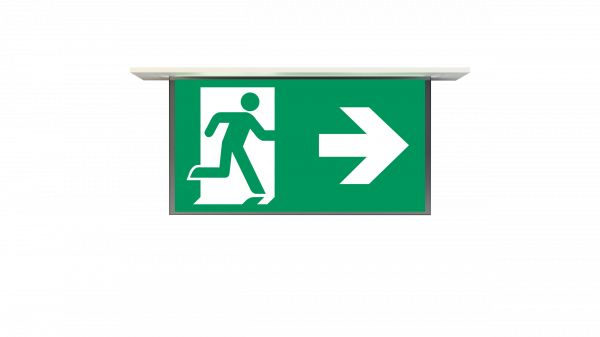

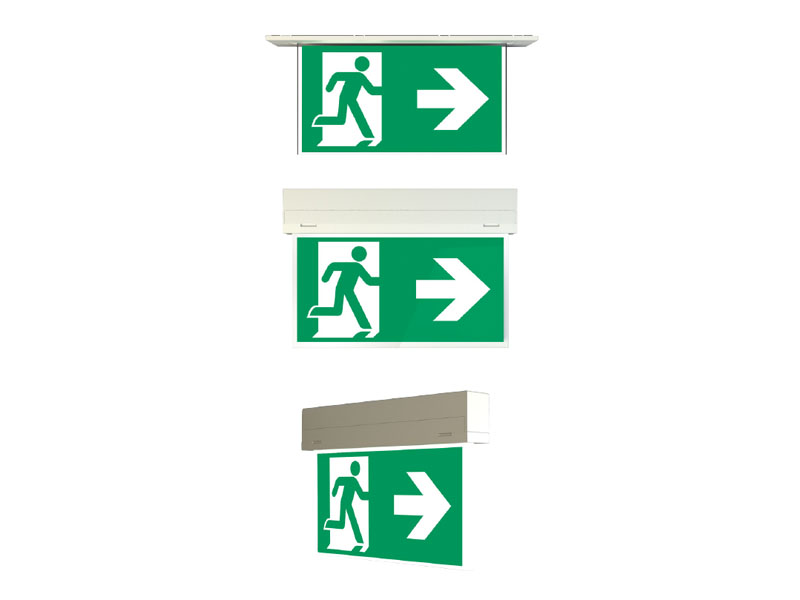

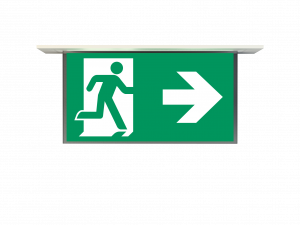

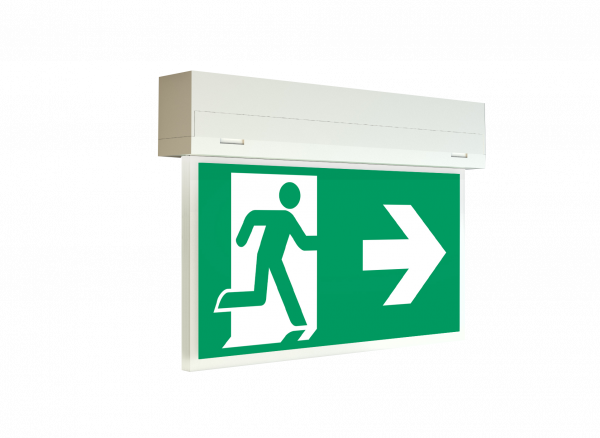

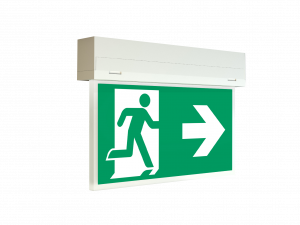

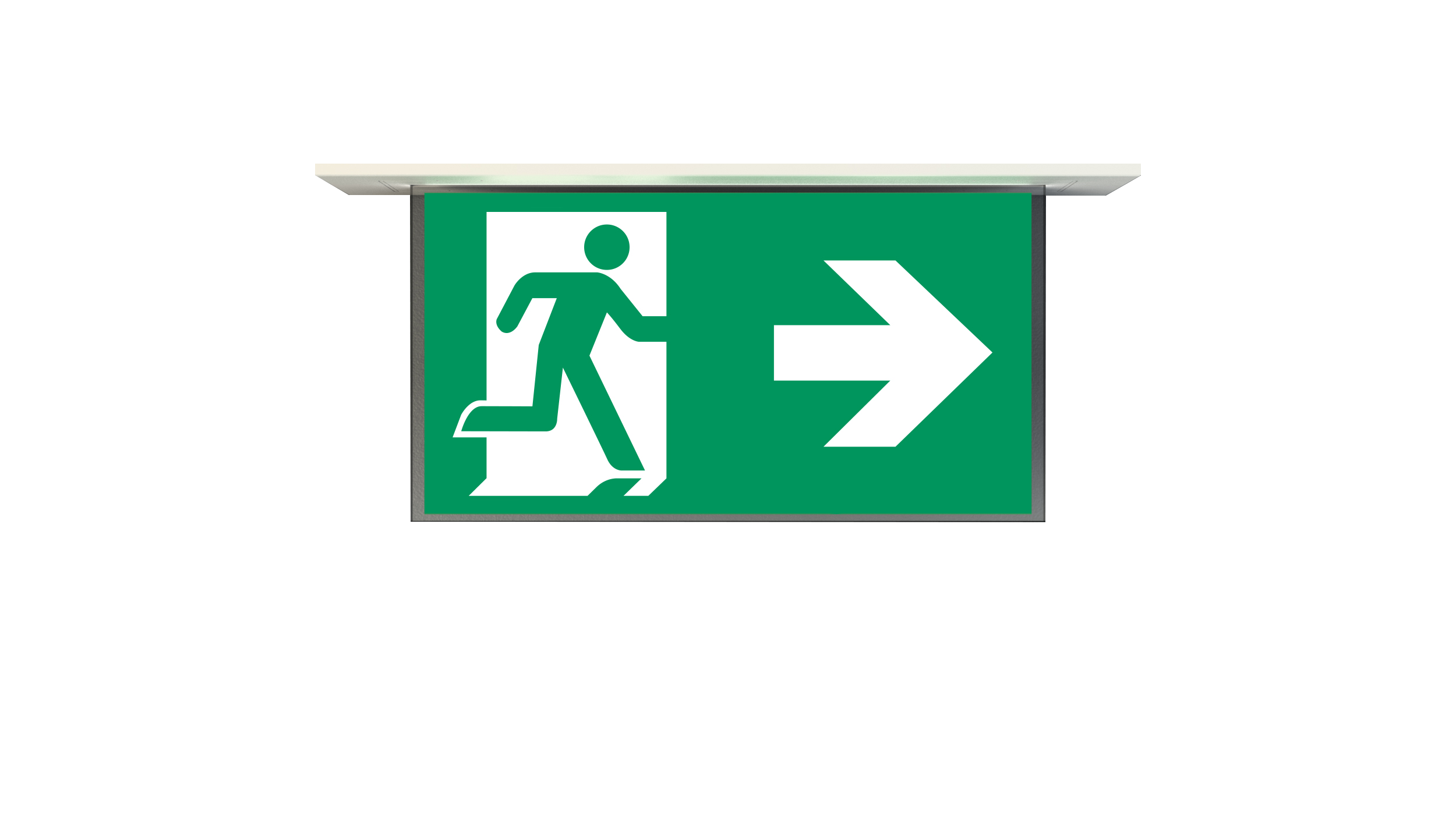

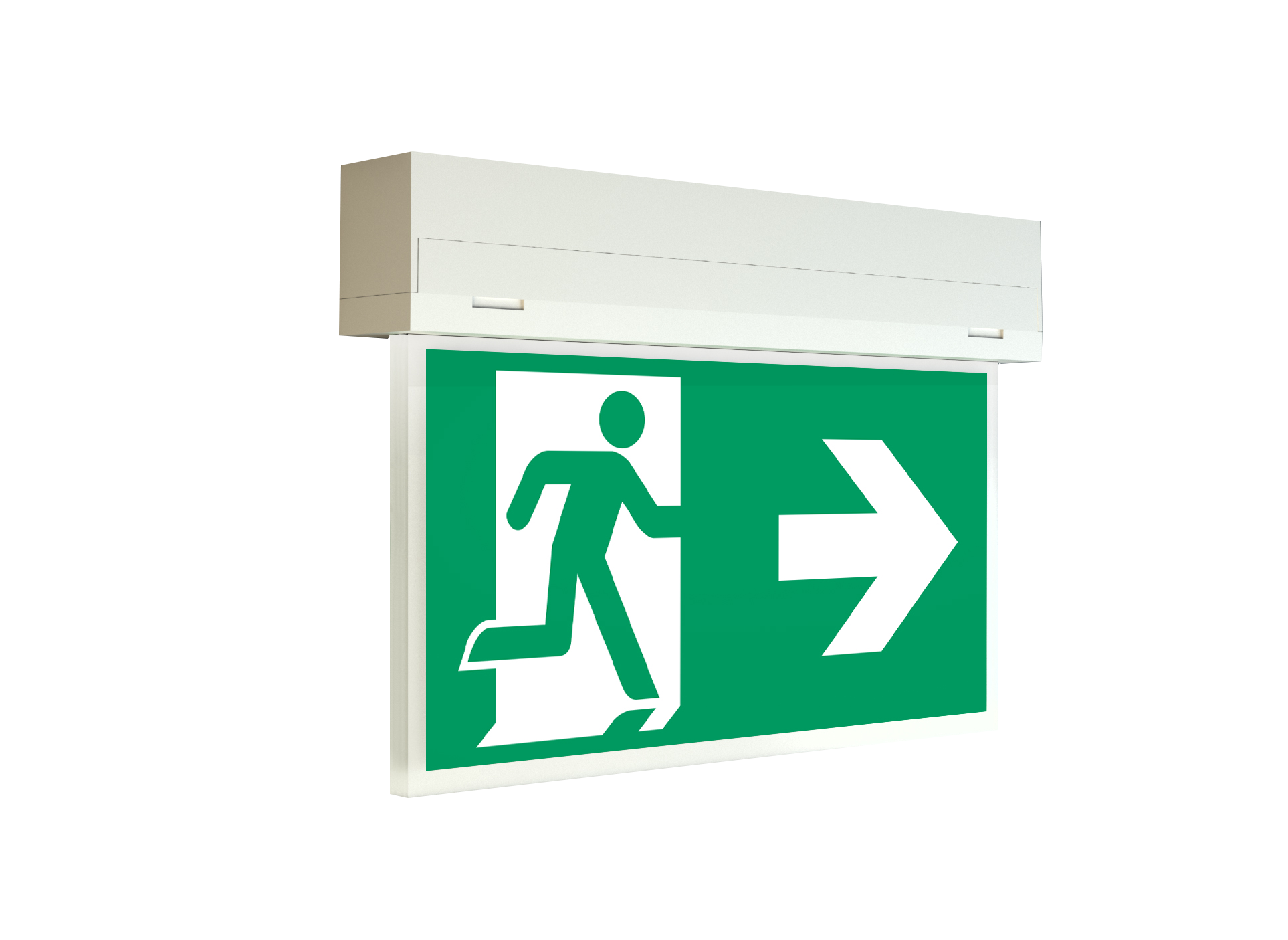

    Innovative high-grade Polycarbonate edge LED luminaire for universal mounting. This luminaire has the simplest installation using in the design only 3 parts. Applicability; maintained or non-maintained operation mode. Improved reliability through easy to install universal use of pictograms. Universal pictogram set (left, right, down, neutral) included. Signs according EN 60598-1, EN 60598-2-22 and EN 1838 norms. These luminaires are suitable for Parking, Above Exit Doors & Corridor Areas.

    Innovative high-grade Polycarbonate edge LED luminaire for universal mounting. This luminaire has the simplest installation using in the design only 3 parts. Applicability; maintained or non-maintained operation mode. Improved reliability through easy to install universal use of pictograms. Universal pictogram set (left, right, down, neutral) included. Signs according EN 60598-1, EN 60598-2-22 and EN 1838 norms. These luminaires are suitable for Parking, Above Exit Doors & Corridor Areas.

    Features

    • Innovative high-grade Polycarbonate edge LED luminaire for with Universal Mounting Option.
    • The luminaire has the simplest installation using in the design only 3 parts.
    • Developed in accordance with Latest European Standards DIN EN 60598-1, DIN EN 60598-2-22 and DIN EN 1838.
    • Well suitable for Corridor, Above Exit Door & High Ceiling areas.
    • Universal pictogram set (left, right, down, neutral) included.
    • Complying EMC (Elector Magnetic Compatibility) & Immunity Requirement as per EN 61000 & EN 61547.

    Technical Specifications



    Emergency Duration 3 hours
    Max. Consumption 3.2W LED
    Ambient Temperature  -5 °C up to +40 °C
    Ingress Protection Rating IP54
    Protection Class II
    Mounting Type Universal
    Housing Polycarbonate, White
    RAL Code 9003
