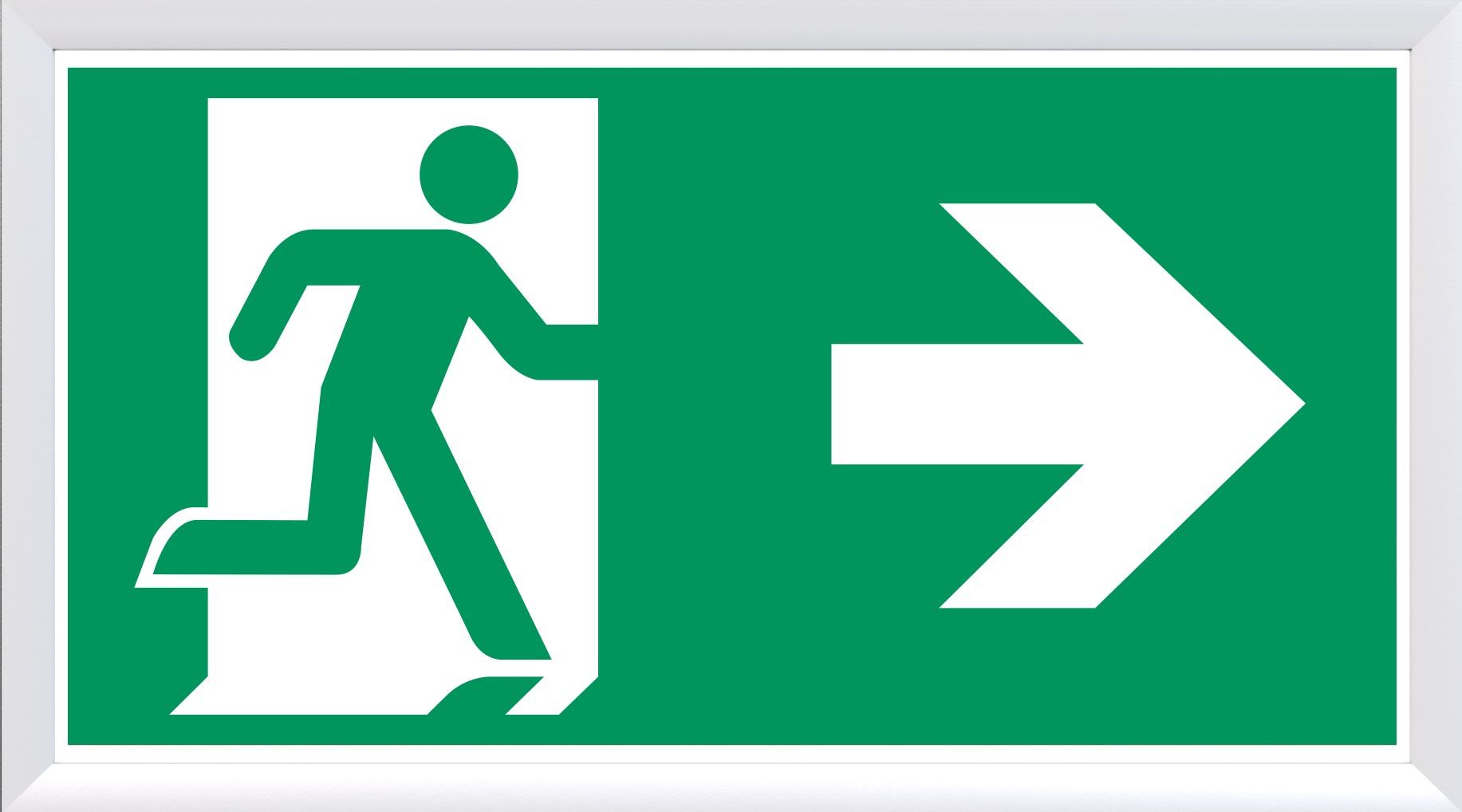

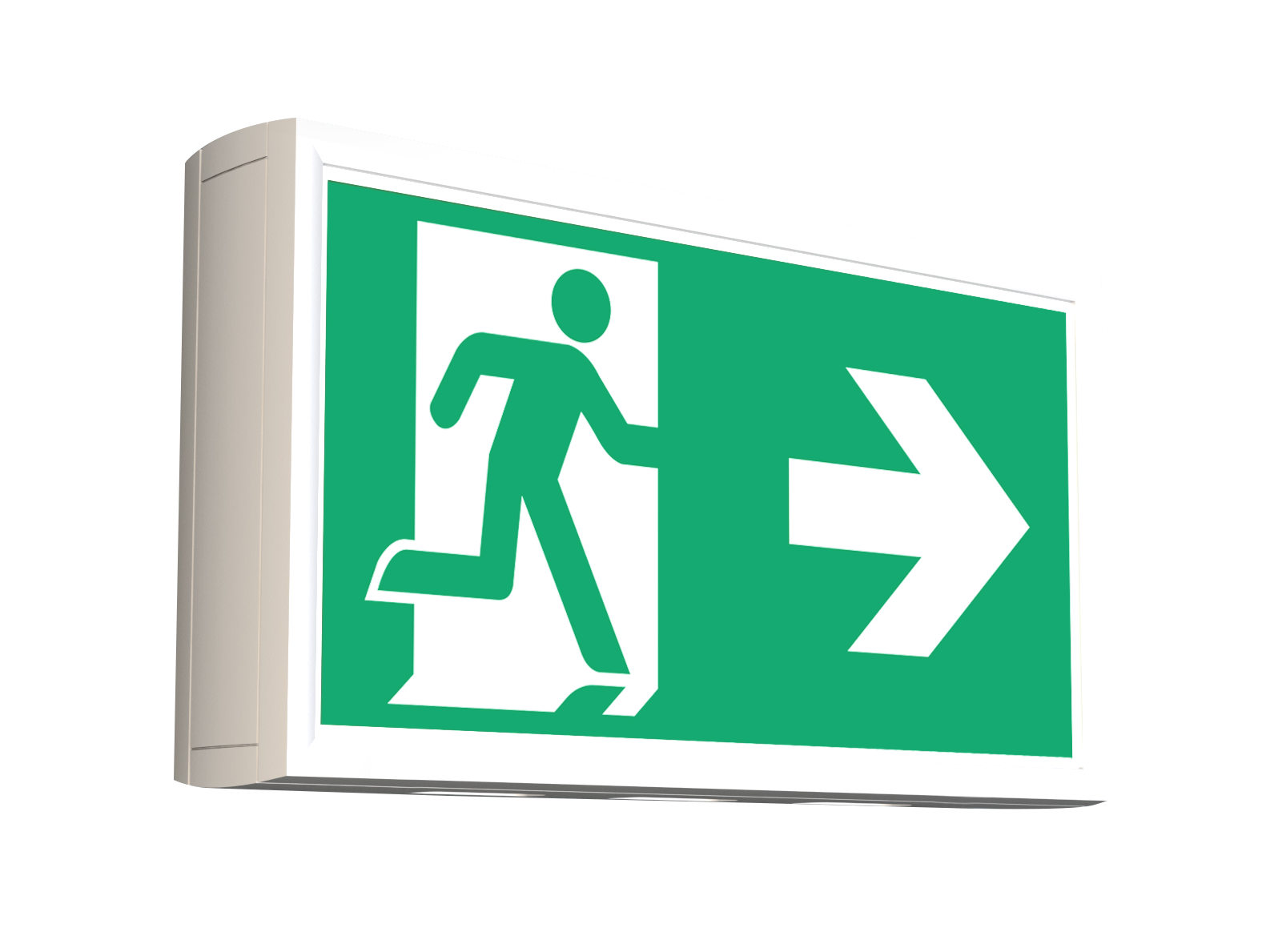

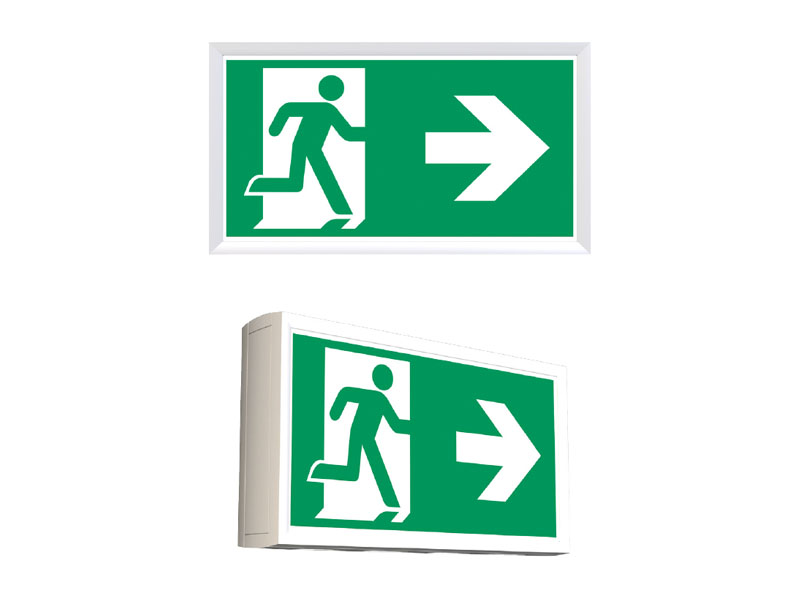

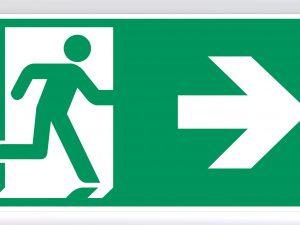

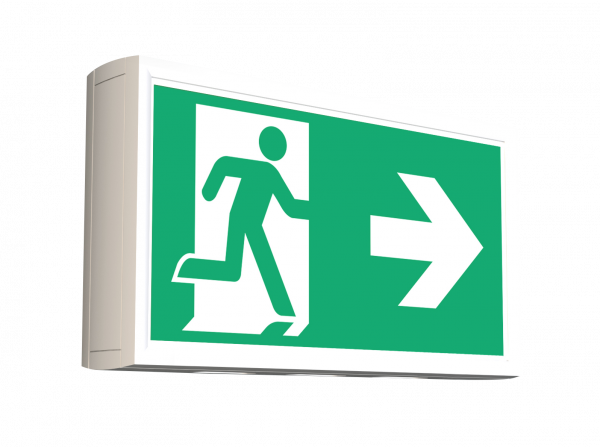

      X60UL

        Slim design high-grade Polycarbonate luminaire for universal mounting (wall/ ceiling or eventual at wall bracket through supplied adapter). This luminaire provides additional downward lighting to enhance safety at the egress route. Applicability; maintained or non-maintained operation mode. Improved reliability through easy to install universal use of pictograms. Signs according EN 60598-1, EN 60598-2-22 and EN 1838 norms. These luminaires are suitable for Above Exit Doors & Corridor Areas.

        Slim design high-grade Polycarbonate luminaire for universal mounting (wall/ ceiling or eventual at wall bracket through supplied adapter). This luminaire provides additional downward lighting to enhance safety at the egress route. Applicability; maintained or non-maintained operation mode. Improved reliability through easy to install universal use of pictograms. Signs according EN 60598-1, EN 60598-2-22 and EN 1838 norms. These luminaires are suitable for Above Exit Doors & Corridor Areas.

        Features

        • Slim design high-grade Polycarbonate luminaire with Universal Mounting Option.
        • Developed in accordance with Latest European Standards DIN EN 60598-1, DIN EN 60598-2-22 and DIN EN 1838.
        • Well suitable for Corridor and Above Exit Door areas.
        • Enclosed Exit legend with 4 Exit directions.
        • Complying EMC (Elector Magnetic Compatibility) & Immunity Requirement as per EN 61000 & EN 61547.

        Technical Specifications

        Emergency Duration 3 hours
        Max. Consumption 5.2W LED
        Ambient Temperature  -5 °C up to +40 °C
        Ingress Protection Rating IP43
        Protection Class II
        Mounting Type Wall / Ceiling
        Housing Polycarbonate, White
        RAL Code 9003





        Resources

        Download Catalog
