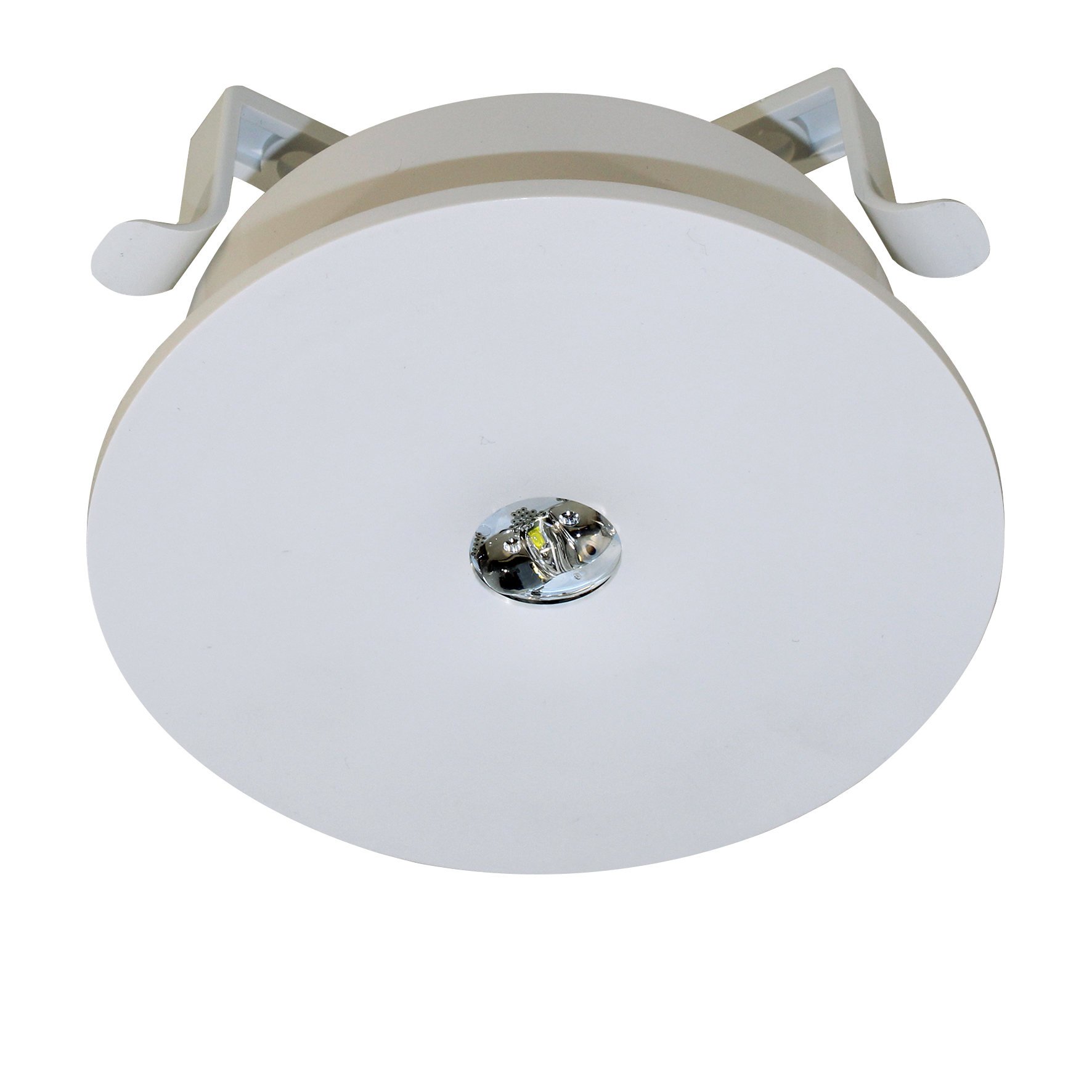

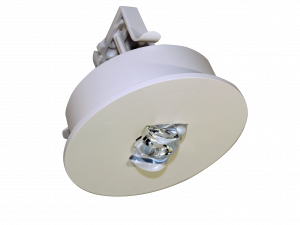

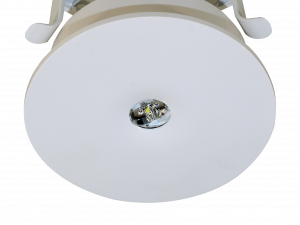

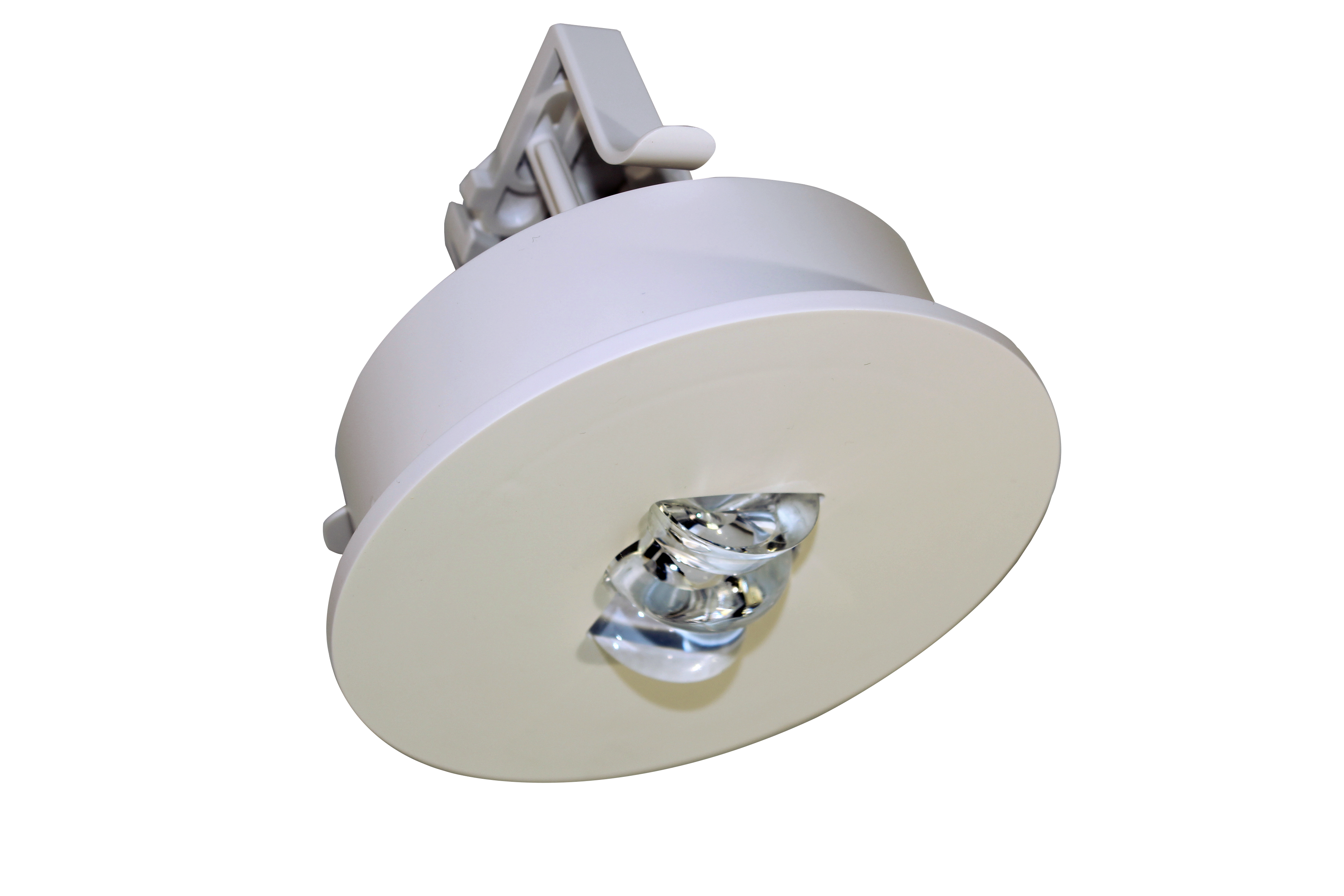

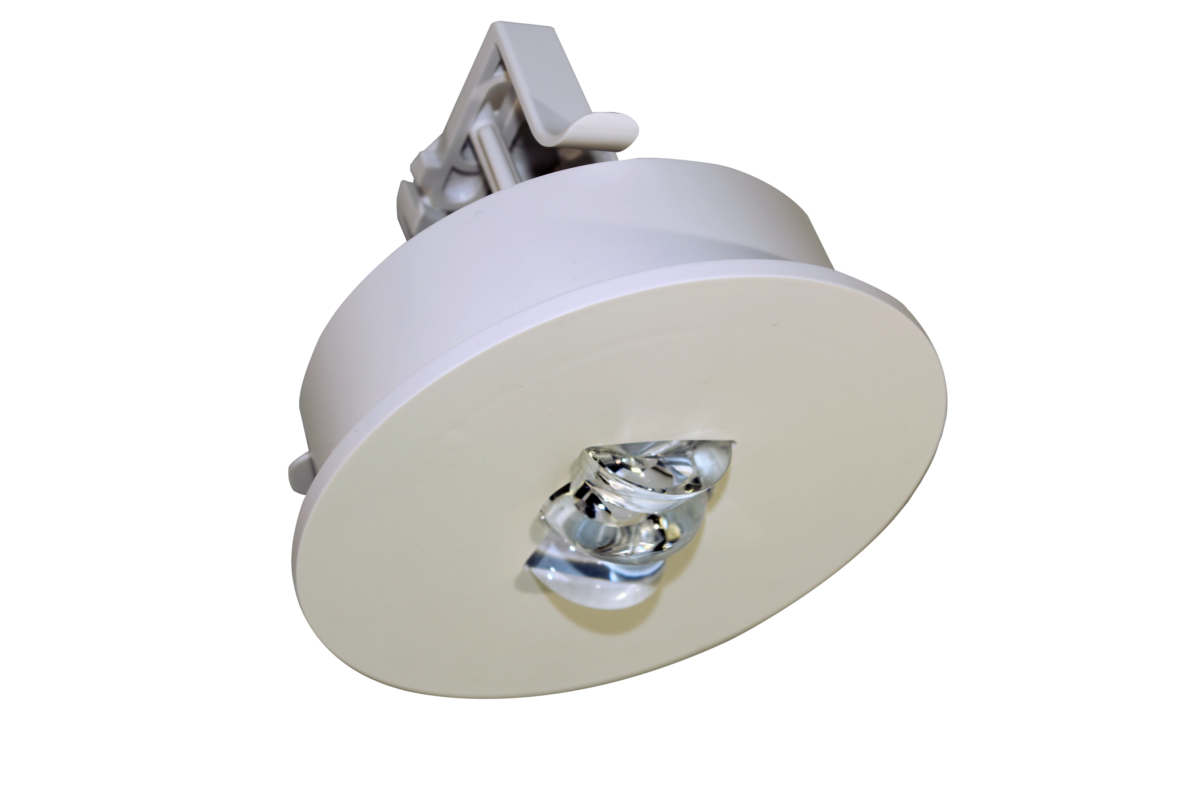

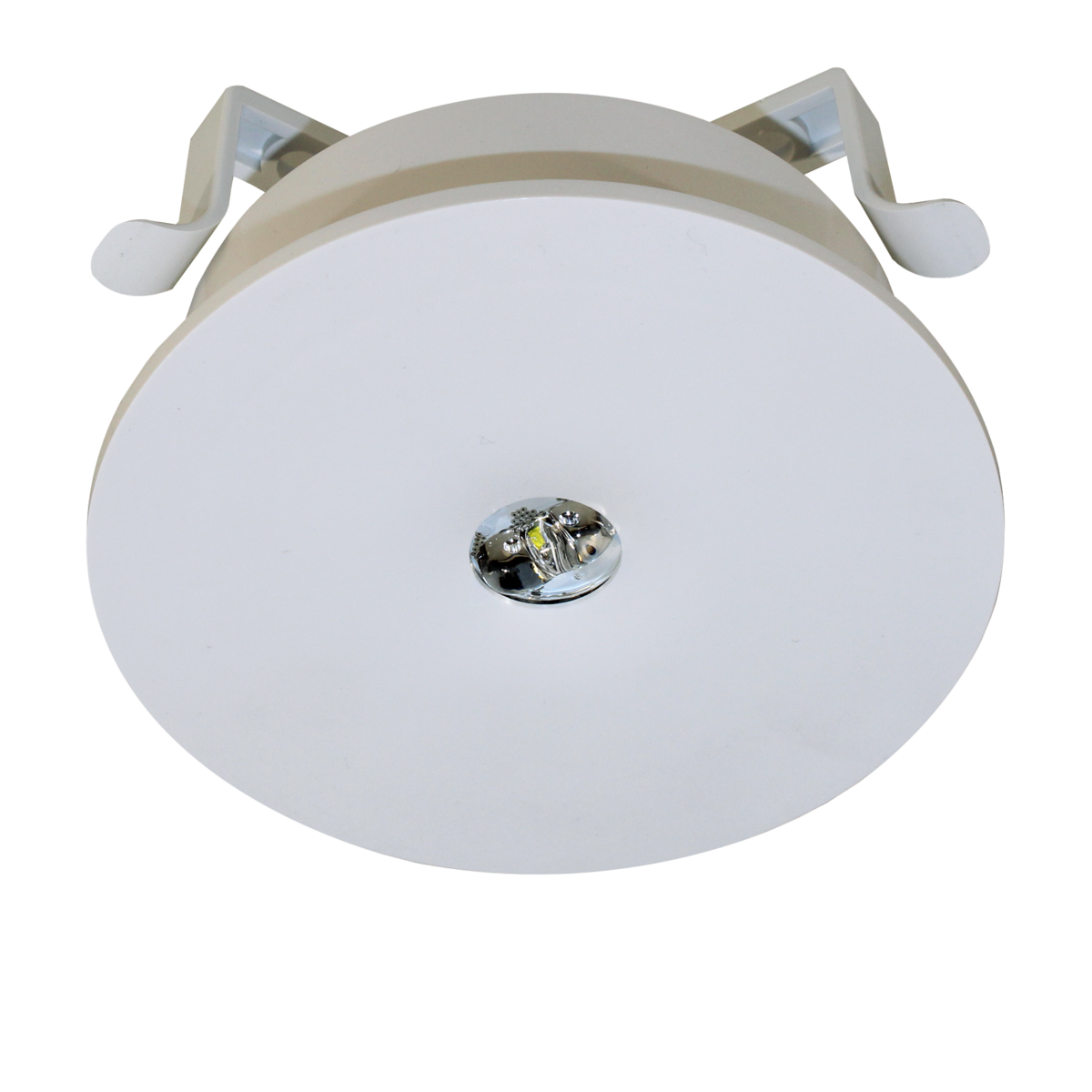

      M20 (CRH,RRH,HRH,SRH)

        The M20 LED emergency luminaire is a true all-rounder series of emergency lights. They are ready for almost all requirements and provide always the right solution. As many as four different lenses for different light distribution are available and make a perfect adaptation to the respective mounting situation possible. These units can be used in Recessed mount locations.

        The M20 LED emergency luminaire is a true all-rounder series of emergency lights. They are ready for almost all requirements and provide always the right solution. As many as four different lenses for different light distribution are available and make a perfect adaptation to the respective mounting situation possible. These units can be used in Recessed mount locations.

        Features

        • The discreet designed LED emergency luminaire M20 is a true all-rounder as it’s fit for most challenges and provides the right solution as Recessed mount.
        • Developed as per latest European Standards DIN EN 60598-1, DIN EN 60598-2-22 & EN 1838.
        • Four different lenses are available for different light distribution.
        • Well compatible for Corridor, Staircase & High Ceiling area mounting.
        • Complying EMC (Elector Magnetic Compatibility) & Immunity Requirement as per EN 61000 & EN 61547.

        Specifications

        Emergency Duration 3 hours
        Max. Consumption 4.6W LED
        Lumen Output 360lm
        Ambient Temperature  -5 °C up to +40 °C
        Ingress Protection Rating IP20
        Protection Class II
        Mounting Type Recessed
        Housing Polycarbonate, White
        RAL Code 9003

        Resources

        Download Catalog
