      X30UL

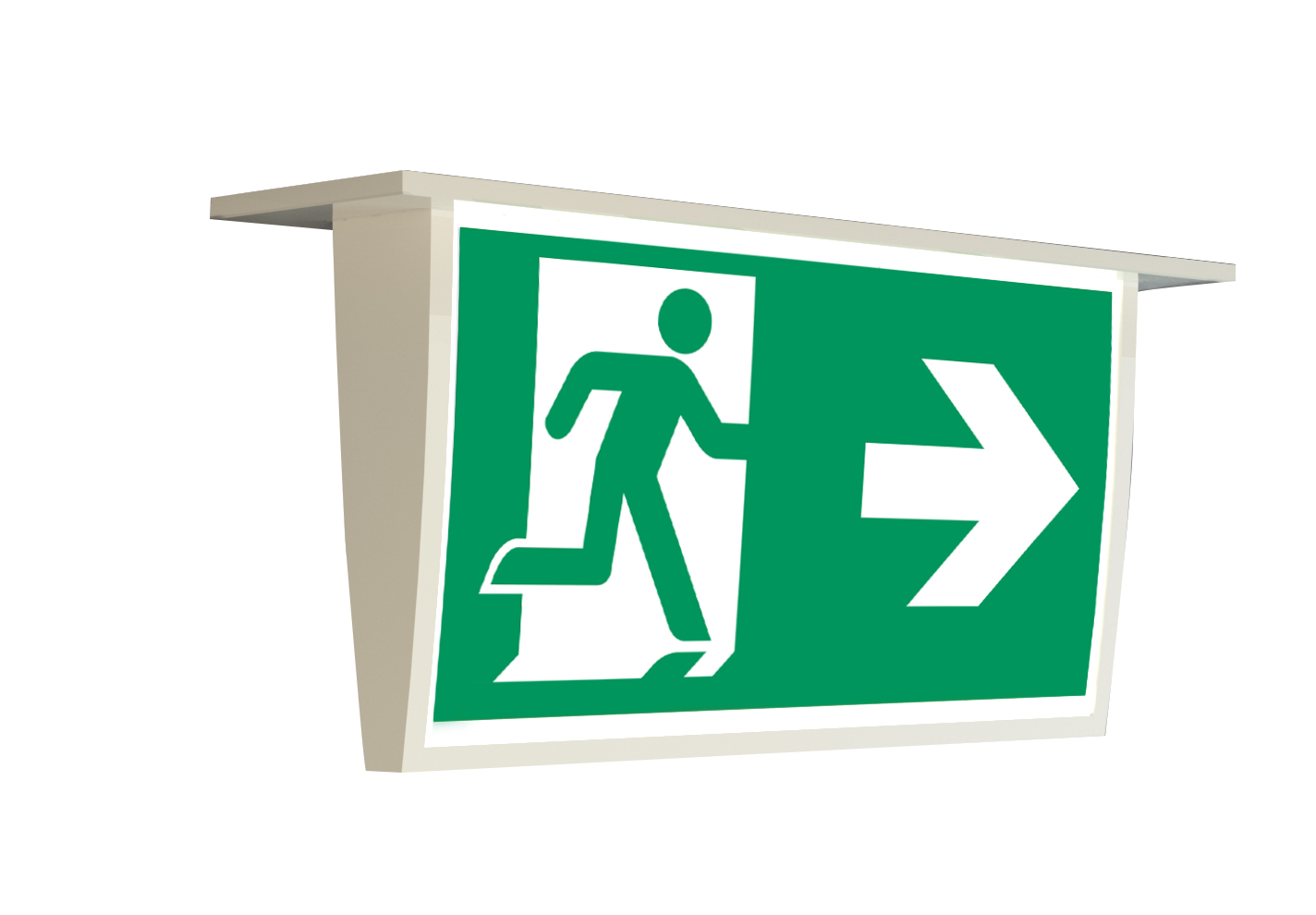

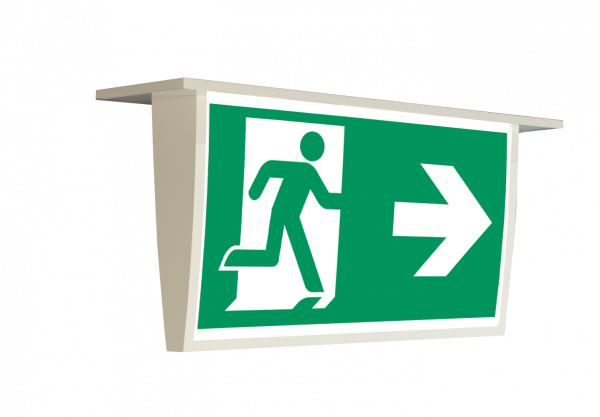

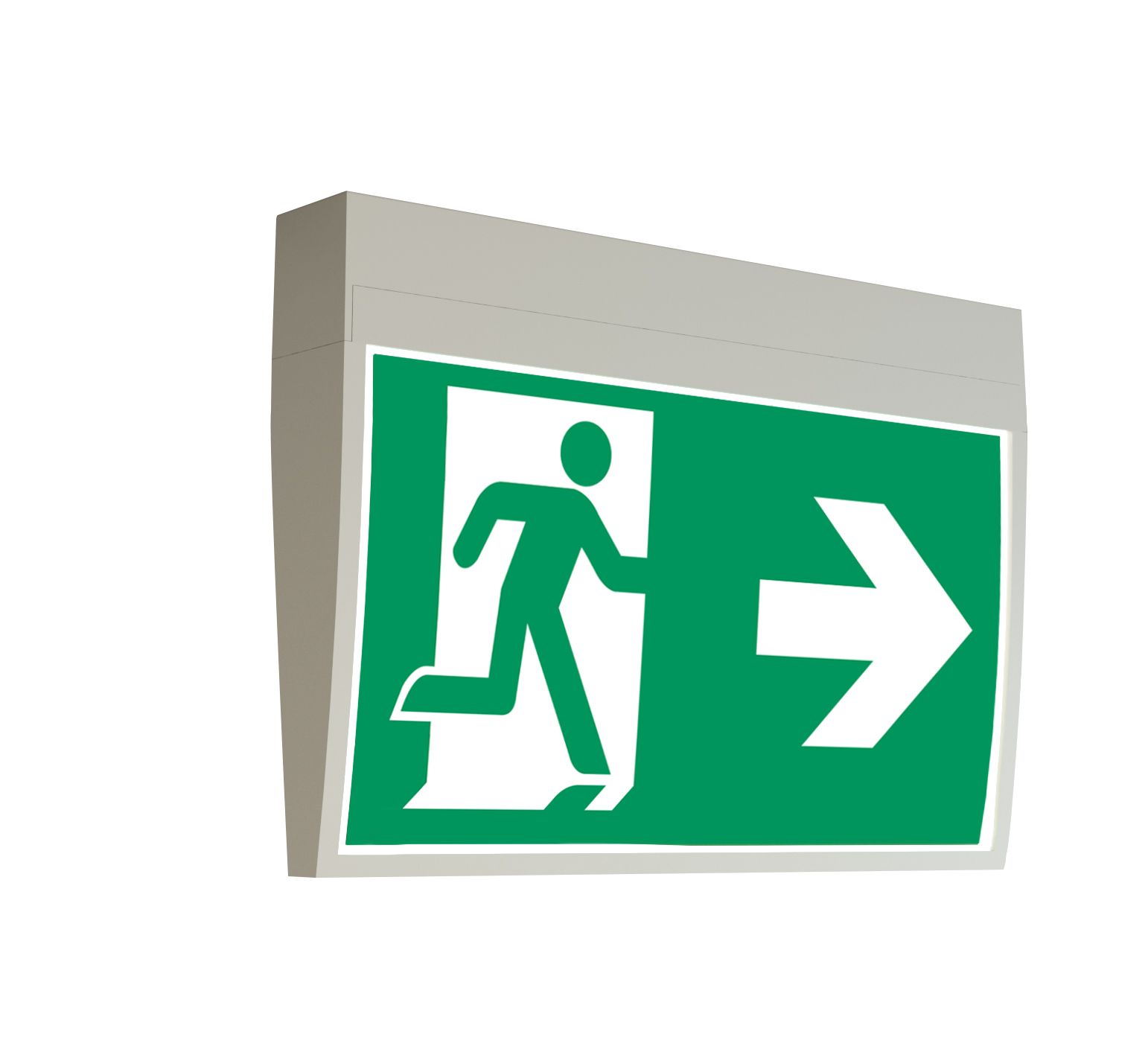

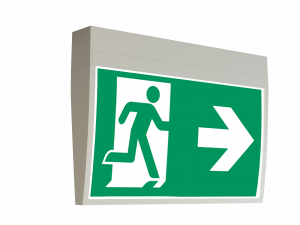

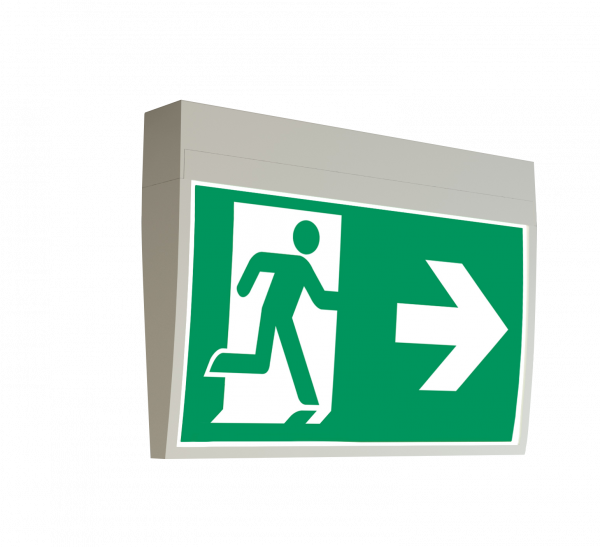

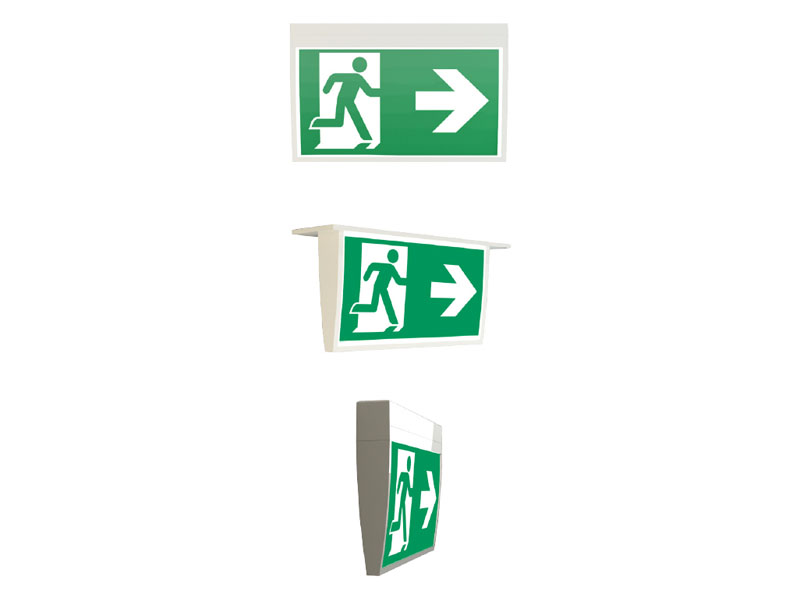

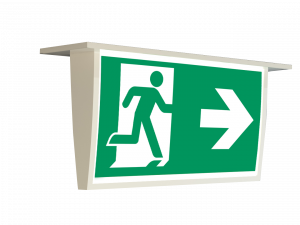

        Emergency sign luminaire in accordance to DIN EN 60598-1, DIN EN 60598-2-22 and DIN EN 1838. Slim, elegant, synthetic luminaire tilted towards the viewer, continuously symmetrically tapered towards the bottom. For universal mounting (wall/ceiling surface mount/integrated ceiling mount/brackets). For mounting convenience, the luminaire consists of only 3 parts. Tool free mountable on the quick assembly integrated ceiling mounting or wall mounting system. The luminaire has zero potential when dismantled. Suitable for continuous mode or stand-by mode. Reliable planning due to a tool free and variable, on-site use of the pictograms. Set of pictograms (left, right, bottom, neutral) is included in the scope of delivery. These luminaires are suitable for Parking, Above Exit Doors & Corridor Areas.

        Emergency sign luminaire in accordance to DIN EN 60598-1, DIN EN 60598-2-22 and DIN EN 1838. Slim, elegant, synthetic luminaire tilted towards the viewer, continuously symmetrically tapered towards the bottom. For universal mounting (wall/ceiling surface mount/integrated ceiling mount/brackets). For mounting convenience, the luminaire consists of only 3 parts. Tool free mountable on the quick assembly integrated ceiling mounting or wall mounting system. The luminaire has zero potential when dismantled. Suitable for continuous mode or stand-by mode. Reliable planning due to a tool free and variable, on-site use of the pictograms. Set of pictograms (left, right, bottom, neutral) is included in the scope of delivery. These luminaires are suitable for Parking, Above Exit Doors & Corridor Areas.

        Features

        • Slim, Elegant, Synthetic LED luminaire with Universal Mounting Option.
        • Developed in accordance with Latest European Standards DIN EN 60598-1, DIN EN 60598-2-22 and DIN EN 1838.
        • Well suitable for Corridor and Above Exit Door areas.
        • Glass Covered Exit legend with 4 Exit directions.
        • Complying EMC (Elector Magnetic Compatibility) & Immunity Requirement as per EN 61000 & EN 61547.

        Technical Data

        Emergency Duration 3 hours
        Max. Consumption 3.2W LED
        Ambient Temperature  -5 °C up to +40 °C
        Ingress Protection Rating IP43
        Protection Class II
        Mounting Type Universal
        Housing Polycarbonate, White
        RAL Code 9003





        Resources

        Download Catalog
