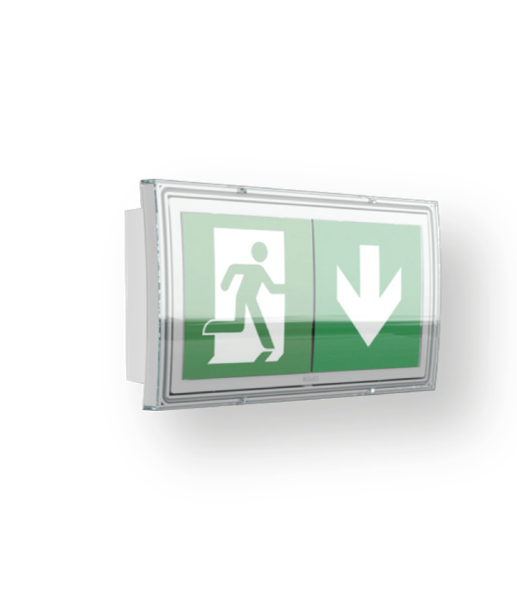

      X130SM

        LED Exit Luminaires are designed specifically for Wall/Surface Mount according to DIN EN 60598-1, DIN EN 60598-2-22 and DIN EN 1838. Housing of the Luminaire is made up with Polycarbonate Material specifically for Outdoor use.

        LED Exit Luminaires are designed specifically for Wall/Surface Mount according to DIN EN 60598-1, DIN EN 60598-2-22 and DIN EN 1838. Housing of the Luminaire is made up with Polycarbonate Material specifically for Outdoor use.

        Features

        • Polycarbonate LED exit sign with convex shaped hood for ceiling or wall mounting.
        • Low Power consumption.
        • Suitable for continuous or standby mode.
        • Levelling screws are integrated to compensate for uneven surfaces for ease of installation.
        • Developed In accordance to EN 60598-1, EN 60598-2-22, EN ISO 7010 and DIN EN 1838.
        • Single luminaire switching operation mode.
        • IP65 Weather proof protection.
        • IK6 Impact Resistance.

        Technical Specifications

        Luminaire type Exit sign
        Mounting Wall mounted
        Viewing Distance 20m
        Housing material Plastic
        Colour RAL 9003
        Mechanical rating IP 65
        Impact resistance IK 6
        Protection class 2
        Supply Central power supply system
        Monitoring ML – Central power supply system
        Operation time CPS
        Operation mode single luminaire switching
        Input Voltage AC 230 V
        Input Frequency Hz 50 / 60 Hz
        Input Voltage DC 216 V
        Power consumption max. 3.6 W
        Power consumption maintained 3.6 W
        Power consumption non-maintained 1.1 W
        Ambient temperature-maintained mode -20 ºC / 50 ºC
        Ambient temperature non-maintained mode -20 ºC / 50 ºC
        Length 65 mm
        Width 236 mm
        Height 136 mm
        Weight 0.67 kg
        Weight incl. Packaging 0.67 kg
        Connection cross-section 2.5 mm
        Switching input L’ Yes
        Emergency light blocking No
        Battery connector None
        Dimming function Yes
