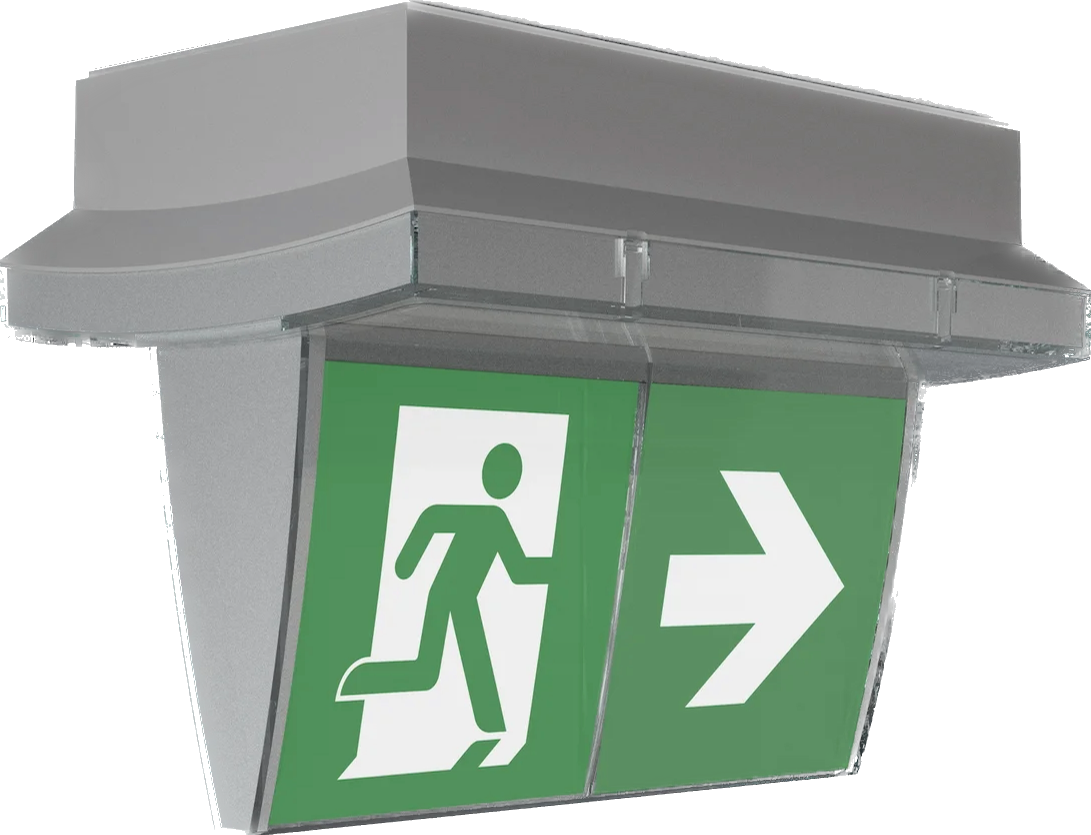

      X130HM

        LED Hanging Mount Exit Luminaires are designed according to DIN EN 60598-1, DIN EN 60598-2-22 and DIN EN 1838 Housing of the Luminaire is made up with Polycarbonate Material specifically for High Ceiling or Parking Areas.

        LED Hanging Mount Exit Luminaires are designed according to DIN EN 60598-1, DIN EN 60598-2-22 and DIN EN 1838 Housing of the Luminaire is made up with Polycarbonate Material specifically for High Ceiling or Parking Areas.

        Features

        • Polycarbonate LED exit sign with convex shaped hood for ceiling or wall mounting.
        • Low Power consumption.
        • Suitable for continuous or standby mode.
        • Levelling screws are integrated to compensate for uneven surfaces for ease of installation.
        • Developed In accordance to EN 60598-1, EN 60598-2-22, EN ISO 7010 and DIN EN 1838.
        • Single luminaire switching operation mode.
        • IP65 Weather proof protection.
        • IK3 Impact Resistance.

        Technical Specifications

        Luminaire type Exit sign
        Mounting Ceiling mounted
        Viewing Distance 20m
        Pictograph Set
        Housing material Plastic
        Colour RAL 9003
        Mechanical rating IP 65
        Impact resistance IK ≥ 3
        Protection class 2
        Supply Central power supply system
        Monitoring ML – Central power supply system
        Operation time CPS
        Operation mode single luminaire switching
        Input Voltage AC 230 V
        Input Frequency Hz 50 / 60 Hz
        Input Voltage DC 216 V
        Power consumption max. 3.6 W
        Power consumption maintained 3.6 W
        Power consumption non-maintained 1.1 W
        Ambient temperature-maintained mode -20 ºC / 50 ºC
        Ambient temperature non-maintained mode -20 ºC / 50 ºC
        Length 168 mm
        Width 236 mm
        Height 136 mm
        Weight 0.87 kg
        Weight incl. Packaging 0.87 kg
        Connection cross-section 2.5 mm
        Switching input L’ Yes
        Emergency light blocking No
        Battery connector None
        Dimming function Yes
