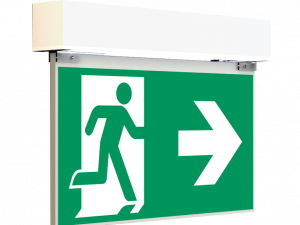

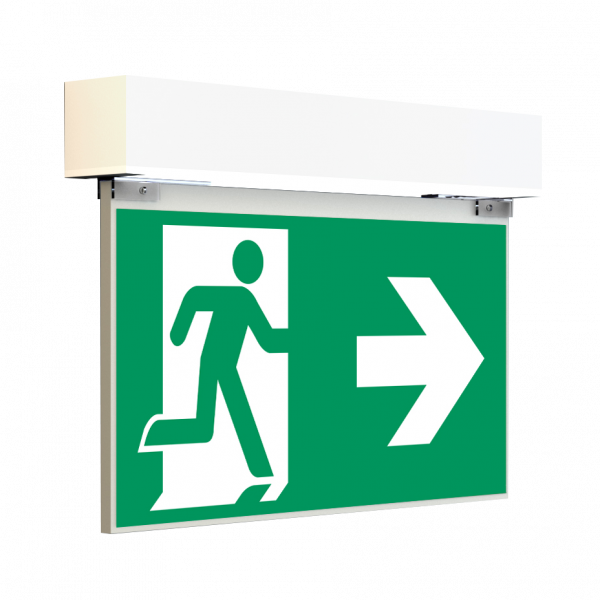

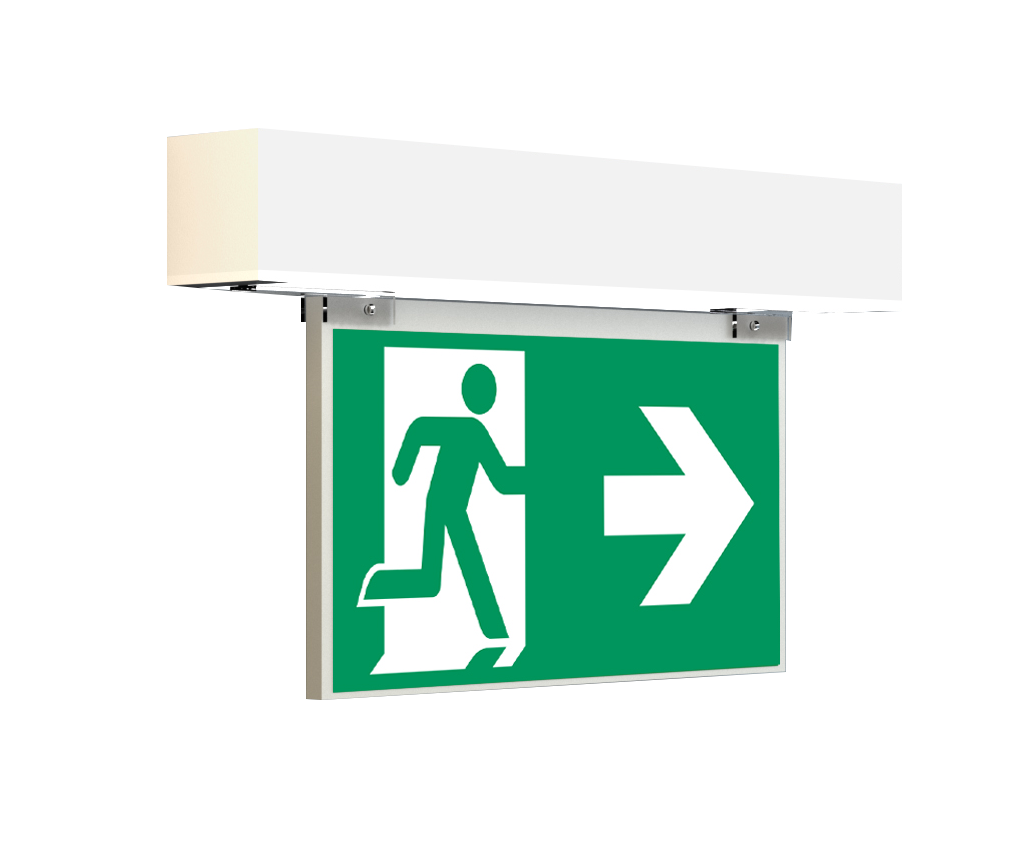

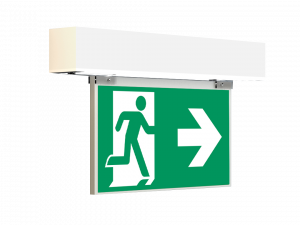

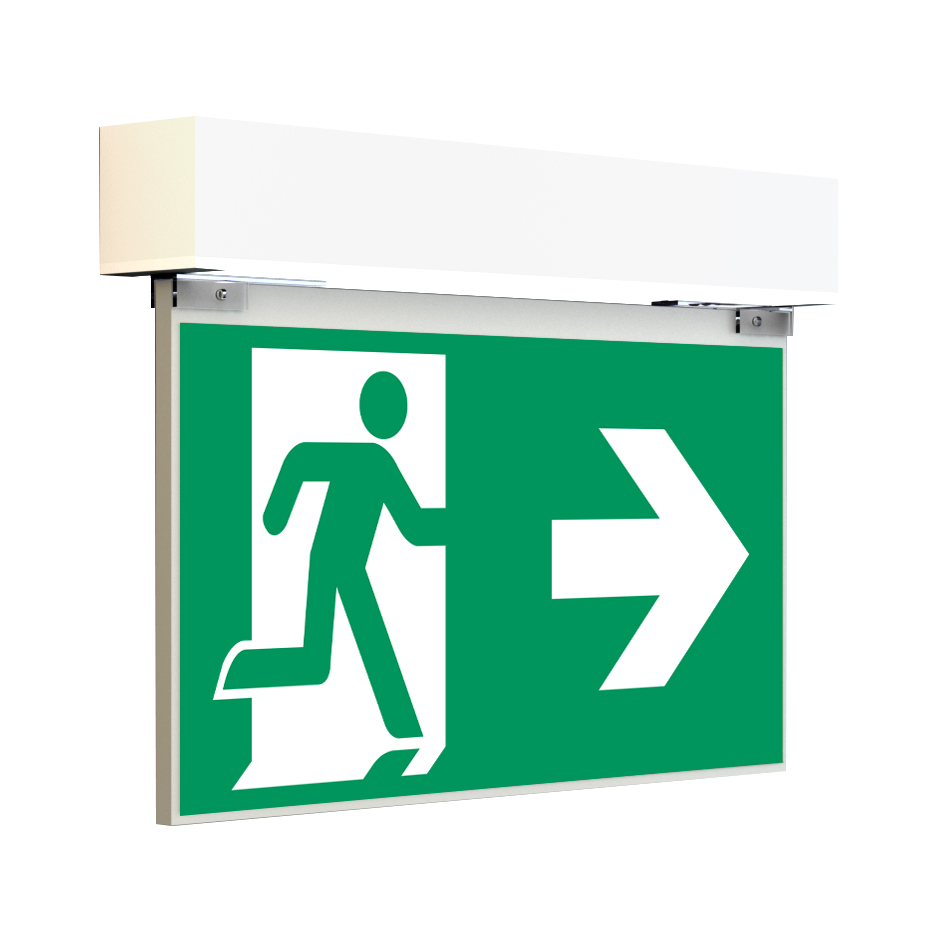

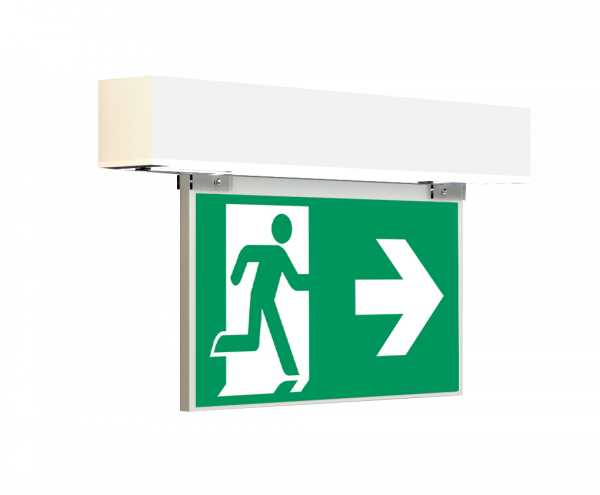

      X10UL

        LED exit sign according to DIN EN 60598-1, EN 60598-2-22, EN 7010 and DIN EN 1838. Cuboid Polycarbonate housing, discreetly reduced on the significant in design lamp. Modular design and universal mounting for use as exit luminaire with the application of pictograms. These luminaires are suitable for Parking, Above Exit Doors & Corridor Areas.

        LED exit sign according to DIN EN 60598-1, EN 60598-2-22, EN 7010 and DIN EN 1838. Cuboid Polycarbonate housing, discreetly reduced on the significant in design lamp. Modular design and universal mounting for use as exit luminaire with the application of pictograms. These luminaires are suitable for Parking, Above Exit Doors & Corridor Areas.

        Features

        • Cuboid Polycarbonate housing LED Luminaire with Elegant design.
        • Developed in accordance with Latest European Standard DIN EN 60598-1, EN 60598-2-22, EN 7010 and DIN EN 1838.
        • Modular Design and Universal Mounting Option.
        • Well compatible for Cold storage area.
        • IP64 Weather Proof Protection.
        • Optimal Viewing Distance.

        Technical Specifications

        Emergency Duration 3 hours
        Max. Consumption 5.2W LED
        Lumen Output 340lm
        Ambient Temperature  -30 °C up to +40 °C
        Ingress Protection Rating IP64
        Protection Class II
        Mounting Type Universal
        Housing Polycarbonate, White
        RAL Code 9003
