Sounder Control Module

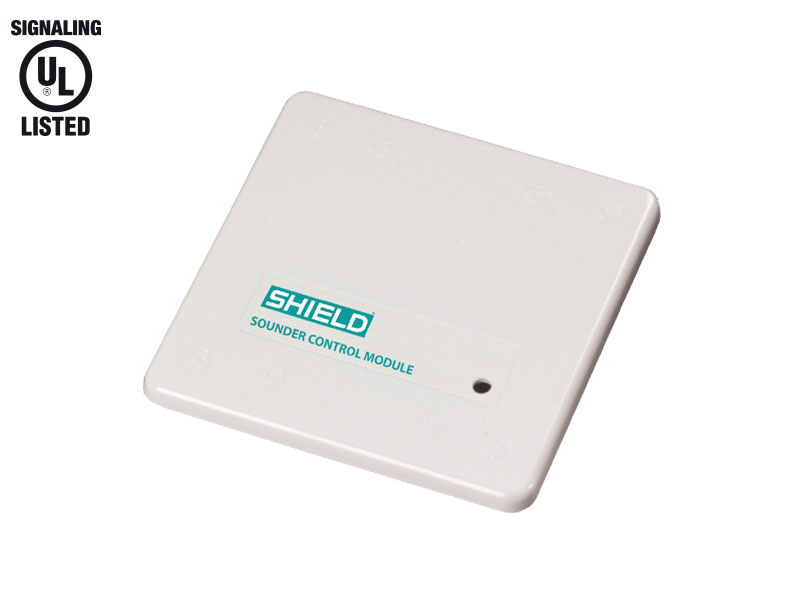

SHIELD Sounder Control Module monitors and controls the operation of a zone of conventional sounders and reports their status to the control panel.

SHIELD Sounder Control Module monitors and controls the operation of a zone of conventional sounders and reports their status to the control panel.

Features

Allows sounders to be operated continuously or be pulsed, 1 second on, 1 second off
May be synchronized when in pulsed operation
Can also be used for public address speakers

Specification

Type	Sounder Control Module
Style	Fascia Plate With Wiring Terminals
Temperature Range	0°C to 49°C
Wiring Size	24 AWG – 14 AWG
Signal Line Circuit (SLC)	Supervised Power Limited
Working Voltage	17 – 28 V DC
Modulation Voltage	5 – 9 V DC (peak to peak)
Operating Current	Supervisory Current	1.3 mA
	Surge Current	7.5 mA
	Maximum Alarm Current	4 mA (LED on)
Functional States	Analog Level (normal)	16
Functional States	Analog Level (trouble)	4
Dimensions (L x W x D)	114 mm x 114 mm x 25 mm
