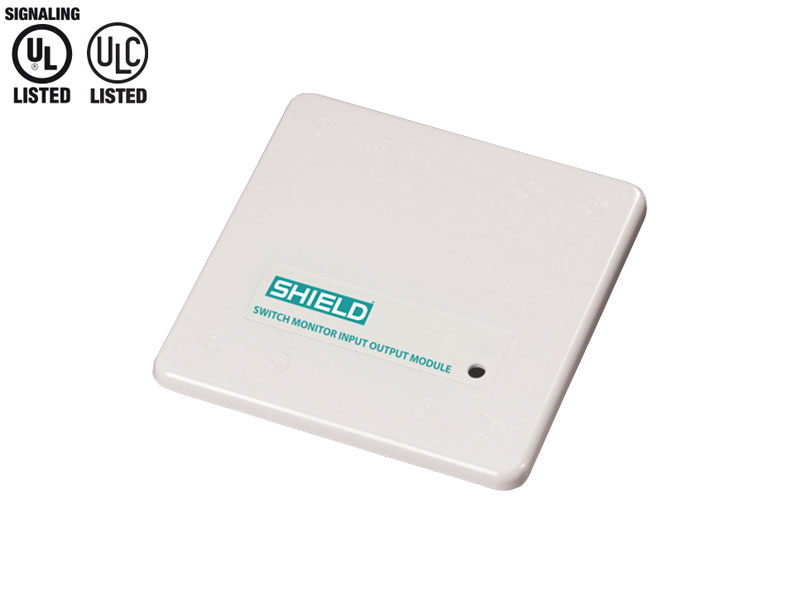

SHIELD Switch Monitor Input/Output Module provides a voltage free, single pole, change-over relay output, a single, monitored switch input and unmonitored, non-polarized optocoupled input.
| Type | Switch Monitor Input/Output Module | |
|---|---|---|
| Style | Fascia Plate With Wiring Terminals | |
| Temperature Range | 0°C to 49°C | |
| Wiring Size | 24 AWG – 14 AWG | |
| Signal Line Circuit (SLC) | Supervised Power Limited | |
| Working Voltage | 17 – 28 V DC | |
| Modulation Voltage | 5 – 9 V DC (peak to peak) | |
| Operating Current | Supervisory Current | 2.5 mA |
| Surge Current | 7.5 mA | |
| Maximum Alarm Current | 6.0 mA (LED on) | |
| Functional States | Analog Level (normal) | 16 |
| Analog Level (alarm)) | 64 | |
| Analog Level (trouble) | 4 | |
| Dimensions (L x W x D) | 114 mm x 114 mm x 25 mm | |
 |
