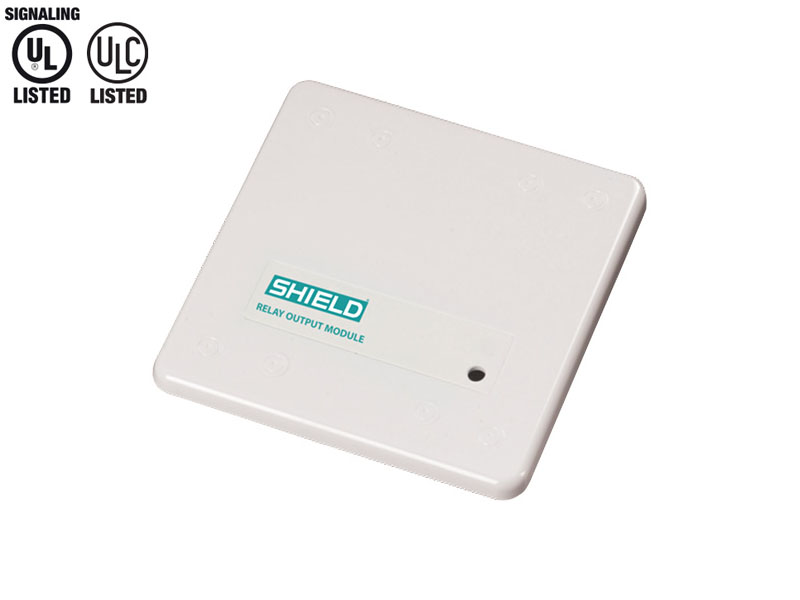

Relay Output Module
SHIELD Relay Output Module provides a single 2-pole changeover relay.
Features
- Loop-powered
- Can be placed anywhere on loop
Specification
| Type | Relay Output Module | |
|---|---|---|
| Style | Fascia Plate With Wiring Terminals | |
| Temperature Range | 0°C to 49°C | |
| Wiring Size | 24 AWG – 14 AWG | |
| Signal Line Circuit (SLC) | Supervised Power Limited | |
| Working Voltage | 17 – 28 V DC | |
| Modulation Voltage | 5 – 9 V DC (peak to peak) | |
| Operating Current | Supervisory Current | 0.85 mA |
| Surge Current | 2.50 mA | |
| Maximum Alarm Current | 3.50 mA (LED on | |
| Functional States | Analog Level (normal) | 16 |
| Relay Output | Non Supervised, Dry Contact 24 V DC, 2 A; 30 V DC, 0.5 A |
|
| Dimensions (L x W x D) | 114 mm x 114 mm x 25 mm | |
