      SD-P2LF

        Glycerine filled with stainless steel case and brass internals for adverse service conditions.

        MODEL SD-P2LF Pressure Gauges are specifically designed for Fire Sprinkler Services. It has corrosion resistant polished stainless steel case and copper alloy wetted parts. The dial has pressure reading in KPa and PSI. This pressure gauges are vibration and shock resistant.

        The pressure gauge must be mounted by square provided for spanner grip on the socket and not by turning the case. Turning of case will damage the gauge. Use PTFE tape around male threads of the gauge for sealing. Pressure gauge must be isolated with valve or cock. The pressure gauge must be handled with due care.

        For best results, the storage as well as any further shipment be made in original packing only. The pressure gauge, which is visibly damaged, should not be installed. It is recommended that the pressure gauges must be inspected regularly for possible corrosion or damage. The gauge must be periodically calibrated as per requirement or as per local authority having jurisdiction.

        Technical Data

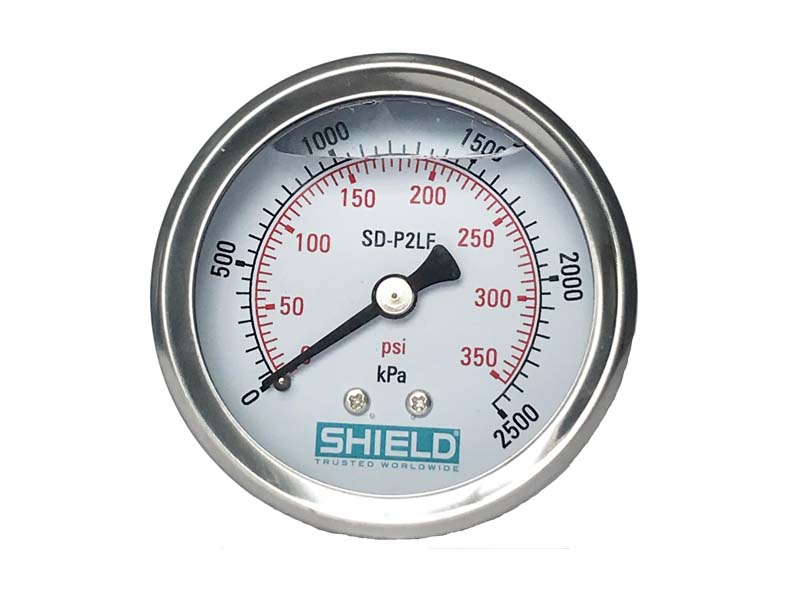

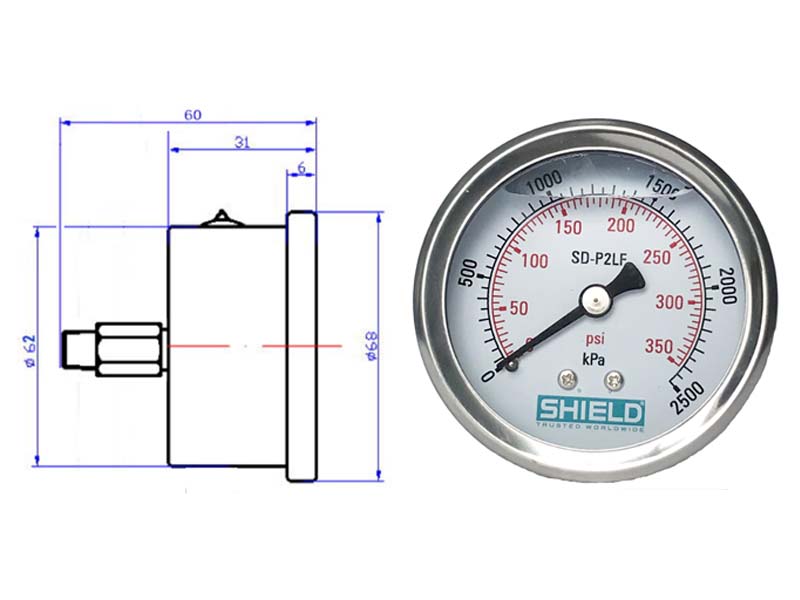

        Pressure Gauge 63mm SDP2LF w/ Center Back Mounting

        DIAL SIZE 63 MM (2.5 INCH)
        CONNECTION 1/4″ or 1/8″ NPT, BSPT, BSP etc…
        RANGE 0 – 2500 Kpa
        WETTED PARTS Copper Alloy
        DIAL TYPE White background black graduation scale with dial reading in KPa and Psi
        CASE AND BAZEL Stainless Steel,
        Glycerine Filled
        MOUNTING Central/Rear Mounting
        ACCURACY ± 1.6 % of Span (ASME B 40.100 Grade A)
        DESIGN ASME B 40.100 Grade
        & EN 837-1
        REFERENCE STANDARD NFPA 13
        ORDERING INFORMATION Specify connection & model Lower/Bottom mounting or Central/Rear mounting to be specified at the time of order.

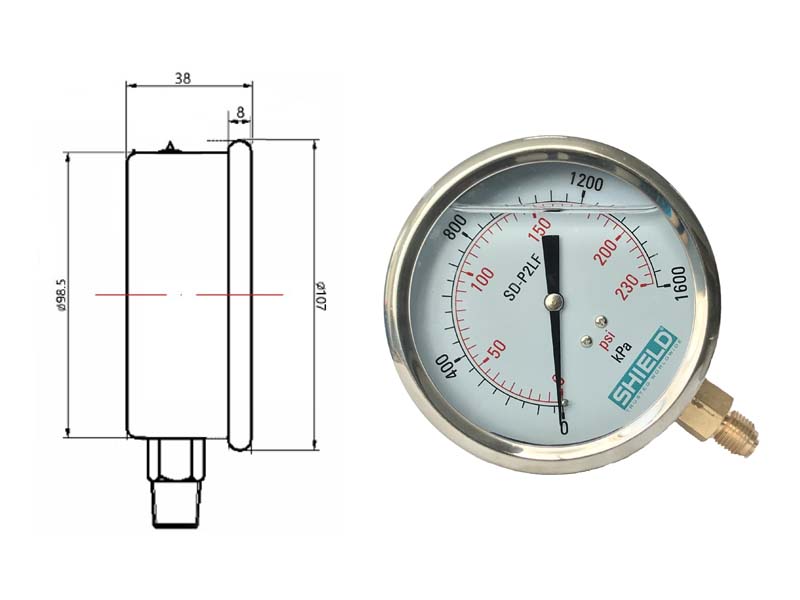

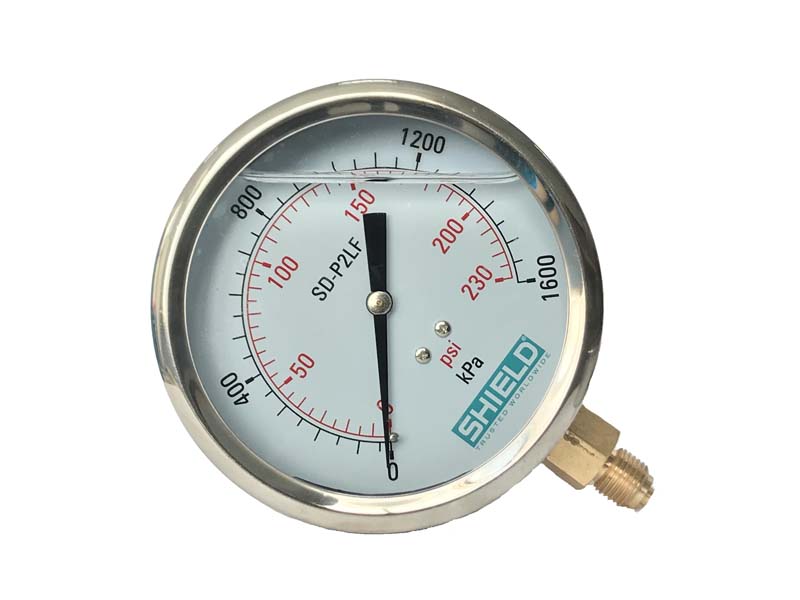

        Pressure Gauge 100mm SDP2LF w/ Lower Mounting

        DIAL SIZE 100 MM (4 INCH)
        CONNECTION 1/4″ or 1/8″ NPT, BSPT, BSP etc…
        RANGE 0 – 2500 Kpa
        WETTED PARTS Copper Alloy
        DIAL TYPE White background black graduation scale with dial reading in KPa and Psi
        CASE AND BAZEL Stainless Steel,
        Glycerine Filled
        MOUNTING Lower/Bottom Mounting
        ACCURACY ± 1.6 % of Span (ASME B 40.100 Grade A)
        DESIGN ASME B 40.100 Grade
        & EN 837-1
        REFERENCE STANDARD NFPA 13
        ORDERING INFORMATION Specify connection & model Lower/Bottom mounting or Central mounting to be specified at the time of order.

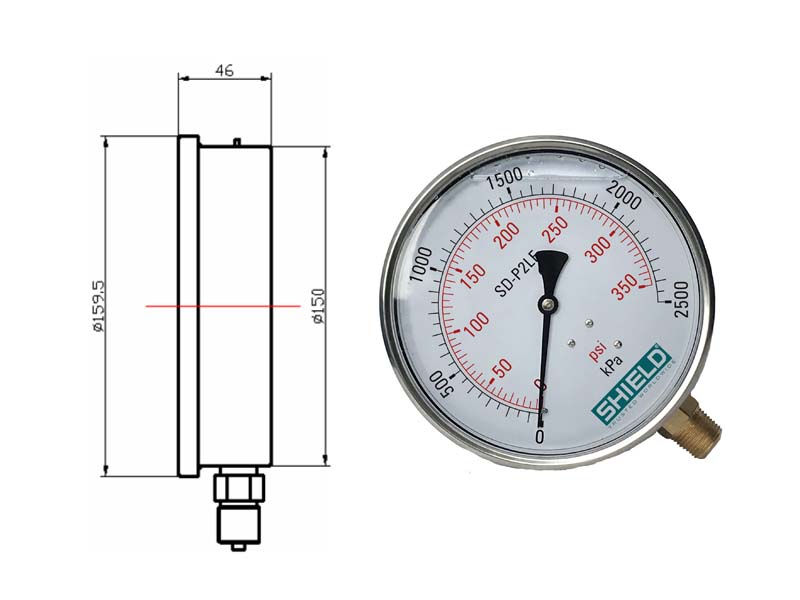

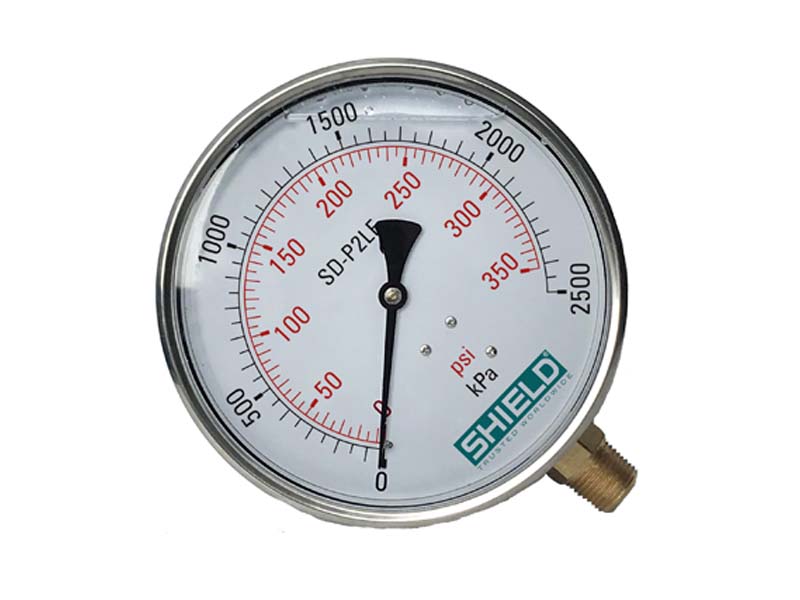

        Pressure Gauge 150mm SDP2LF w/ Lower Mounting

        DIAL SIZE 150 MM (6 INCH)
        CONNECTION 1/4″ or 3/8″ or 1/2″ NPT, BSPT, BSP etc…
        RANGE 0 – 2500 Kpa
        WETTED PARTS Copper Alloy
        DIAL TYPE White background black graduation scale with dial reading in KPa and Psi
        CASE AND BAZEL Stainless Steel,
        Glycerine Filled
        MOUNTING Lower/Bottom Mounting
        ACCURACY ± 1.6 % of Span
        DESIGN ASME B 40.100 Grade
        & EN 837-1
        REFERENCE STANDARD NFPA 13
        ORDERING INFORMATION Specify connection & model Lower/Bottom mounting or Central/Rear mounting to be specified at the time of order.
