      SD-P2AF

        Non-fillable type with black steel case and brass internals for adverse service conditions.

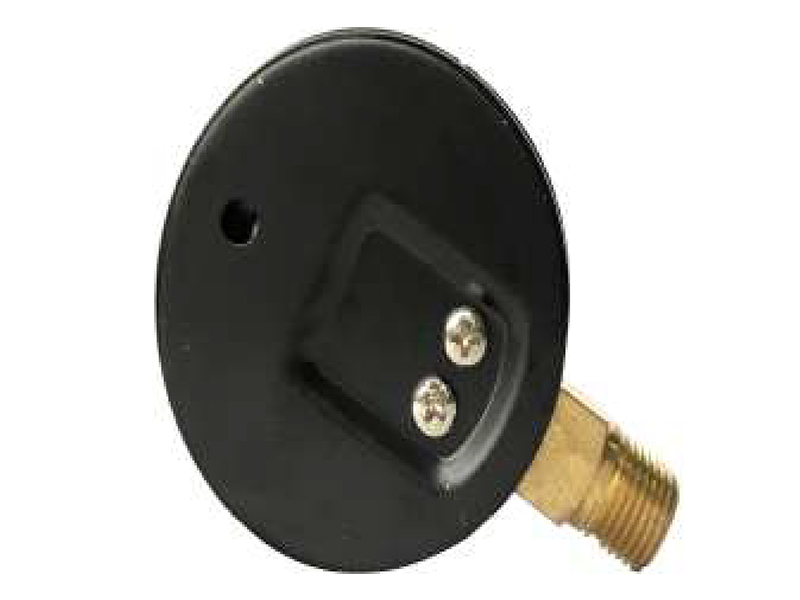

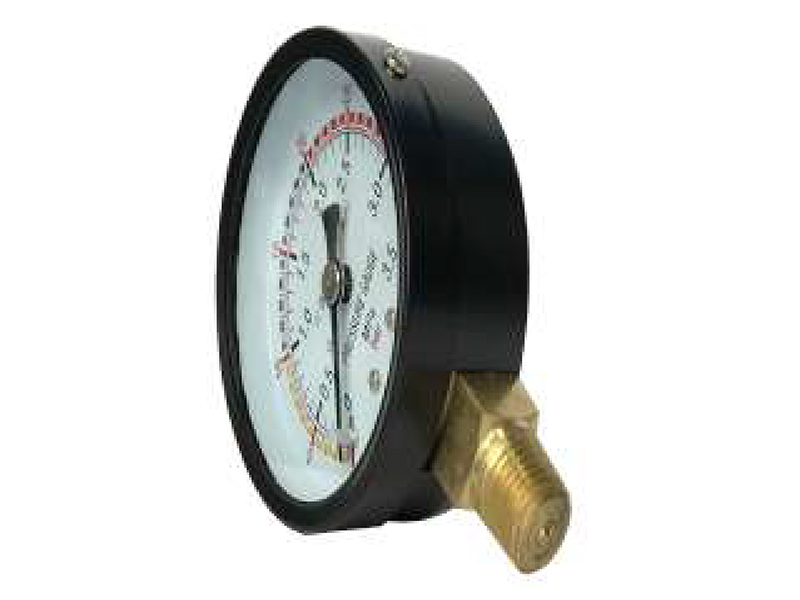

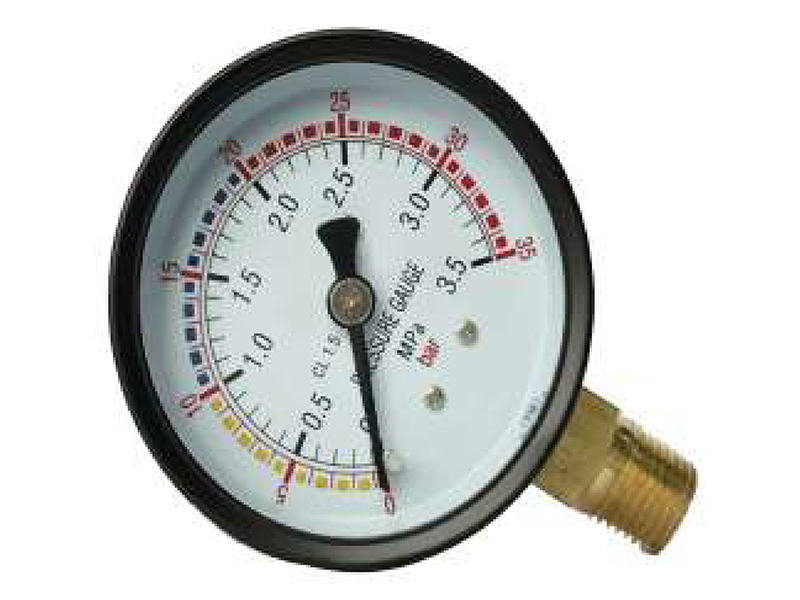

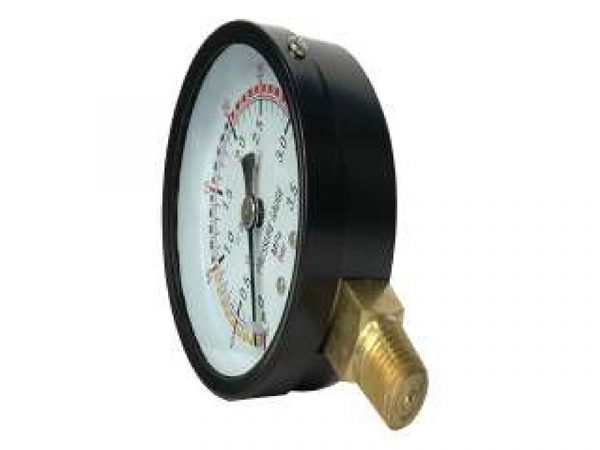

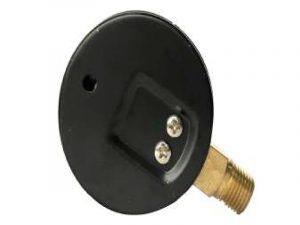

        MODEL SD-P2A F Pressure Gauges are specifically designed for Fire Sprinkler Services. It has corrosion resistant polished Black steel case and Brass wetted parts. The dial has pressure reading in KPa and PSI. The gauge dial size is 63 mm & 1 0 0 .m m. This pressure gauges are vibration and shock resistant.

        The pressure gauge must be mounted by square provided for spanner grip on the socket and not by turning the case. Turning of case will damage the gauge. Use PTFE tape around male threads of the gauge for sealing. Pressure gauge must be isolated with valve or cock. The pressure gauge must be handled with due care.

        For best results, the storage as well as any further shipment be made in original packing only. The pressure gauge, which is visibly damaged, should not be installed. It is recommended that the pressure gauges must
        be inspected regularly for possible corrosion or damage. The gauge must be periodically calibrated as per requirement or as per local authority having jurisdiction.

        Technical Data

        MODEL SD-P2AF
        DIAL SIZE 63 MM (2.5 INCH)
        100 MM (4 INCH)
        CONNECTION 1⁄4″ BSP Male
        RANGE 0 – 1600 KPa
        0 – 2500 KPa
        BOURDON TUBE & WETTED PARTS Brass
        DIAL TYPE White background black graduation scale with dial reading in KPa and Psi
        CASE AND BAZEL Black Steel Case, Non-Fillable Type
        MOUNTING Back Connection
        ACCURACY ± 1.6 % of Span
        (ASME B 40.100 Grade A)
        DESIGN ASME B 40.100 Grade & EN 837-1
        REFERENCE STANDARD NFPA 13
        ORDERING INFORMATION Specify Connection & Model

        Scale Range

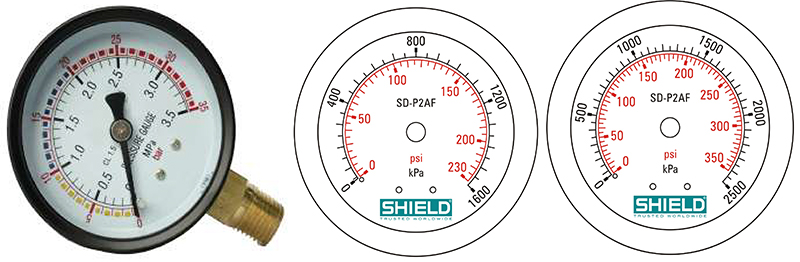

        DESCRIPTION SCALE RANGE
        Diameter: 2.5″ (63 mm)
        Case: Black Steel
        Connection: Brass
        Bottom Connection
        Thread: ¼” BSP Male
        Non-Fillable Type
        Pressure Range: As Request        		 0 – 1600 Kpa 0 – 2500 Kpa

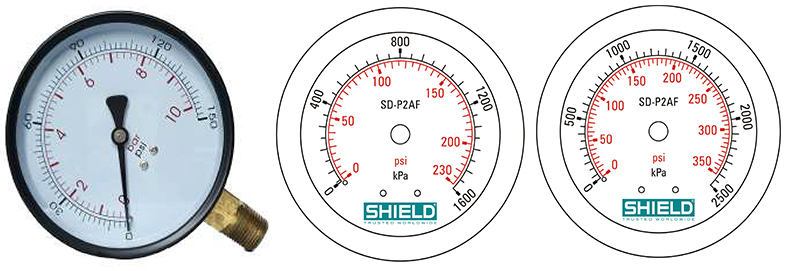

        DESCRIPTION SCALE RANGE
        Diameter: 4″ (100 mm)
        Case: Black Steel
        Connection: Brass
        Bottom Connection
        Thread: ¼” BSP Male
        Non-Fillable Type
        Pressure Range: As Request        		 0 – 1600 Kpa 0 – 2500 Kpa
