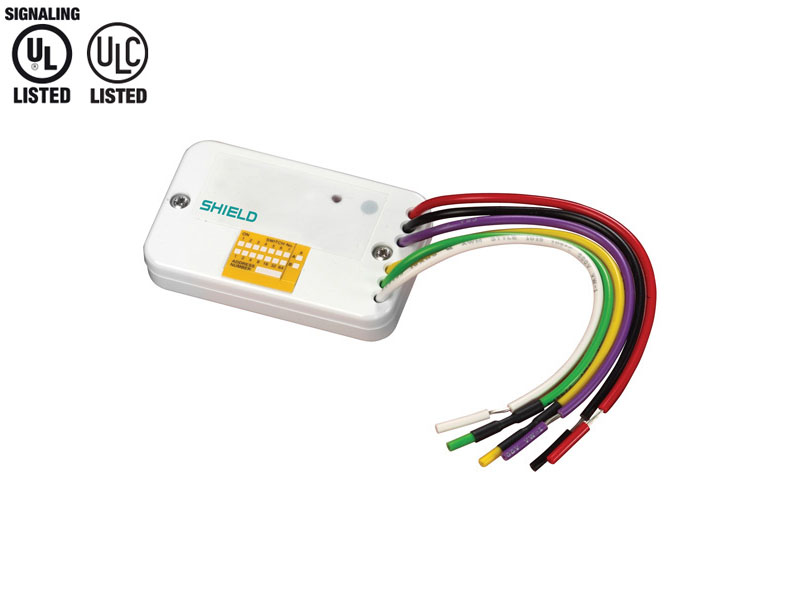

SHIELD Mini Switch Monitor Module is designed to monitor the state of one or more single pole, voltage free contacts and to report the status to compatible analog control equipment.
| Type | Mini Switch Monitor Module | |
|---|---|---|
| Style | Fascia Plate With Wiring Terminals | |
| Temperature Range | 0°C to 49°C | |
| Signal Line Circuit (SLC) | Supervised Power Limited | |
| Working Voltage | 17 – 28 V DC | |
| Modulation Voltage | 5 – 9 V DC (peak to peak) | |
| Operating Current | Supervisory Current | 1.1 mA |
| Surge Current | 2.5 mA | |
| Maximum Alarm Current | 5 mA | |
| Functional States | Analog Level (normal) | 16 |
| Analog Level (alarm) | 64 | |
| Analog Level (trouble) | 4 | |
| Dimensions (L x W x D) | 76 mm x 50 mm x 12.5 mm | |
 |
