RadioLINK Panel Interface Module

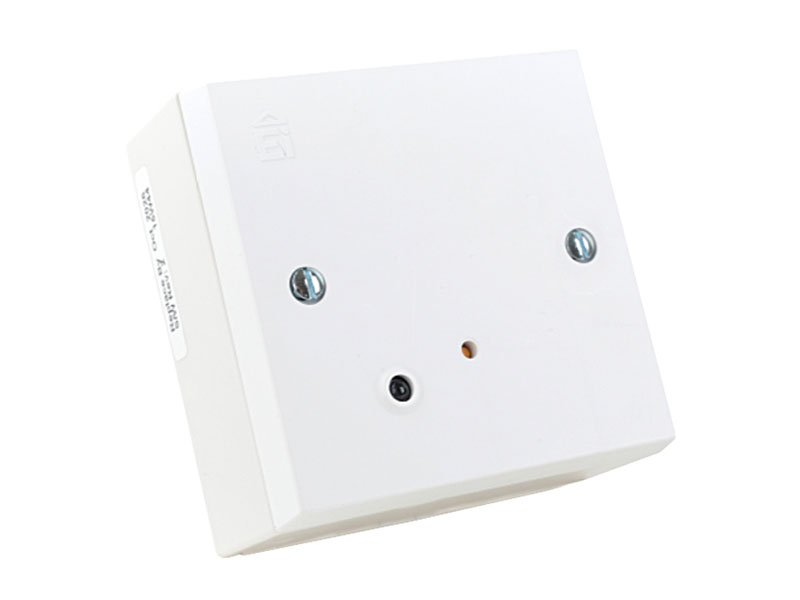

The Ei413 is a RadioLINK Panel Interface Module that provides an interface between RadioLINK Alarms and Devices and Fire Alarm/ Security Alarm panels.

The Panel Interface Module will decode Fire, CO and Fault signals from RadioLINK devices and activate the relevant onboard relay contacts. The relays are wired to the input contacts on the panel which will take the appropiate action.

When the Normally Open contacts (or DC Voltage input) are activated (from the panel) the Ei413 will transmit a RadioLINK signal to all Alarms in the system causing them to sound.

The Ei413 is powered either directly from the panel or from an external source (it requires a 11-30V DC power supply). It is designed to be remotely sited and comes complete in its own enclosure.

The Ei413 uses advanced transceiver and signal coding technology to ensure robust and reliable RF signalling. It also has a House Code feature that allows a system of RadioLINK Alarms and Devices to be coded together to prevent inteference with neighbouring systems.
