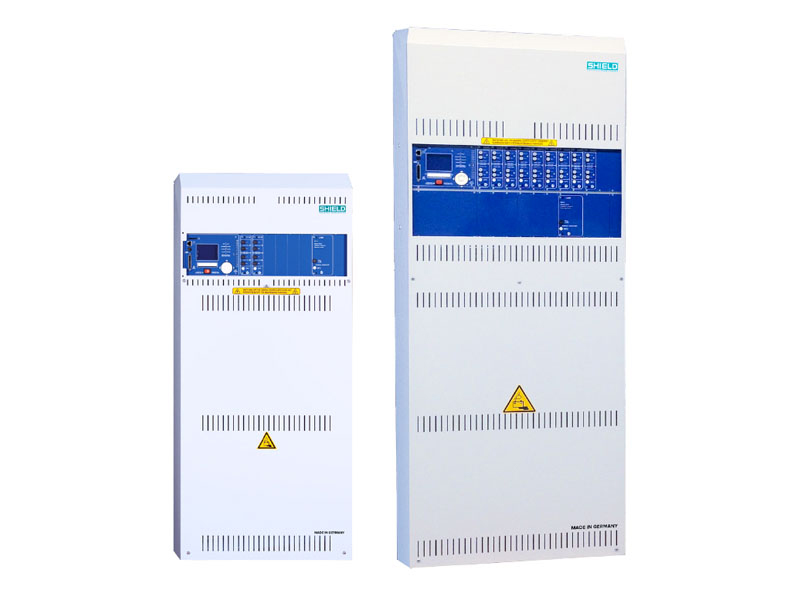

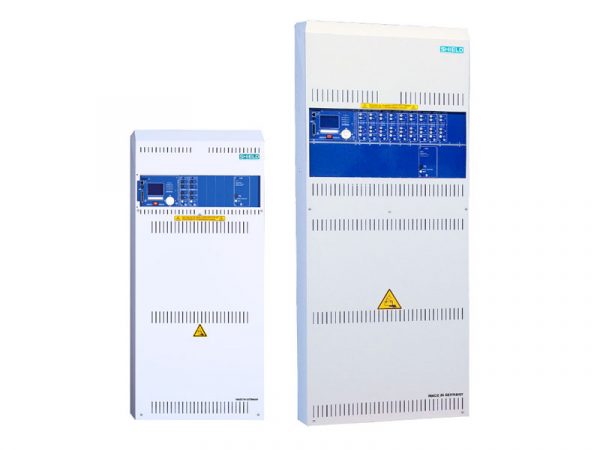

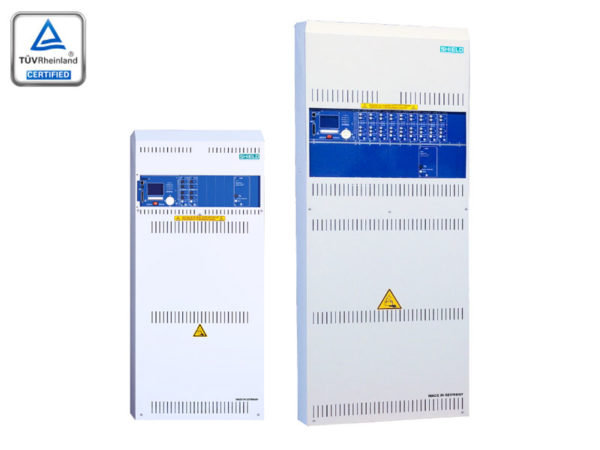

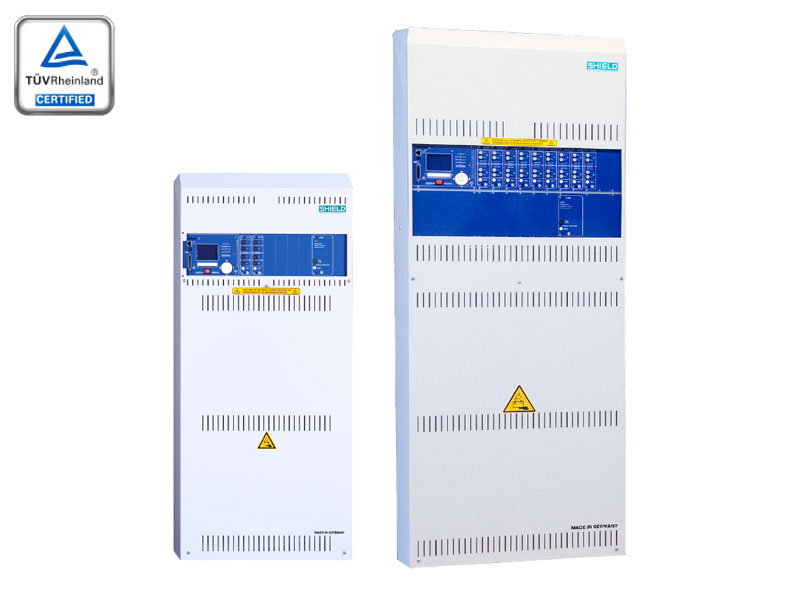

      MNXL Series Panel

        The Low Power System Shield – MN12 panel closes the gap between the smaller powered MC6 and MD32 series panels.

        MN12 series panels are decentralized power supply system with limited power for 3 hours operation. This system combines the high reliability of a decentralized single battery system with the ease and comfort of a central battery system.

        Through the principle of decentralization per fire compartment, similar to a single battery system, acc. to MLAR 2005 there will be no costs for E30-powerlines and their installation. The MN12 series panels works in switched mode 230V AC or 216V DC and can be equipped with up to 12 main circuits. One additional circuit is installed by default. This assures the possibility to connect conventional luminaires with electronic ballast and an input voltage of 230V AC/DC. In combination with our innovative LED luminaires energy efficiency, durability, and lighting improvements in all parts of the building can be optimized.

        The integrated browser-based visualization software makes the system capable to monitor all connected emergency and rescure route luminaires and report immediately in case of failure.

        A certified E30-cabinet is available as an option.

        The Low Power System Shield – MN12 panel closes the gap between the smaller powered MC6 and MD32 series panels.

        MN12 series panels are decentralized power supply system with limited power for 3 hours operation. This system combines the high reliability of a decentralized single battery system with the ease and comfort of a central battery system.

        Through the principle of decentralization per fire compartment, similar to a single battery system, acc. to MLAR 2005 there will be no costs for E30-powerlines and their installation. The MN12 series panels works in switched mode 230V AC or 216V DC and can be equipped with up to 12 main circuits. One additional circuit is installed by default. This assures the possibility to connect conventional luminaires with electronic ballast and an input voltage of 230V AC/DC. In combination with our innovative LED luminaires energy efficiency, durability, and lighting improvements in all parts of the building can be optimized.

        The integrated browser-based visualization software makes the system capable to monitor all connected emergency and rescure route luminaires and report immediately in case of failure.

        A certified E30-cabinet is available as an option.

        Features

        • Low power system acc. to DIN EN 50171 for security lighting systems acc. to DIN EN 50172 and systems acc. to DIN VDE 0100-718.
        • Automated monitoring system acc. to DIN EN 62034 for regular testing of all connected luminaires.
        • Max. 12 main circuits, as 650VA- (SCM32) module and one programmable circuit as maintained or non–maintained circuit with max. 150VA.
        • Management and failure monitoring for up to 20 luminaires per circuit.
        • Use of 230V AC /DC luminaires possible.
        • Independant system with combined switching for non-maintained, maintained and switched maintained luminaires.
        • Servicefriendly 19“ modular case.
        • Test records are stored for 5 years.
        • Different interface languages possible.
        • Information reports about the system, circuits and luminaires as plain text and Control-LED.
        • Connectivity for additional external modules like SDM24, SLM or SLCD via RS485 interface.
        • Up to 6 control inputs can be assigned to each circuit .
        • Networking of multible devices via Ethernet (TCP/IP).
        • Integrated Web – Server for remote maintenance of the system, visualization of floor plans and much more.
        • A lockable polycarbonate cover for the controls of the micro control is available as option to protect against unauthorized access.

        Technical Specifications

        Case material steel-sheet RAL 7035
        1100x500x230mm
        1470x571x230mm
        Protection category IP20
        Protection class I
        Voltage 230V AC 50Hz ± 10%
        Switched mode 230V AC / 216V DC ± 15%
        Battery (included) 216V DC (18 x 12V / 17Ah)
        Battery power
        (incl. 25% aging reserve)        		 3h: 2,32A / ~650W
        Permissible temp 216V DC 18 x 12V / 5.2Ah
        Battery power 0° to 35° C
        Max. connected load AC 2000 VA
        Max. connected load AC 500W (3 hour)
