      MC6 Series Panel

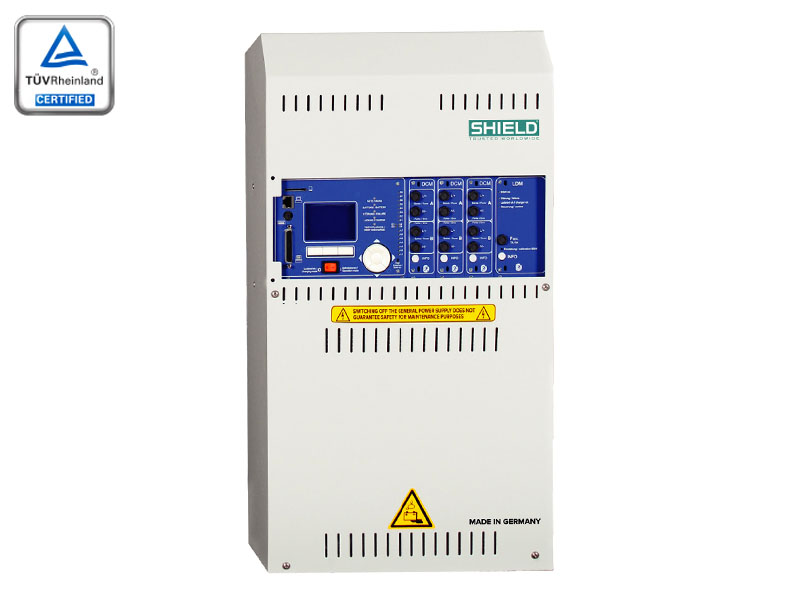

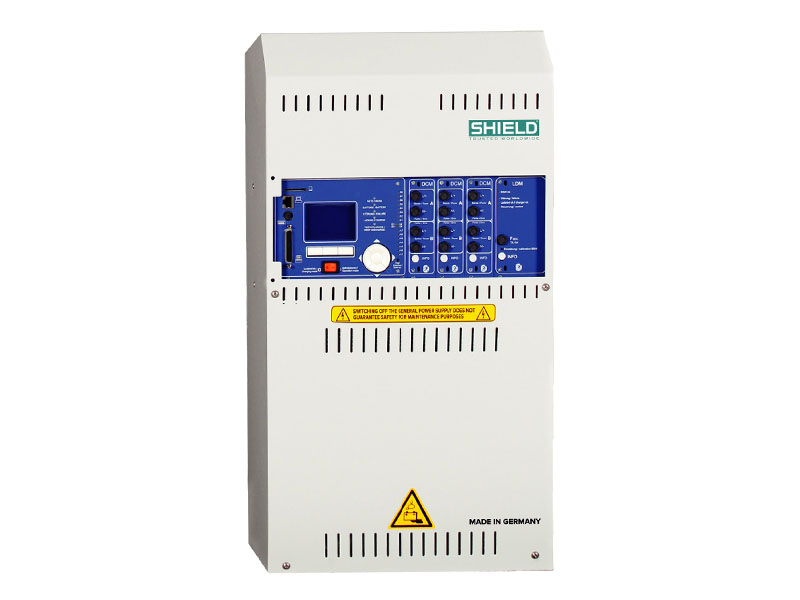

        The Shield – MC6 panel is a decentralized power supply system. This system combines the high reliability of a decentralized single-battery system with the ease and comfort of a central battery system.

        The MC6 is installed in a electrical service room in each fire compartment. MCL works in switched mode 230VAC or 216VDC and can be equipped with up to 6 main circuits. One additional circuit is installed by default. This assures the possibility to connect conventional luminaires with electronic ballast and an input voltage of 230V AC / DC. In combination with our innovative LED luminaires energy efficiency, durability, and lighting improvements in all parts of the building can be optimized.

        The integrated browser-based visualization software makes the system capable to monitor all connected emergency and rescure route luminaires and report immediately in case of failure.

        A certified E30-cabinet is available as an option.

        The Shield – MC6 panel is a decentralized power supply system. This system combines the high reliability of a decentralized single-battery system with the ease and comfort of a central battery system.

        The MC6 is installed in a electrical service room in each fire compartment. MCL works in switched mode 230VAC or 216VDC and can be equipped with up to 6 main circuits. One additional circuit is installed by default. This assures the possibility to connect conventional luminaires with electronic ballast and an input voltage of 230V AC / DC. In combination with our innovative LED luminaires energy efficiency, durability, and lighting improvements in all parts of the building can be optimized.

        The integrated browser-based visualization software makes the system capable to monitor all connected emergency and rescure route luminaires and report immediately in case of failure.

        A certified E30-cabinet is available as an option.

        Features

        • Low power system acc. to DIN EN 50171 for security lighting systems acc. to DIN EN 50172 and systems acc. to DIN VDE 0100-718.
        • Automated monitoring system acc. to DIN EN 62034 for regular testing of all connected luminaires.
        • Independant system with combined switching for non-maintained, maintained and switched maintained luminaires.
        • Service friendly 19“ modular case.
        • Test records are stored for 5 years.
        • Different interface languages possible.
        • Management and failure monitoring for up to 20 luminaires per circuit.
        • Max. 6 main circuits, as 650VA (SCM32) module and one circuit in non-maintained or maintained mode with max. 150 VA (programmable).
        • Maximum connected load (mains) of 2.000 VA.
        • Information reports about the system, circuits and luminaires as plain text and Control-LED.
        • Connectivity for additional external switch interrogation modules via RS485 interface, SDM24, SLM, SLCD15.
        • Up to 6 control inputs can be assigned to each circuit.
        • Networking of multible devices via Ethernet (TCP/IP).
        • Integrated Web – Server for remote maintenance of the system, visualization of floor plans and much more.

        Technical Specifications

        Mounting Wall / Surface mounted
        Case material Steel-sheet RAL 7035
        Dimensions (H x W x D) 660 x 350 x 230 (mm)
        Protection class IP20
        Insulation class I
        Voltage 230V AC 50/60Hz +/- 4%
        Switched mode 230V AC / 216V DC +/- 10%
        Battery (included) 216V DC 18 x 12V / 5.2Ah
        Battery power 10 °C to 35 °C
        Max. connected load AC 2000 VA
        Max. connected load AC 200W (3 hour)
