      Manual Call Point

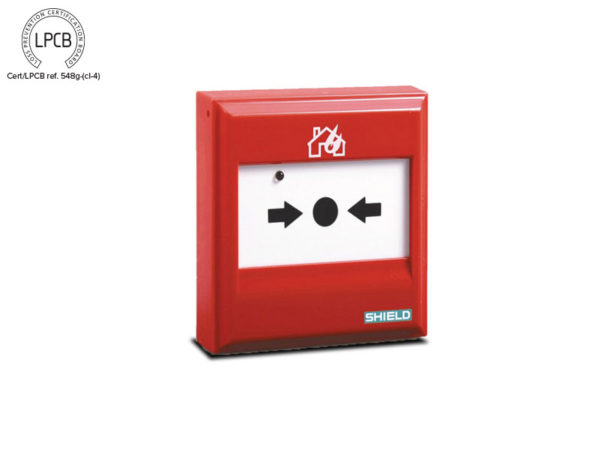

        Connecting to the loop of SHIELD fire alarm system, BG-I450F Digital Manual Call Point (the MCP) is suitable for public places. When there is fire, pressing the action plate on the MCP can send the alarm signal to fire alarm control panel. After receiving the signal, the control panel will show address information of the MCP and generate alarm sound.

        • Electronically addressed. The address can be modified in field.
        • Alarming by pressing. Reset by a special key.
        • Plug-in structure.
        • Designed to comply with EN 54-11.

        Connecting to the loop of SHIELD fire alarm system, BG-I450F Digital Manual Call Point (the MCP) is suitable for public places. When there is fire, pressing the action plate on the MCP can send the alarm signal to fire alarm control panel. After receiving the signal, the control panel will show address information of the MCP and generate alarm sound.

        • Electronically addressed. The address can be modified in field.
        • Alarming by pressing. Reset by a special key.
        • Plug-in structure.
        • Designed to comply with EN 54-11.

        Specification

        Operating Voltage Loop 24V (16V～28V)
        Standby Current ≤0.6mA
        Alarm Current ≤1.8mA
        Indicator Red. Flashes once three seconds. Illuminates after alarming.
        Type of Initiating Part Reusable
        Initiating Mode Pressing the action plate manually
        Resuming Mode Manually resumed by a special key
        Programming Mode Electronically addressed
        Code Range One address within 1～242
        Wiring Two-wire, polarity-insensitive
        Class Type A, indoor use
        Ingress Protection Rating IP43
        Ambient Temperature -10°C～+55°C
        Relative Humidity ≤95%, non condensing
        Material of Enclosure ABS
        Dimension (L×W×H) 87.1mm×87.1mm×58mm (with back box)
        87.1mm×87.1mm×23mm (without back box)
        Mounting Hole Distance 60mm
        Weight About 160g (with back box)
        About 107g (without back box)
