      Input Module

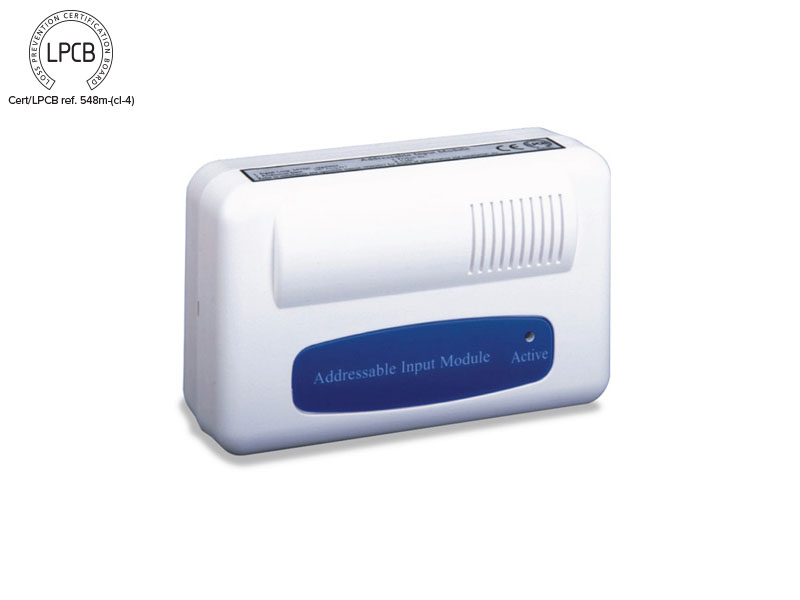

        AI-500 Addressable Input Module is designed to receive normally open or normally closed switch signal from fire devices with coincidence functions, and transmits these messages to fire alarm control panel (FACP) with coincidence detection function. When a device of this kind is activated, the module can send the output signal through signal loop to FACP to alarm or activate relative devices.

        • Working mode can be set to normally open, normally closed and normally open cable monitor through programmer.
        • Electronically addressed. The address can be modified in field.
        • The built-in microprocessor processes messages intelligently.
        • Insulation technology for input signal, good anti-interference ability.
        • Plug-in structure.

        AI-500 Addressable Input Module is designed to receive normally open or normally closed switch signal from fire devices with coincidence functions, and transmits these messages to fire alarm control panel (FACP) with coincidence detection function. When a device of this kind is activated, the module can send the output signal through signal loop to FACP to alarm or activate relative devices.

        • Working mode can be set to normally open, normally closed and normally open cable monitor through programmer.
        • Electronically addressed. The address can be modified in field.
        • The built-in microprocessor processes messages intelligently.
        • Insulation technology for input signal, good anti-interference ability.
        • Plug-in structure.

        Specification

        Operating Voltage Loop 24V(16V~28V)
        Average Current ≤1mA
        Programming Method Electronically addressed
        Code Range One address within 1~242.
        Indicator Red, flashes when polling, illuminates in action.
        Ingress Protection Rating IP30
        Operating Temperature 0°C～+49°C
        Relative Humidity ≤93%, non condensing
        Material and Color of Enclosure ABS, White (RAL 9016)
        Dimension (L×W×H) 120mm×80mm×39mm (with base)
        Weight About 181g (with base)
