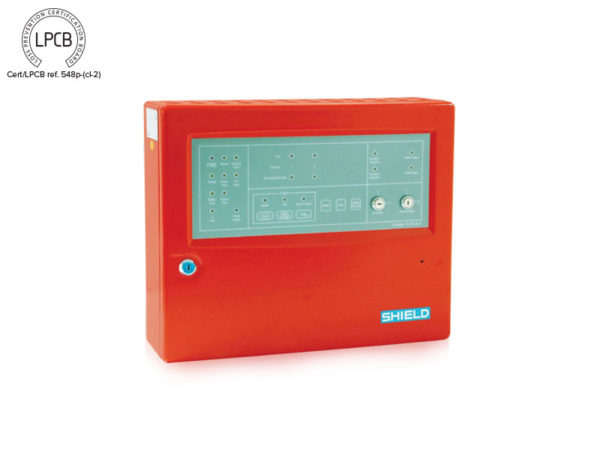

      Conventional Control Panel (8/16 Zones)

        The P-C208A/216A conventional fire control panels provide eight/sixteen zones of fire detection. Panels have been designed to offer high standards of performance, reliability and quantity and comply fully with BS5839, Part 4, 1988 and EN 54 parts 2 and 4. (Each zone can be connected with 15 conventional fire detectors and infinite no of MCB when using Active EOL).

        • Microprocessor controlled SMT Electronics
        • Compliant with EN54 part 2&4, & BS5839, Part 4, 1988
        • Repeater Panel Interface
        • Both end of line resistors and active end of line can be used.
        • Programmable sounder circuits outputs
        • Zone Isolate / Test control
        • Fully monitored sounder circuits
        • Key control evacuate over-ride
        • Fire alarm output for remote control
        • Class change terminals for remote control
        • Up to 15 fire detectors and infinite manuals call points each zone.

        The P-C208A/216A conventional fire control panels provide eight/sixteen zones of fire detection. Panels have been designed to offer high standards of performance, reliability and quantity and comply fully with BS5839, Part 4, 1988 and EN 54 parts 2 and 4. (Each zone can be connected with 15 conventional fire detectors and infinite no of MCB when using Active EOL).

        • Microprocessor controlled SMT Electronics
        • Compliant with EN54 part 2&4, & BS5839, Part 4, 1988
        • Repeater Panel Interface
        • Both end of line resistors and active end of line can be used.
        • Programmable sounder circuits outputs
        • Zone Isolate / Test control
        • Fully monitored sounder circuits
        • Key control evacuate over-ride
        • Fire alarm output for remote control
        • Class change terminals for remote control
        • Up to 15 fire detectors and infinite manuals call points each zone.

        Specification

        Part Number P-C208A P-C216A
        Operating Voltage 220VAC ± 15%, 50Hz
        Standard BS5839, Part 4, 1988 and EN 54 parts 2 and 4
        Approval CE, LPCB
        Operating Temperature -10°C to 40°C @95% relative humidity
        Number of Zones 8 Zone 16 Zone
        Zone Capacity 15 detectors (AOL); 25 detectors (EOLR)
        Standby Batteries 7 AH, 24hours monitoring state
        Output Voltage 20VDC to 28VDC
        Static Loading Current 2.4 mA (when connected with 15 conventional detector)
        Fire Alarming Resistance 150Ω-1.5kΩ (normal 470Ω)
        End of Line Resistor 4.7kΩ or AEOL (Active End Of Line)
        No. of Sounder Output 4
        Sounder Output Output voltage: 20VDC ~ 28VDC; Output Current: 1A
        Fire Alarm Output Output voltage: 20VDC ~ 28VDC; Output Current: 0.5A
        Fault Output Capacity Passive contact output: 24VDC / 1A
        Aux. Power Output 20VDC to 28VDC, 0.5A
        Application Indoor Use
        Materials and Colour Coated Metal / Grey
        Dimension 380mm x 95mm x 320mm
