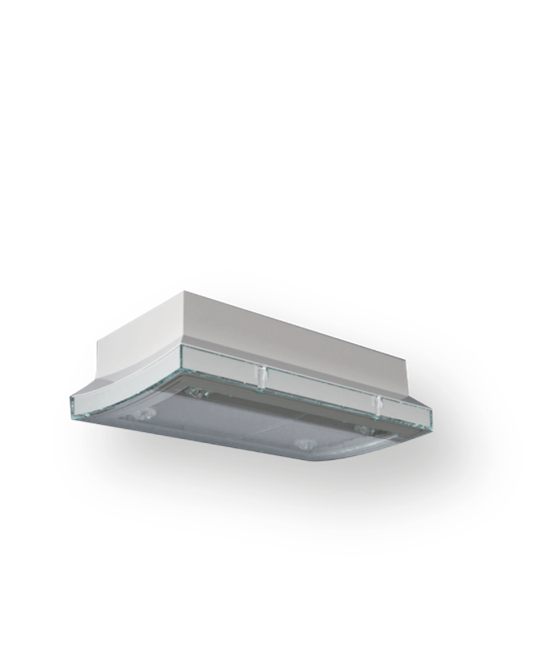

      M70UH

        High Intensity Universal Mount LED Emergency Luminaire precisely for High Ceiling Area. It complies with the Emergency lighting requirements according to DIN EN 60598-1, DIN EN 60598-2-22 and DIN EN 1838. The Luminaires housings are made up with high quality Polycarbonate materials ensures a good heat dissipation and ensures a long service life for LED.

        High Intensity Universal Mount LED Emergency Luminaire precisely for High Ceiling Area. It complies with the Emergency lighting requirements according to DIN EN 60598-1, DIN EN 60598-2-22 and DIN EN 1838. The Luminaires housings are made up with high quality Polycarbonate materials ensures a good heat dissipation and ensures a long service life for LED.

        Features

        • Polycarbonate LED Emergency sign with convex shaped hood for ceiling / surface mounting.
        • High lumen output for Better spacing.
        • Low power consumption in AC operation.
        • Levelling screws are integrated to compensate for uneven surfaces for ease of installation.
        • Developed In accordance to EN 60598-1, EN 60598-2-22, EN ISO 7010 and DIN EN 1838.
        • Single luminaire switching operation mode.
        • IP65 Weather proof protection.
        • IK6 Impact Resistance.

        Technical Specifications

        Luminaire type Emergency Luminaire
        Mounting Ceiling mounted
        Illuminant LED
        Housing material Plastic
        Colour RAL 9003
        Mechanical rating IP 65
        Impact resistance IK 6
        Protection class 2
        Supply Central power supply system
        Monitoring ML – Central power supply system
        Operation time CPS
        Operation mode single luminaire switching
        Input Voltage AC 230 V
        Input Frequency Hz 50 / 60 Hz
        Input Voltage DC 216 V
        Power consumption max. 9.4 W
        Power consumption maintained 9.4 W
        Power consumption non-maintained 1.1 W
        Ambient temperature-maintained mode -20 ºC / 40 ºC
        Ambient temperature non-maintained mode -20 ºC / 40 ºC
        Length 65 mm
        Width 236 mm
        Height 136 mm
        Weight 0.67 kg
        Weight incl. Packaging 0.67 kg
        Connection cross-section 2.5 mm
        Switching input L’ Yes
        Emergency light blocking No
        Battery connector None
        Dimming function Yes
        Luminous flux mains mode 1050 lm
        Luminous flux emergency mode 1050 lm
