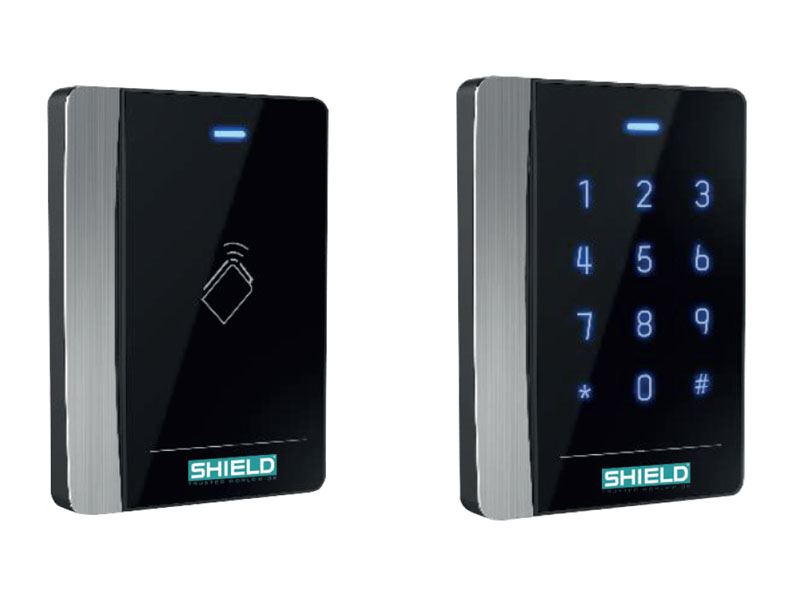

Card Reader (SH-CR)

Model

PC+ABS material shell with PMMA panel design and alloy decoration
Equipped with the 32-bit high-speed processor
Built-in audible beeper
Display the reader status with LED indicator
DIP switch
RS485 and Wiegand (W26/ W34) protocol
Tamper-proof alarm
Online upgrade function (under the 485 communication mode). Card reader can degrade to pre-upgrade status in case of upgrading failed
Watchdog design for repairing itself in case that exception occurs, to ensure the long service life of the reader
Dust-proof and water-proof design
Build-in EM card reading module (Frequency:125KHz). Supports reading EM card No. (SH-CR1102E, SH-CRK1102E)
Build-in Mifare card reading module (Frequency: 13.56MHz). Meets the standard of ISO 14443-A. Supports reading Mifare card No (SH-CR1102M, SH-CRK1102M)

Model	SH-CR1102E SH-CRK1102E SH-CR1102M SH-CRK1102M
Power Supply	12V DC
Working Current	≤500mA
Processor	32-bit
Reading Frequency	125KHz
Reading Range	≤50mm (≤1.97″)
ID Settings	via DIP Switch
Audio Alert	Beeper
Power Consumption	≤2W
Keypad	No Keypad (DS-K1102E/M) Keypad with 12 Keys (0 to 9, *, #) (DS-K1102EK/MK)
Certications	FCC, CE
LED Indicator	Power Indicator; Status LED Indicator
Working Temperature	-20°C to +65°C (-4°F to +149°F)
Working Humidity	10% to 90% (Non Condensing)
Protection Level	IP 64
Dimensions	121mm × 86.5mm × 14mm (4.76” × 3.41” × 0.55″)
Weight	≤0.14Kg
Installing Method	Applied for 86 & 120 Gang Box
