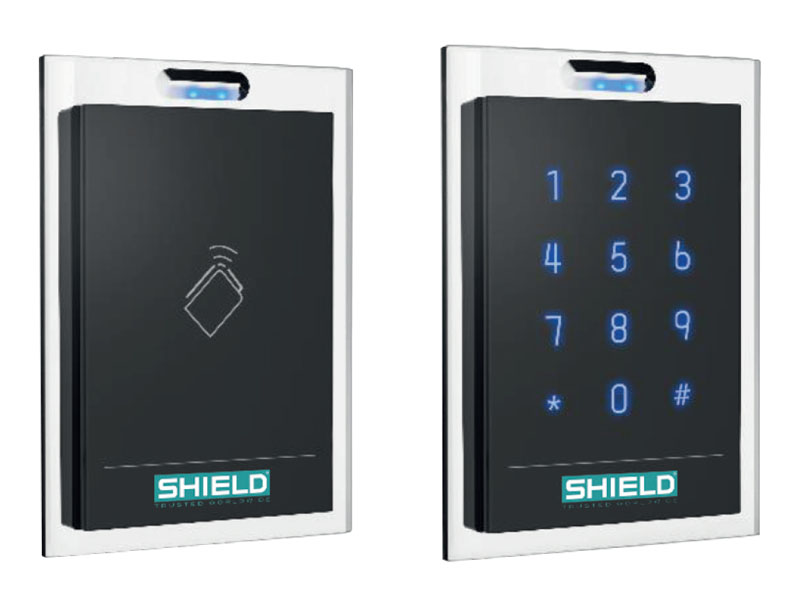

    Card Reader (SH-CR1101)

    Model

    • Mifare Card Reader
      • SH-CR1101M
    • Mifare Card Reader with Keypad
      • SH-CRK1101M

    Features

    • PC+ABS material shell with PMMA panel design
    • Equipped with the 32-bit high-speed processor
    • Built-in audible beeper
    • Display the reader status with LED indicator
    • DIP switch
    • RS485 and Wiegand(W26/W34) protocol
    • Tamper-proof alarm
    • Online upgrade function(under the 485 communication mode), and card reader can degrade to pre-upgrade status in case of upgrading failed
    • Watchdog design for repairing itself in case that exception occurs, to ensure the long service life of the reader
    • Dust-proof and water-proof design
    • Read Mifare card and obtain the card No.

    Specifications

    Model SH-CR1101M
    SH-CRK1101M
    Power Supply 12V DC
    Working Current ≤500mA
    Processor 32-bit
    Reading Frequency 13.56MHz
    Reading Range ≤50mm (≤1.97″)
    ID Settings via DIP Switch
    Audio Alert Beeper
    Power Consumption ≤2W
    Keypad No Keypad (S H-CR1101M )
    Keypad with 12 Keys (0 to 9, *, #) (SH-CRK1101M)
    Certifications FCC, CE
    LED Indicator Power Indicator; Status LED Indicator
    Working Temperature -20°C to +65°C (-4°F to +149°F)
    Working Humidity 10% to 90% (Non Condensing)
    Protection Level IP 64
    Dimensions 132.0mm × 92.3mm × 20.5mm (5.20” × 3.63” × 0.81″)
    Weight ≤0.14Kg
    Installing Method Applied for 120 Gang Box Only
