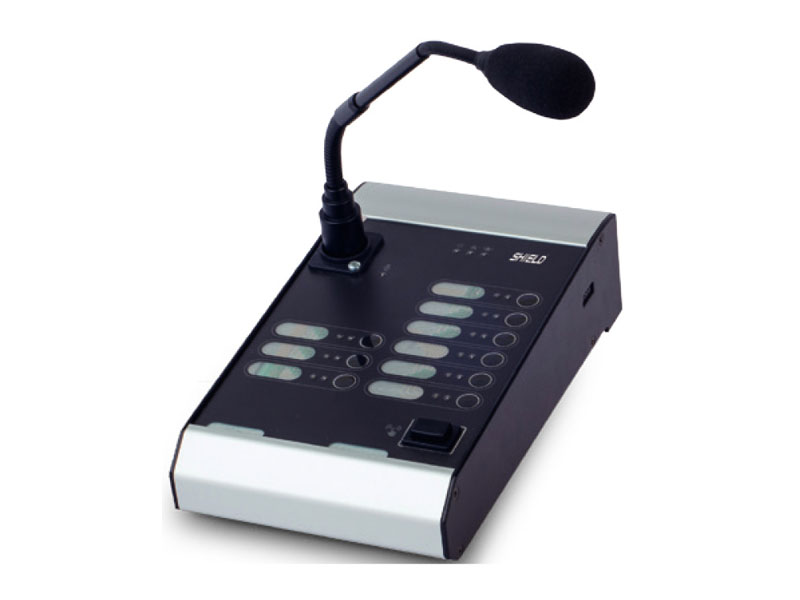

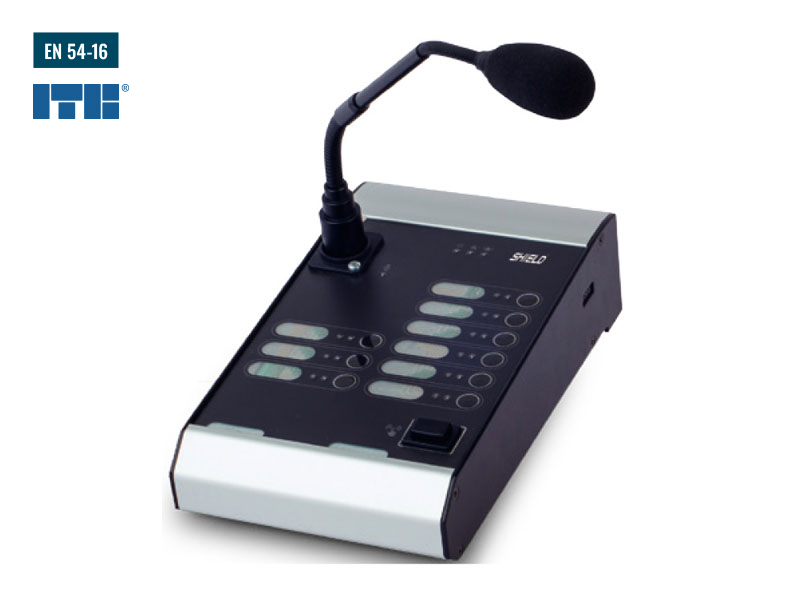

      Zone Microphone

        This zone microphone is used to induce general announcements, to choose individual zones and to broadcast live voice messages.

        It is connected directly to a selected control unit or via an additional Ethernet switch. A zone micro-phone is supplied with power locally or from a control unit via POE.

        It is equipped with programmable function buttons which may arbitrarily be assigned selected functions. All the parameters needed for operation of a worksite can be programmed: assignment of zones to various buttons, naming of zones and zone groups, priorities, access to various announce-ments, voice level adjustment, “push to talk” button, music on / music off and music routing. LEDs on the SMA-ZM give also information about existing fault in the system, fault in specific speaker zone, evacuation mode on and type of announcement on the zone (BGM, EVAC, Warning, Fireman microphone).

        A zone microphone offers a possibility of connecting up to five SMA-EKB-20M extension with additional function buttons to it.

        As a fireman microphone it is also equipped with an intercom function and is able to communicate with each other microphone in the system.

        This zone microphone is used to induce general announcements, to choose individual zones and to broadcast live voice messages.

        It is connected directly to a selected control unit or via an additional Ethernet switch. A zone micro-phone is supplied with power locally or from a control unit via POE.

        It is equipped with programmable function buttons which may arbitrarily be assigned selected functions. All the parameters needed for operation of a worksite can be programmed: assignment of zones to various buttons, naming of zones and zone groups, priorities, access to various announce-ments, voice level adjustment, “push to talk” button, music on / music off and music routing. LEDs on the SMA-ZM give also information about existing fault in the system, fault in specific speaker zone, evacuation mode on and type of announcement on the zone (BGM, EVAC, Warning, Fireman microphone).

        A zone microphone offers a possibility of connecting up to five SMA-EKB-20M extension with additional function buttons to it.

        As a fireman microphone it is also equipped with an intercom function and is able to communicate with each other microphone in the system.

        Specification

        • Monitored connection of the unit to the system.
        • Nine fully programmable buttons with a possibility of extension up to five 20-button modules.
        • Four non-symmetrical audio inputs, (1/8”) stereo jack connector.
        • Built-in speaker.
        • Stereo jack socets for Headset.
        • Implemented intercom function.
        • Power supply via POE.
