      Upright, Pendent & Recessed Pendent Sprinklers

        MODEL: SD5120, SD5220, SD6120, SD6220

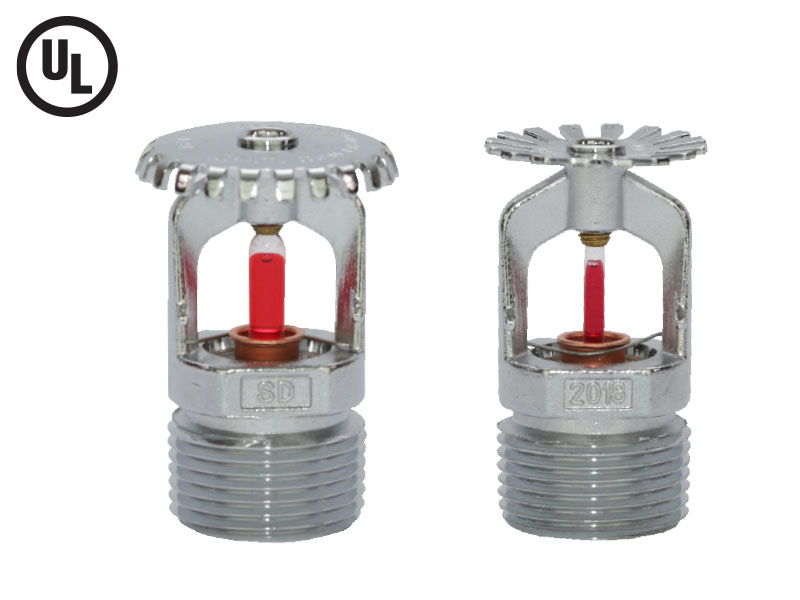

        The Model A SD5120/SD6120/SD5220/SD6220(Glass Bulb Type) ¾” Standard Orifice Upright, Pendent and Recessed Pendent Standard and Quick Response. The Model A Pendent Sprinkler Identification Number (SIN). SD6120(standard) SD6220(quick) Recessed Pendent. The Model A Upright Sprinkler Identification Number (SIN) SD5120(standard) SD5220(quick). The design incorporates state-of-the-art, heat responsive, frangible glass bulb design (standard or quick response) for prompt, precise operation.

        The die cast frame is more streamlined and attractive than traditional sand cast frames. It is cast with a hex-shaped wrench boss to allow easy tightening from many angles, reducing assembly effort. This sprinkler is available in various temperature ratings (see chart on page 2) and finishes to meet many design requirements. The recessed pendent should be utilized with a Model A recessed escutcheon which provides up 1” of adjustments. All SHIELD Sprinklers are manufactured using the time proven Belleville seal used exclusively by all major manufactures to ensure long life and safe operation.

        MODEL: SD5120, SD5220, SD6120, SD6220

        The Model A SD5120/SD6120/SD5220/SD6220(Glass Bulb Type) ¾” Standard Orifice Upright, Pendent and Recessed Pendent Standard and Quick Response. The Model A Pendent Sprinkler Identification Number (SIN). SD6120(standard) SD6220(quick) Recessed Pendent. The Model A Upright Sprinkler Identification Number (SIN) SD5120(standard) SD5220(quick). The design incorporates state-of-the-art, heat responsive, frangible glass bulb design (standard or quick response) for prompt, precise operation.

        The die cast frame is more streamlined and attractive than traditional sand cast frames. It is cast with a hex-shaped wrench boss to allow easy tightening from many angles, reducing assembly effort. This sprinkler is available in various temperature ratings (see chart on page 2) and finishes to meet many design requirements. The recessed pendent should be utilized with a Model A recessed escutcheon which provides up 1” of adjustments. All SHIELD Sprinklers are manufactured using the time proven Belleville seal used exclusively by all major manufactures to ensure long life and safe operation.

        Specifications

        Sprinkler Identification Number Standard SD5120, SD6120 (bulb 5mm), Quick Response SD5220, SD6220 (bulb 3mm)
        Style Upright Sprinkler SD5120, SD5220, Pendent & Recessed Pendent SD6120, SD6220
        Finish Brass/Chrome
        K Factor 8gpm/psi½. (114lpm/bar½)
        Response Time Index (RTI) Standard 50 (m.s)½
        Quick Response 30 (m.s)½
        Nominal Thread Size ¾”NPT(20mm)
        Max. Working Pressure 175PSI(1200kPa)
        Factory Hydrostatic Test 100%@500PSI(3450 kPa)
        Min. Operation Pressure 7 PSI(48 kPa)
