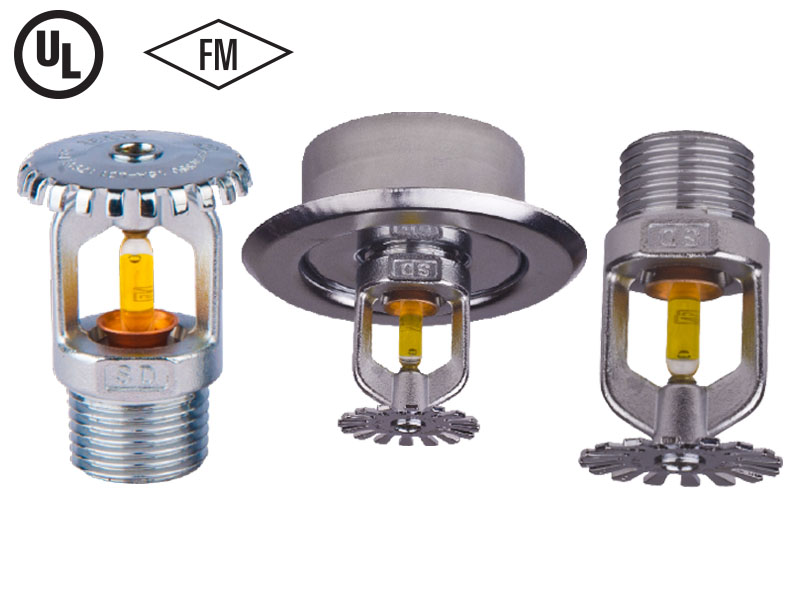

      Upright, Pendent & Recessed Pendent Sprinklers

        MODEL: SD1010, SD1015, SD1030, SD1032

        The SHIELD Sprinklers, SD1010, SD1015, SD1030, SD1032 (Glass Bulb Type), Standard Orifice, Upright, Pendent and Recessed Pendent type, design incorporates state-of-the-art, heat responsive, frangible glass bulb design (standard or quick response) for prompt, precise operation.

        The forged frame is more streamlined and attractive than traditional sand cast frames. It is cast with a hex-shaped wrench to allow easy tightening from different angles. This sprinkler is available in various temperature ratings and finishes to meet many design requirements. The recessed pendent should be utilized with a recessed escutcheon which provides up ¾” of adjustments. All Sprinklers are manufactured using the time proven Belleville seal used exclusively by all

        MODEL: SD1010, SD1015, SD1030, SD1032

        The SHIELD Sprinklers, SD1010, SD1015, SD1030, SD1032 (Glass Bulb Type), Standard Orifice, Upright, Pendent and Recessed Pendent type, design incorporates state-of-the-art, heat responsive, frangible glass bulb design (standard or quick response) for prompt, precise operation.

        The forged frame is more streamlined and attractive than traditional sand cast frames. It is cast with a hex-shaped wrench to allow easy tightening from different angles. This sprinkler is available in various temperature ratings and finishes to meet many design requirements. The recessed pendent should be utilized with a recessed escutcheon which provides up ¾” of adjustments. All Sprinklers are manufactured using the time proven Belleville seal used exclusively by all

        Specifications

        Sprinkler Identification Number Standard SD1015, SD1010 (bulb 5mm), Quick Response SD1030, SD1032 (bulb 3mm)
        Style Upright Sprinkler SD1015, SD1032, Pendent & Recessed Pendent SD1010, SD1030
        Finish Natural/Chrome
        K Factor 5.6gpm/psi½. (80lpm/bar½)
        Response Time Index (RTI) Standard 90 (m.s)½
        Quick Response 33 (m.s)½
        Nominal Thread Size ½”NPT(15mm)
        Orifice Size 13mm
        Max. Working Pressure 175PSI(1200kPa)
        Factory Hydrostatic Test 100%@500PSI(3450 kPa)
        Min. Operation Pressure 7 PSI(48 kPa)
