      TEST AND DRAIN VALVE

        Test and Drain valve for sprinkler systems combines the functions of test and drain for wet sprinkler systems.

        This valves have forged brass body with chrome plate brass ball valve and PTFE seats. The valves complies with the requirements of NFPA-13, NFPA- 13R and NFPA-13D. This valves are single handle ball valves with three working positions. They include tamper resistant test orifice and sight glass for the visual control.

        Test and Drain valve for sprinkler systems combines the functions of test and drain for wet sprinkler systems.

        This valves have forged brass body with chrome plate brass ball valve and PTFE seats. The valves complies with the requirements of NFPA-13, NFPA- 13R and NFPA-13D. This valves are single handle ball valves with three working positions. They include tamper resistant test orifice and sight glass for the visual control.

        Features

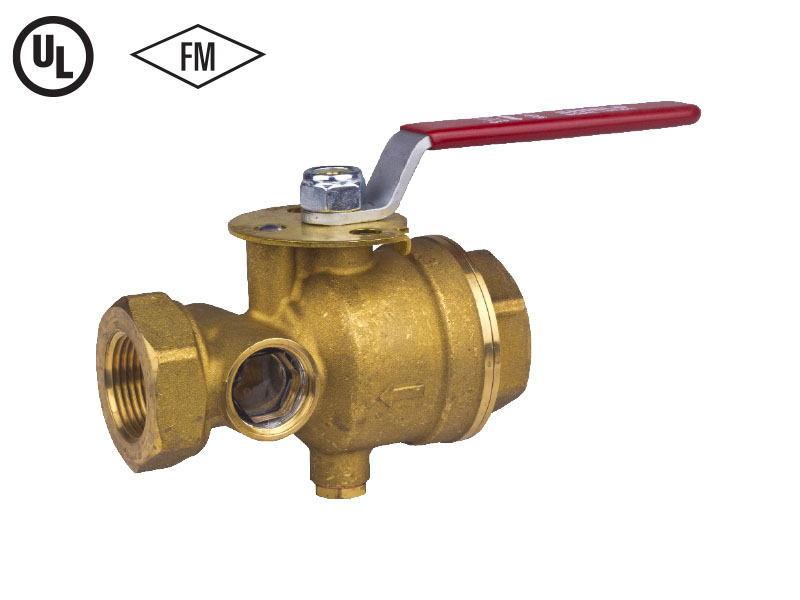

        MODEL: SD-A61

        • Female NPT inlet and outlet, forged brass body, chrome plated ball with teflon seats
        • Rated Pressure 175 psi
        • Manufactured in accordance with UL258

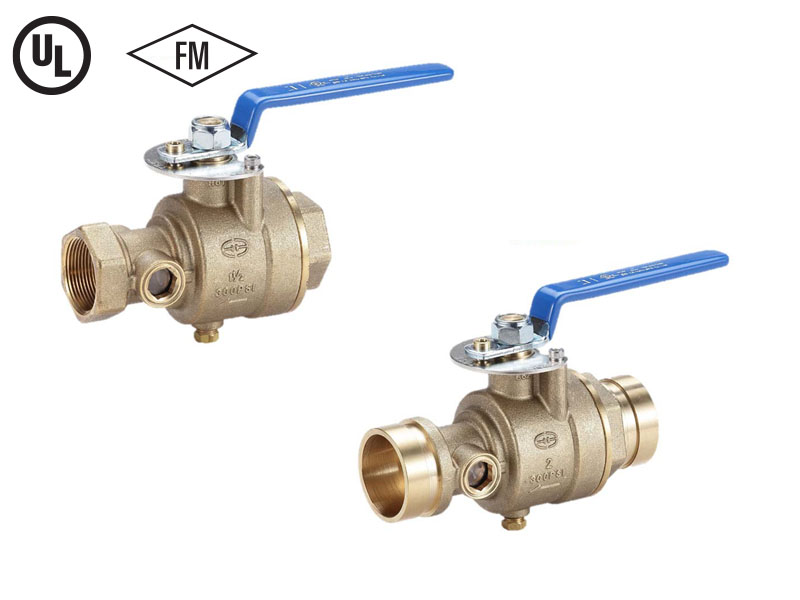

        MODEL: SD-TDV50T, SD-TDV50G

        Test and drain valve for sprinkler systems combines the functions of test and drain for wet sprinkler systems. Complies with the requirements of NFPA-13, NFPA-13R and NFPA-13D.

        Main feature as following:

        • NPT threads 1” – 1 ½” – 1 ¼” – 2”
        • Groove connections 1 ¼” – 1 ½” – 2”
        • Forged brass body
        • Chrome plate brass ball valve
        • PTFE seats.
        • Single handle ball valves with three working positions
        • Tamper resistant test orifice and sight glass included
        • Rated pressure: 300 psi
        • Groove Dimension To AWWA C606-06
