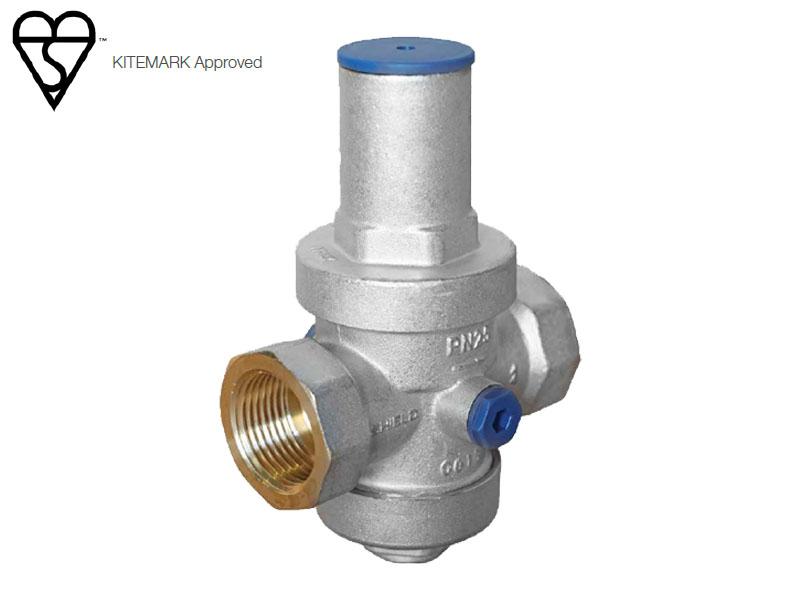

Pressure Reducing Valve: SD 91430-K

    SERVICE RECOMMENDATIONS:
    The pressure reducing valves series SD 91430 are suitable for reduction and control of pressure in plants with the following characteristics:

    Max inlet pressure 25 bar
    Field of action (outlet pressure) 1 – 5,5 bar
    Ps value set during test 3 bar
    Outlet Ps Tolerance ± 10%
    Max temperature of use 0°C (excluding ice)
    130°C*
    Threading of connection ISO 228/1
    Gauge of connection EN 10226- Rp1/4” (ex ISO 7/1)
    Suitable fluids Water, Glycolate Solutions (glycol 50%), Compressed Air (no oil mist)
    Test Kitemark approved in compliance with the limits defined by EN 15671
