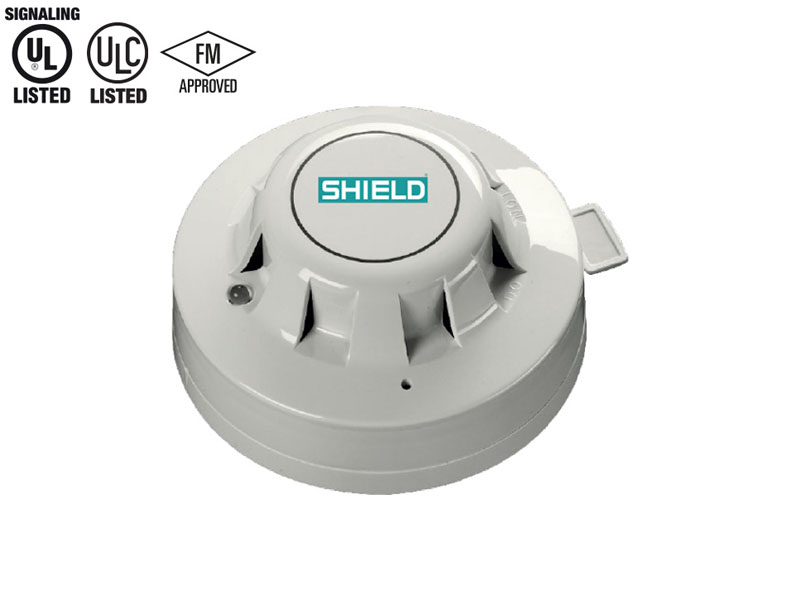

    Photo-Electric Smoke Detector

    SHIELD Photo-Electric Smoke Detector works on the light-scatter principle and is ideal for applications where slow-burning or smoldering fires are likely.

    Click here to download the catalogue

    SHIELD Photo-Electric Smoke Detector works on the light-scatter principle and is ideal for applications where slow-burning or smoldering fires are likely.

    Click here to download the catalogue

    Features

    • Responds well to slow-burning, smoldering fires.
    • Well suited for bedrooms and escape routes
    • Unaffected by atmospheric pressure

    Specification

    Detector Type Photoelectric
    Working Voltage 17 – 28 V DC
    Modulation Voltage (V peak to peak) 5 – 9 V
    Maximum Alarm Current LED On 4.5 mA
    Surge Current 1.0 mA
    Supervisory Current 340 μA
    Test Method Home Safeguard, Gemini 501
    Storage Temperature Range -30°C to +80°C
    Operating Temperature Range -20°C to +60°C
    Dimensions (diameter x height) 100 mm x 42 mm
    Weight 105 g
