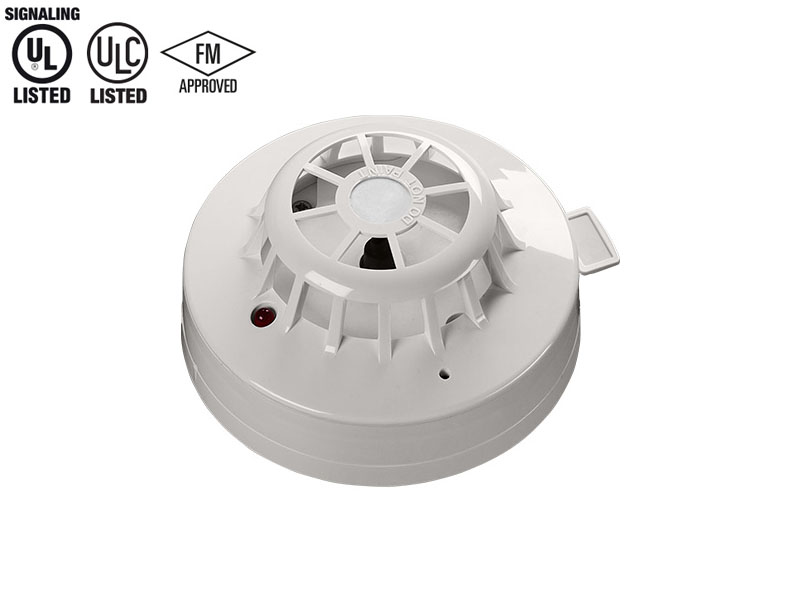

      Heat Detector

        SHIELD Heat Detector is distinguishable by the low airflow resistant case and uses a single thermistor to sense the air temperature around the detector.

        Click here to download the catalogue

        SHIELD Heat Detector is distinguishable by the low airflow resistant case and uses a single thermistor to sense the air temperature around the detector.

        Click here to download the catalogue

        Features

        • Ideal for environments that are dirty or smoky under normal conditions
        • Well suited for warehouses, loading docks and parking garages
        • Unaffected by wind or atmospheric pressure
        • Remote test feature

        Specification

        Detector Type Heat
        Working Voltage 17 – 28 V DC
        Modulation Voltage (V peak to peak) 5 – 9 V
        Maximum Alarm Current LED On 2.5 mA
        Surge Current 1.0 mA
        Supervisory Current 250 μA
        Heat Element Rating 135°F (57°C)
        Test Method Hair Dryer
        Dimensions (diameter x height) 100 mm x 42 mm
        Weight 105 g
