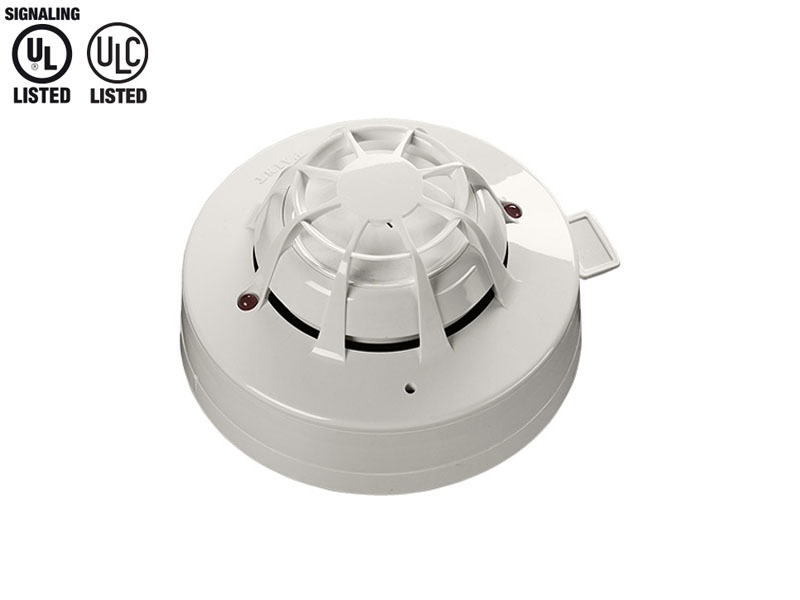

    Multisensor Detector

    SHIELD Multisensor contains a photoelectric smoke sensor and a thermistor (temperature sensor) whose outputs are combined to give the final analog value.

    Click here to download the catalogue

    SHIELD Multisensor contains a photoelectric smoke sensor and a thermistor (temperature sensor) whose outputs are combined to give the final analog value.

    Click here to download the catalogue

    Features

    • Sensitive to a wide range of fires
    • Well suited for environments such as hotel bedrooms, warehouses & loading docks
    • Unaffected by wind or atmospheric pressure

    Specification

    Detector Type Photoelectric Smoke Sensor and Thermistor
    Working Voltage 17 – 28 V DC
    Modulation Voltage (V peak to peak) 5 – 9 V
    Maximum Alarm Current LED On 3.5 mA
    Surge Current 0 mA
    Supervisory Current 500 μA
    Test Method Home Safeguard, Gemini 501
    Dimensions (diameter x height) 100 mm x 50 mm
    Weight 105 g
