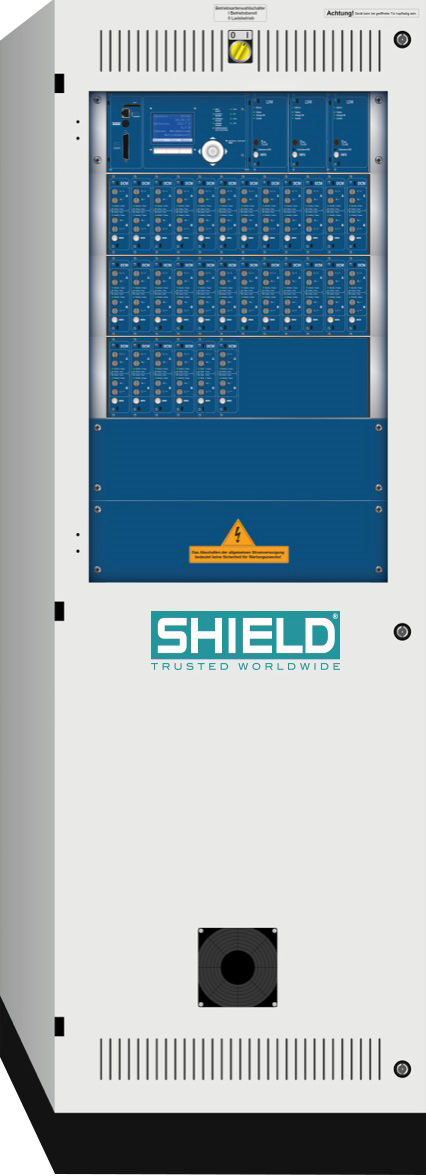

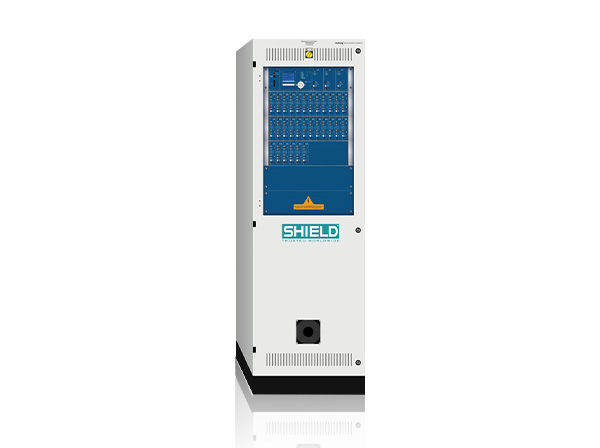

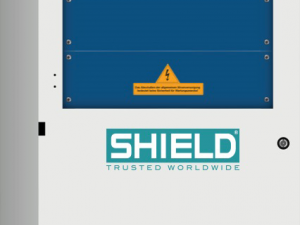

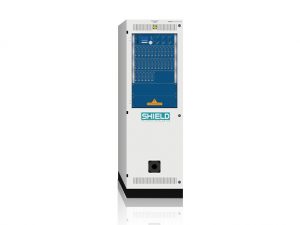

      ML96 Series PANEL

        ML96 panel is a modular 19” central battery system according to EN 50171 and BGV A3 featuring single light monitoring without additional wiring, free programmable circuits and a 5-year log-book. The system is available in different cases with internal or external battery compartment.

        ML96 panel is a modular 19” central battery system according to EN 50171 and BGV A3 featuring single light monitoring without additional wiring, free programmable circuits and a 5-year log-book. The system is available in different cases with internal or external battery compartment.

        Features

        • Central power supply system acc. to DIN EN 50171 for security lighting systems acc. to DIN EN 50172 and systems acc. to DIN VDE 0100-718.
        • Automated monitoring system acc. to DIN EN 62034 for regular testing of all connected luminaires.
        • Microprocessor-based function control system.
        • Redundancy in CPU.
        • Memory for test results over 5 years.
        • Illuminated LC-Display with plain text display.
        • Multilingual switch-selectable.
        • Password protected.
        • Service contact pre-programmed.
        • Easy and understandable programming with 8 buttons.
        • External PC keyboard for fast configuration of the device (PS/2).
        • Memory-Card slot (Multi Media Card) for software updates.
        • Optionally recessed printer.
        • Ethernet interface.
        • Control and monitoring over web browser.
        • Display of lamp positions and state in a building ground plan.
        • Mains circuits SCM with 1A, 3A, 4A and 6A nominal current
        • Free programmable circuits.
        • Adaptive mains monitoring at every circuit.
        • Selective earth fault check of every circuit.
        • Up to 96 circuits in one cabinet.
        • System Expandability up to 256 main panels can be networked
        • Battery charger with IUTQ characteristic to maximize the battery life.
        • Extern modules (network guardian etc.) can be connected and controlled over a bus system.

        Technical Specifications

        Case Material Steel-sheet RAL 7035
        Dimensions (H x W x D) Various
        Protection Category IP20 (Optional IP21*, IP54**)
        Insulation Class I
        Dimensions (H x W x D) MLW: 900 x 600 x 450 mm
        MLX: 1850 x 800 x 600 mm                                                          MLS: 1800 x 600 x 450 mm                                                        MLG: 1500 x 600 x 450 mm                                                      MLK: 1000 x 600 x 450 mm
        Cable Entry from top (900 mm cabinet from below also)
        Voltage 3 x 230V AC 50/60Hz +/- 10%
        Output Circuits Max. 96 circuits with switchover for non-maintained or maintained operation
        Battery Maintenance-free, closed lead acid cell OGiV, OGi, OPzS or low-maintenance NiCd batteries
        Output Voltage 230 V AC / 216V DC
        Permissible Temperature 10 °C to 35 °C
