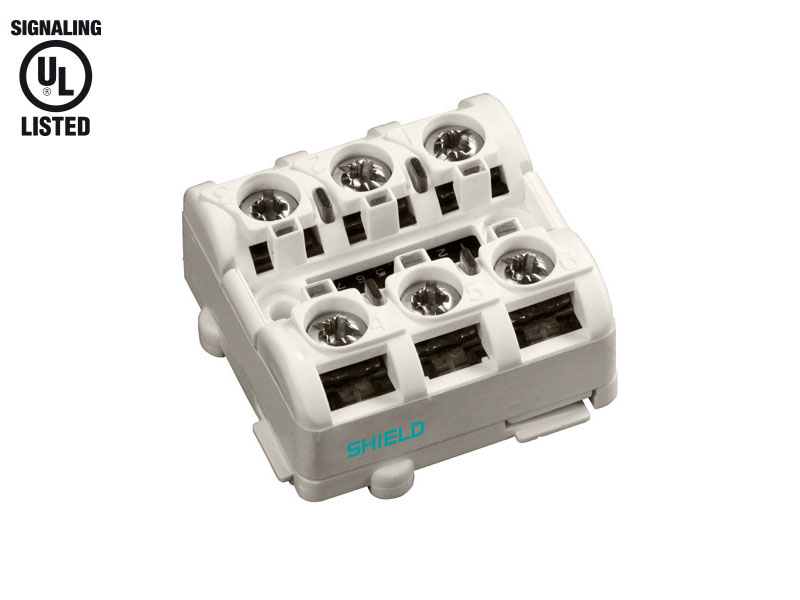

      Mini Monitor Module

        The Mini Monitor Module is an interface within an entirely new housing. This allows the unit to be fitted onto a standard 35mm DIN-Rail (using a twist-click motion) or mounted within an enclosure, such as a Pull Station.

        The Mini Monitor Module is an interface within an entirely new housing. This allows the unit to be fitted onto a standard 35mm DIN-Rail (using a twist-click motion) or mounted within an enclosure, such as a Pull Station. It is designed to monitor the state of one or more single pole, voltage free contacts connected on a single pair of cables and to report the status to compatible analog control equipment.

        Features

        • DIN-Rail mountable
        • Designed for use where space is limited
        • Interrupt/non-interrupt in one unit
        • ‘Pre-alarm’ status available
        • Three, colored LEDs, giving clearer status indication

        Specification

        Operating Voltage 20-28 V DC
        UL Listed To Operate 17-28 V DC
        Designed To 24 V DC Nominal
        Current Consumption at 24V
        Quiescent Current 200 μA
        LED Operated Alarm 3.4 mA + Quiescent
        Remote And Led Alarm 6.2 mA + Quiescent
        Switch Fault LED +2.8 mA
        (pulsing 0.5 s on, 0.5 s off)
