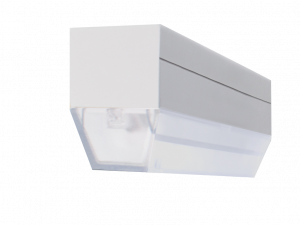

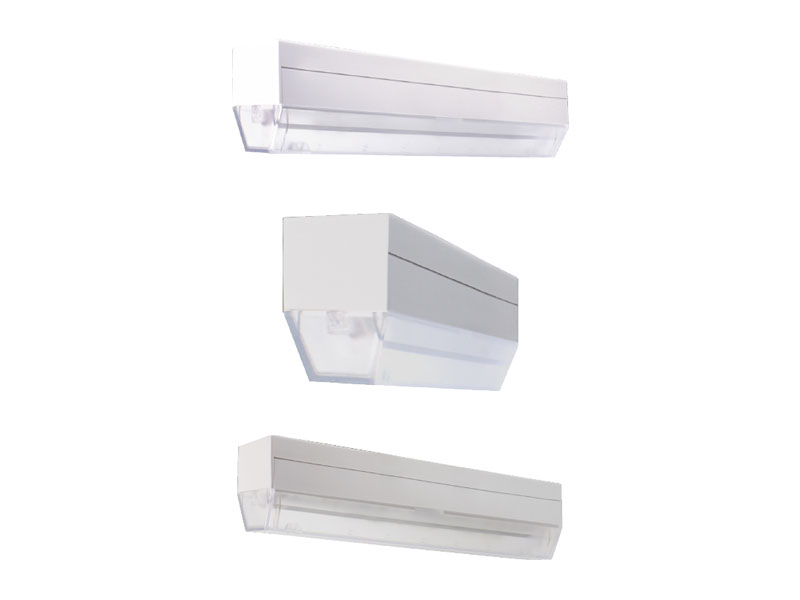

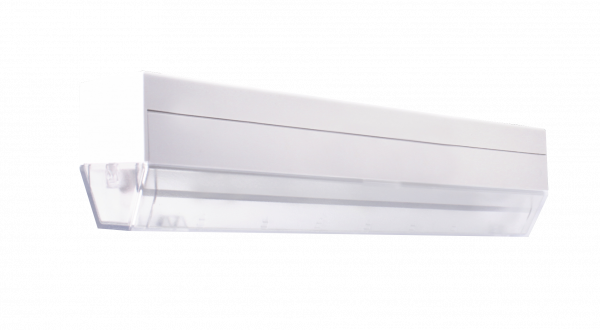

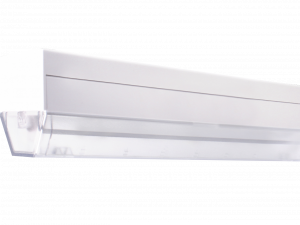

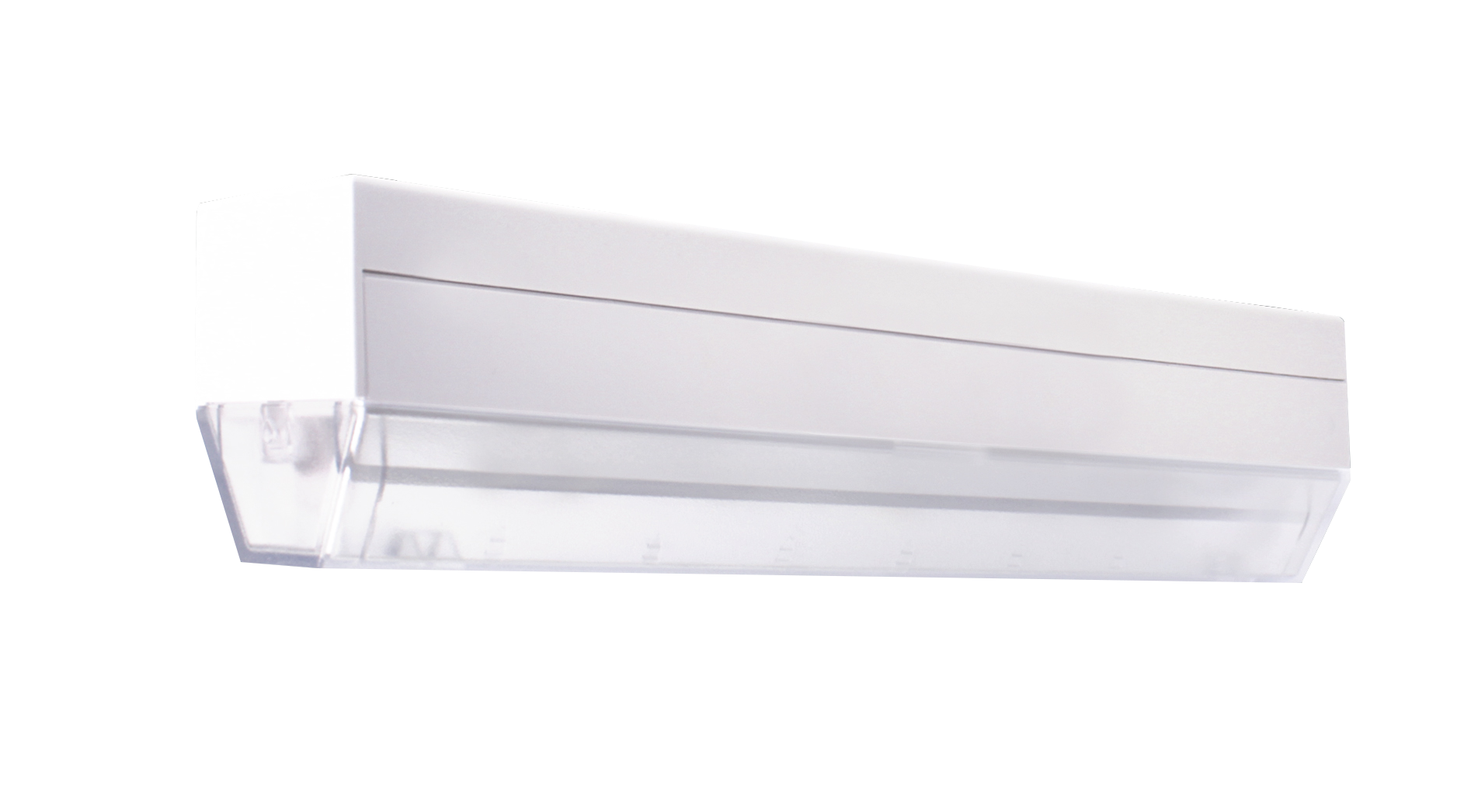

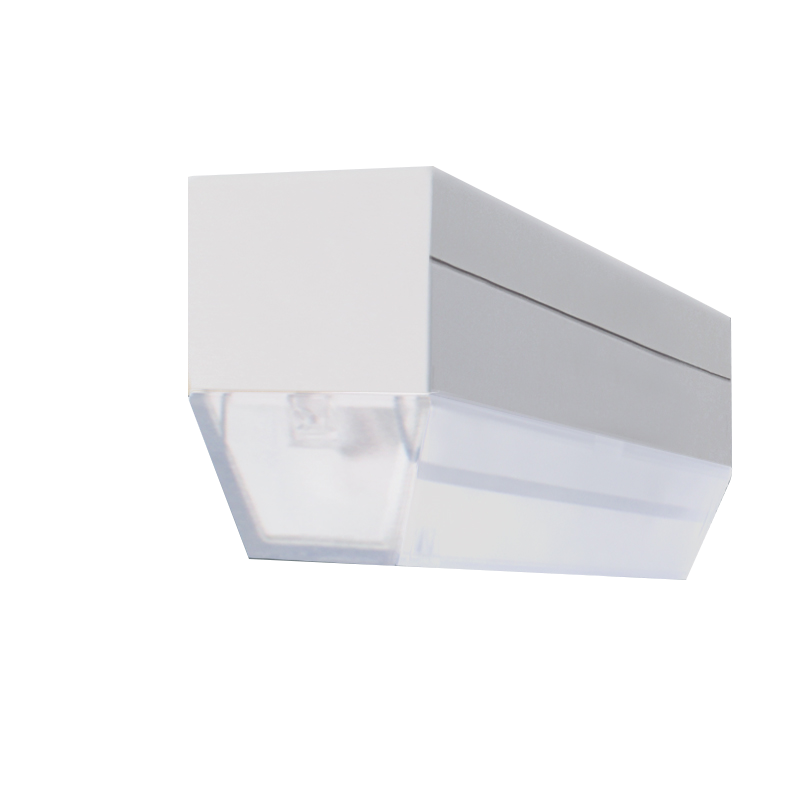

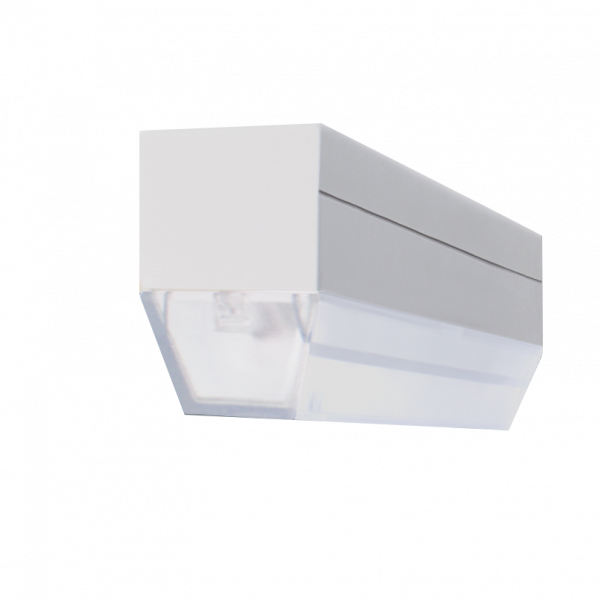

      M30UH

        M30 Compact Polycarbonate luminaire for universal mounting for the lighting of escape and rescue routes according to DIN EN 60598-1, DIN EN 60598-2-22 and EN 1838. Available for central power systems.

        M30 Compact Polycarbonate luminaire for universal mounting for the lighting of escape and rescue routes according to DIN EN 60598-1, DIN EN 60598-2-22 and EN 1838. Available for central power systems.

        Features

        • Universal Mount Compact Polycarbonate LED luminaire with Elegant design.
        • Developed as per latest European Standards DIN EN 60598-1, DIN EN 60598-2-22 & EN 1838.
        • High lumen output will provide better spacing.
        • Well compatible for Corridor, Staircase & High Ceiling area mounting.
        • Complying EMC (Elector Magnetic Compatibility) & Immunity Requirement as per EN 61000 & EN 61547.

        Technical Specifications

        Emergency Duration 3 hours
        Max. Consumption 5.2W LED
        Lumen Output 520lm
        Ambient Temperature  -5 °C up to +40 °C
        Ingress Protection Rating IP40
        Protection Class II
        Mounting Type Universal
        Housing Polycarbonate, White
        RAL Code 9003
