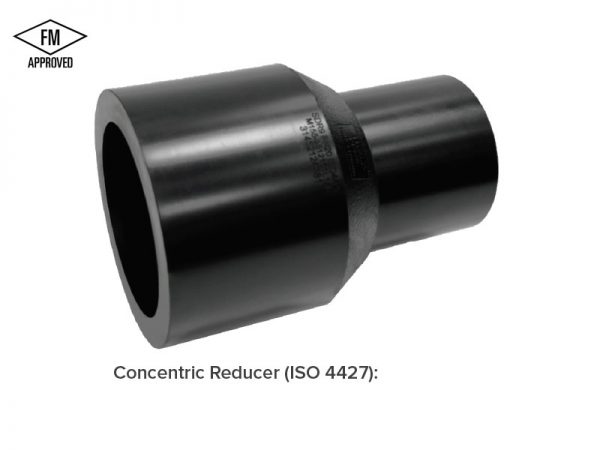

SD-PEMCR

(PE 100 Long spigot version)

*NOTE:

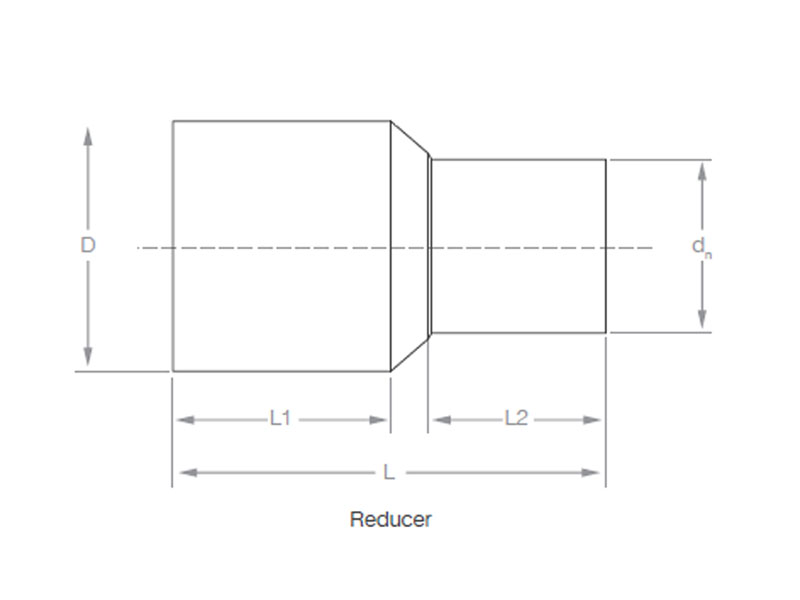

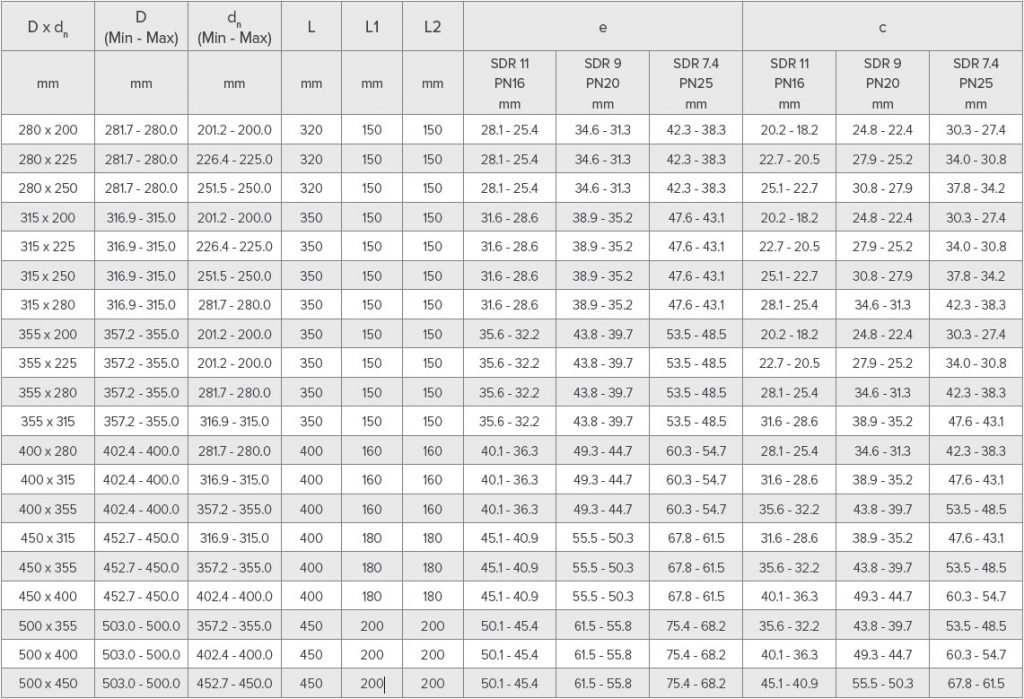

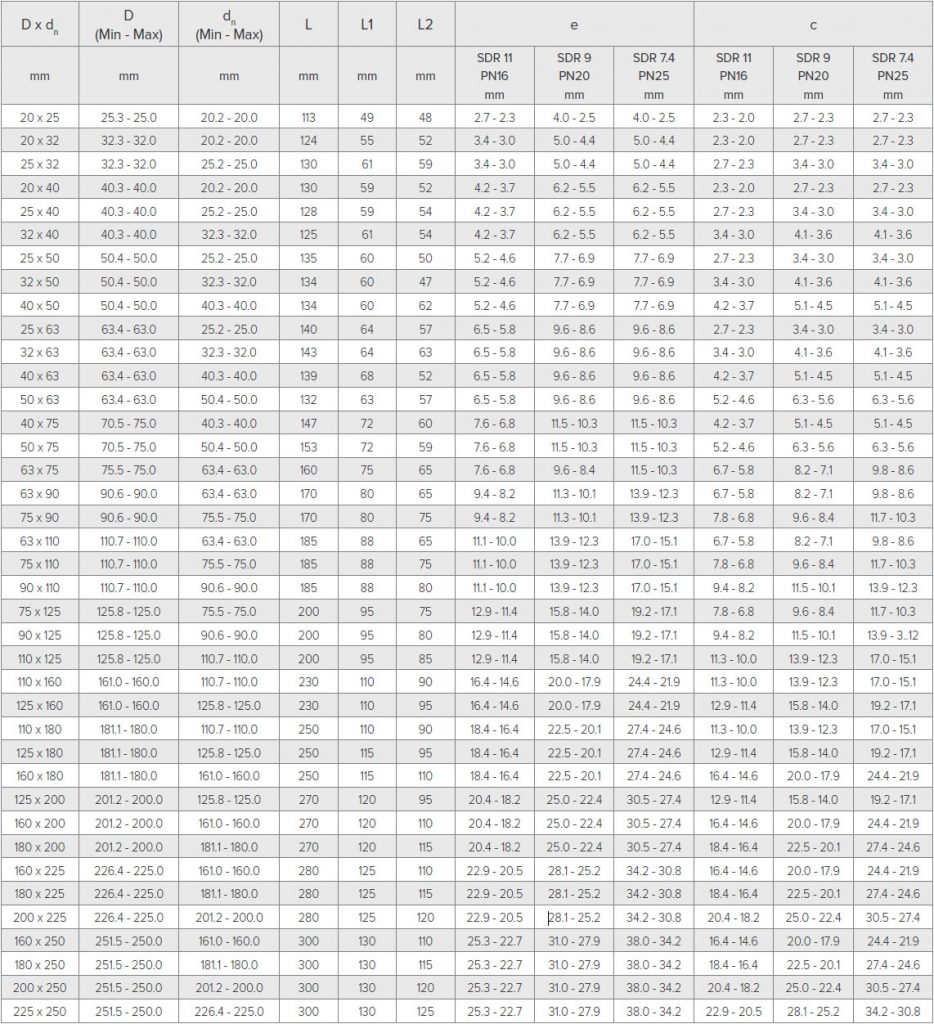

• The tolerance limit for the dimensions (Ø, R, L1 & H) will be ±5 mm.
• e & c = Thickness.
• SDR 11 – 16 bar water/10 bar gas.
• Refer to FM certificate for more details.
• Other SDRs are also available upon request.
