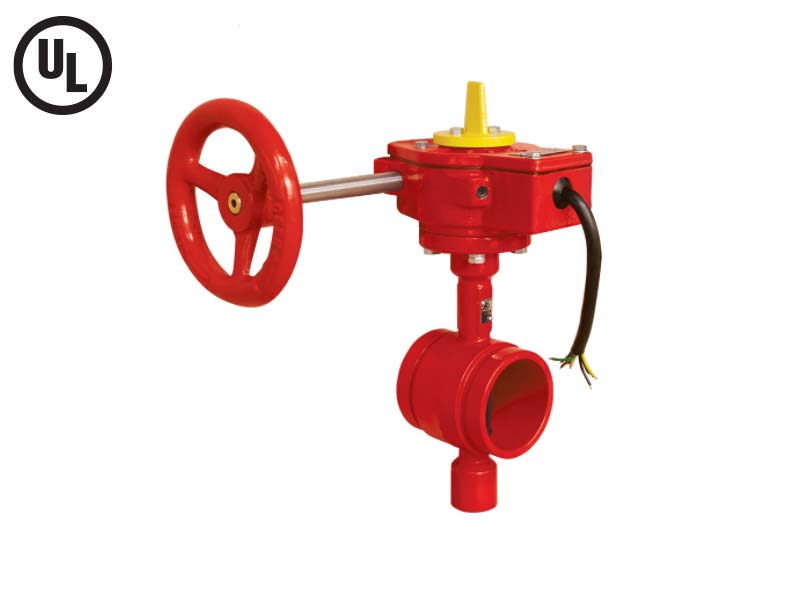

BUTTERFLY VALVES, GROOVED END
MODEL: SD-300G-BV, SD-300GK-BV
Specifications
- Working pressure: 300psi
- Connection end: Grooved to AWWA C606
- Temperature: 0° C to 80° C
- Coating: Fusion Bonded Epoxy Coating complies with ANSi/AWWA C550

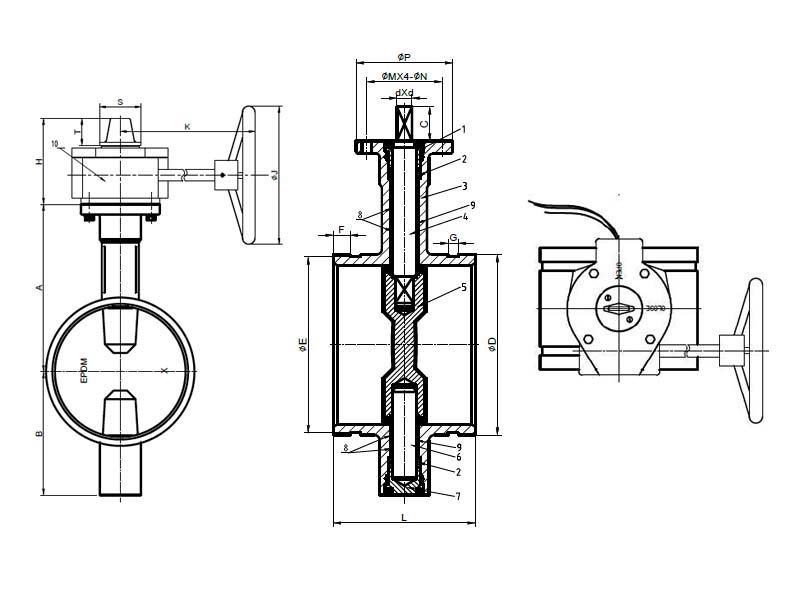

MODEL: SD-300G-BV
| Part No. | Part Name | Material |
| 1 | Upper Shaft Sealing Nut | WCB |
| 2 | Shaft Seal | EPDM |
| 3 | Body | ASTM A536 |
| 4 | Upper Shaft | SS416 |
| 5 | Disc + Rubber Seat | Ductile Iron + EPDM |
| 6 | Lower Shaft | SS416 |
| 7 | Lower Shaft Sealing Nut | WCB |
| 8 | Stem Bush | PTFE/C5400 |
| 9 | O-Ring | EPDM |
| 10 | Gear Box |

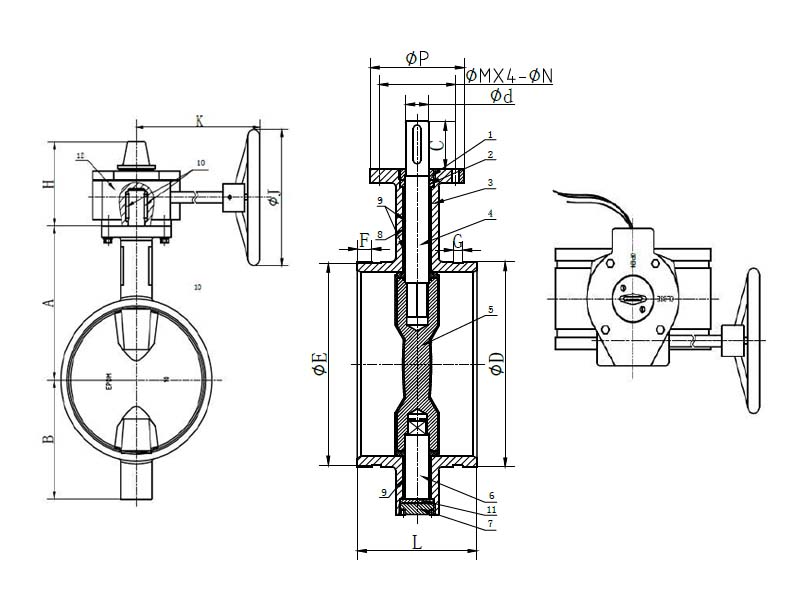

MODEL: SD-300GK-BV
| Part No. | Part Name | Material |
| 1 | Upper Shaft Sealing Nut | WCB |
| 2 | Shaft Seal | EPDM |
| 3 | Body | ASTM A536 |
| 4 | Upper Shaft | SS416 |
| 5 | Disc + Rubber Seat | Ductile Iron + EPDM |
| 6 | Lower Shaft | SS416 |
| 7 | Lower Shaft Sealing Nut | WCB |
| 8 | O-Ring | EPDM |
| 9 | Stem Bush | C95400+Graphite |
| 10 | Key WCB | WCB |
| 11 | Lower Shaft Seal* EPDM | EPDM |
| 12 | Gear Box |
