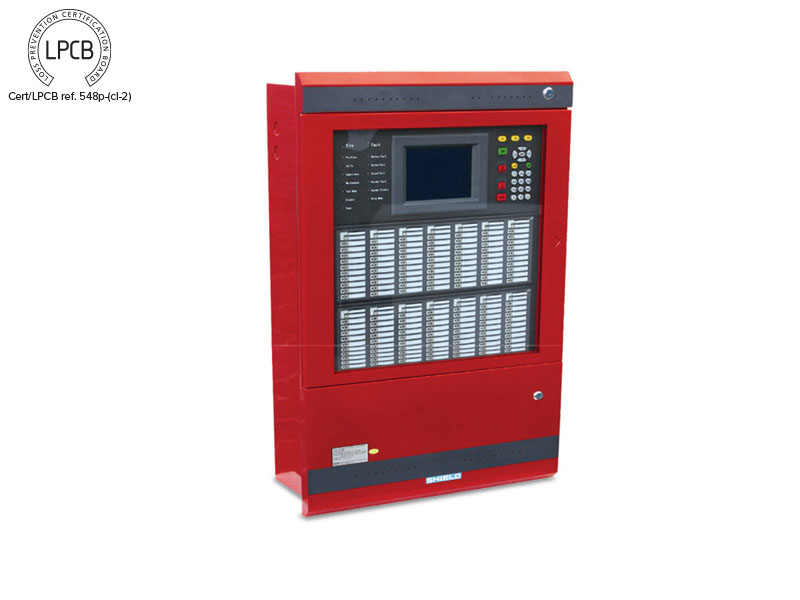

      Analog Control Panel (up to 8 Loop)

        • 8 x Loops (242) capacity (1936) addressable points
        • Max 10 Loops Standalone
        • Comply with EN54 and UL864
        • Modular constructed for future expansion
        • 40 x15 lines Colour Graphical LCD Display
        • Up to 999 programmable zones and 140 Zone indication
        • Networked with all SHIELD Intelligent Fire panels up to 64 Nodes, Optional Fiber Optic and LAN Network Interface.
        • RS 485 mimic and repeater output up 64
        • RS 232-USB CRT interface, including P-CGS graphic
        • History record-999 fire incident only and 999 event capacity in non-volatile memory
        • Online/Offline Programmable form PC
        • Walk Test Function with optional silent mode
        • Fully simulation of Cause and Effect
        • Advanced user friendly programming software including ‘Fuzzy Logic’.
        • Built in Fire Alarm, FPE, Fault and Alarm Router output
        • Auto Programming Day and Night Mode
        • Enable and Disable function
        • Pre-Alarm and Acknowledge Function
        • Duplicate address checking
        • Device mismatch
        • Dirty Detector Reporting
        • Panel Printer included
        • Built in Battery charger
        • 8 x Loops (242) capacity (1936) addressable points
        • Max 10 Loops Standalone
        • Comply with EN54 and UL864
        • Modular constructed for future expansion
        • 40 x15 lines Colour Graphical LCD Display
        • Up to 999 programmable zones and 140 Zone indication
        • Networked with all SHIELD Intelligent Fire panels up to 64 Nodes, Optional Fiber Optic and LAN Network Interface.
        • RS 485 mimic and repeater output up 64
        • RS 232-USB CRT interface, including P-CGS graphic
        • History record-999 fire incident only and 999 event capacity in non-volatile memory
        • Online/Offline Programmable form PC
        • Walk Test Function with optional silent mode
        • Fully simulation of Cause and Effect
        • Advanced user friendly programming software including ‘Fuzzy Logic’.
        • Built in Fire Alarm, FPE, Fault and Alarm Router output
        • Auto Programming Day and Night Mode
        • Enable and Disable function
        • Pre-Alarm and Acknowledge Function
        • Duplicate address checking
        • Device mismatch
        • Dirty Detector Reporting
        • Panel Printer included
        • Built in Battery charger

        Specification

        Standard EN54 Part 2/4; BS5839 part 4
        Approvals LPCB, CE
        Main Input Voltage 220 ± 10% VAC 50/60 Hz (PSU)
        Input Current Rating 1 A
        System Operating Voltage 24 VDC Nominal (20-27 VDC)
        Loop Capacity 1-10:242- Address per loop
        Zone Capacity 999 zones programmable
        Operating Temperature 0°C to +40°C at 95% relative humidity
        24 VDC Fused Relay Output Maximum Load 500mA at 17-28 VDC
        Zone Capacity 30 Zones Programmable
        Standby Batteries Twin 12Volt Battery (PSU)
        Sounder Circuits(3) Fire Alarm Output: 200mA/24Vdc/4.7Ω EOLR
        F.P.E. Output: 500mA/24Vdc/4.7Ω EOLR
        Sounder Circuit Output: 1A/24Vdc/4.7Ω EOLR
        Fuses Mains 1A (20mm A/S ceramic),
        Sounders (2): 1A (20mm A/S),
        Fire alarm Output 0.5A (20mm A/S),
        Battery: 2A (20mm A/S HRC ceramic)
        Common Fault Relay Output Volt-Free changeover (NO/NC) 1.0A at 24 VDC
        Battery Charging Current Limit 600mA
        Event Capacity 999 events plus 999 fire event only
        Protection Rating IP 42
        Dimension (HxLxW) Outer: 850x484x185 mm,
        Inner: 804x440x150 mm
