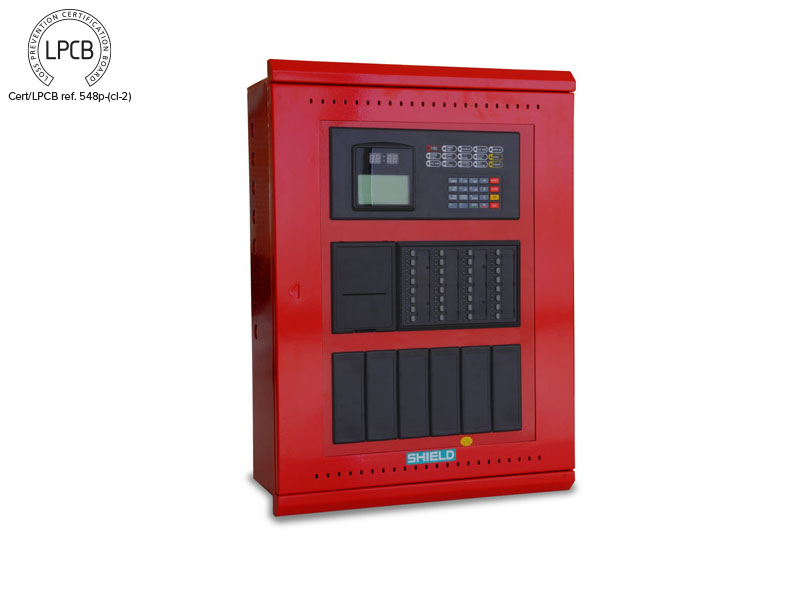

    Analog Control Panel (1 Loop)

    • Loop capacity 235 addresses loop 1 can be expanded to 2 loops
    • 8×18 Graphical LCD Display
    • 30 Zone indication including manual intervention and control
    • 3 programmable alarm output
    • Positive Alarm Signal (PAS) Pre-alarm
    • Maintenance report of dirty detector
    • Networkable with all SHIELD Intelligent Fire Alarm panels
    • Programmable form PC by SHIELD
    • History log 999-events capacity in non-volatile memory
    • Test facility
    • RS485 Repeater Output (Max. 10)
    • Built-in gas extinguishing control.
    • Advanced user friendly programming software including ‘Fuzzy Logic’
    • Optional Colour Graphics
    • Optional Fireman’s Control Panel
    • Optional Panel Printer
    • Loop capacity 235 addresses loop 1 can be expanded to 2 loops
    • 8×18 Graphical LCD Display
    • 30 Zone indication including manual intervention and control
    • 3 programmable alarm output
    • Positive Alarm Signal (PAS) Pre-alarm
    • Maintenance report of dirty detector
    • Networkable with all SHIELD Intelligent Fire Alarm panels
    • Programmable form PC by SHIELD
    • History log 999-events capacity in non-volatile memory
    • Test facility
    • RS485 Repeater Output (Max. 10)
    • Built-in gas extinguishing control.
    • Advanced user friendly programming software including ‘Fuzzy Logic’
    • Optional Colour Graphics
    • Optional Fireman’s Control Panel
    • Optional Panel Printer

    Specification

    Standard EN54 Part 2/4; BS5839 part 4
    Approvals LPCB, CE
    Main Input Voltage 220 ± 10% VAC 50/60 Hz
    Input Current Rating 0.500A
    System Operating Voltage 24 VDC Nominal (20-27 VDC)
    Loop Capacity Loop 1:235; Loop 2:241 (Address)
    Loop Length 1.00mm2-800M-Full Load
    1.5mm2-1.2KM-Full Load
    2.0mm2-1.5KM-Half Load
    Loop Topology Class A and Class B
    24 VDC Fused Relay Output Maximum Load 500mA at 17-28 VDC
    Zone Capacity 30 Zones Programmable
    Standby Batteries Twin 12Vdc; Bat: 24H
    Sounder Circuits(3) Fire Alarm Output: 500mA/24Vdc/NO-NC
    F.P.E. Output: 500mA/24Vdc/NO-NC
    Sounder Circuit Output: 500mA/24Vdc/NO-NC
    Fuses Mains 2A (20mm A/S ceramic),
    Sounders (2): 1A (20mm A/S),
    Fire alarm Output 0.5A (20mm A/S),
    Battery: 2A (20mm A/S HRC ceramic)
    Common Fault Relay Output Volt-Free changeover 1.0A at 24 VDC
    Battery Charging Current Limit 600mA
    Dimension Outer: 580x420x30 mm,
    Inner: 550x393x173mm
