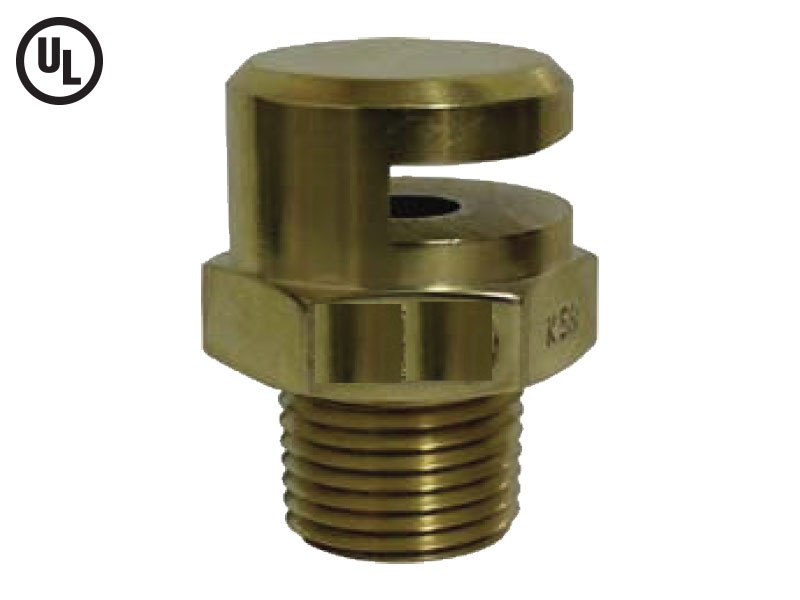

      TANK COOLING NOZZLE

        MODEL: SD-TCB, SD-TCS

        The Tank Cooling Nozzle distributes water in a flat curtain. Tank Cooling Nozzle is typically mounted in upright position at a distance from the exterior wall of the tank for cooling of the tank. In case of fire in the vicinity of the tank it prevents the tank from absorbing the heat radiation.

        Tank Cooling Nozzles are available in Brass and Stainless Steel construction with different k-factors.

        The main pipeline strainers as per NFPA -15 are required for system utilizing nozzles with orfice diameter less than 9.5 mm (⅜ inch).

        MODEL: SD-TCB, SD-TCS

        The Tank Cooling Nozzle distributes water in a flat curtain. Tank Cooling Nozzle is typically mounted in upright position at a distance from the exterior wall of the tank for cooling of the tank. In case of fire in the vicinity of the tank it prevents the tank from absorbing the heat radiation.

        Tank Cooling Nozzles are available in Brass and Stainless Steel construction with different k-factors.

        The main pipeline strainers as per NFPA -15 are required for system utilizing nozzles with orfice diameter less than 9.5 mm (⅜ inch).

        Specification

        Model SD-TB in Brass ASTM B16
        SD-TS in S.S. construction
        Maximum Working Pressure 12.3 kg/cm² (175 PSI)
        Effective Working Pressure 1.4 to 3.5 kg/cm² (20 – 50 PSI)
        End Connection ½” BSPT
        (½” NPT Optional)
        K Factor K20, K32, K37, K42, K59 & K79
        Weight (Approx) 0.180 Kg
        Finish Chrome plated or Brass
        finish for SD-TCB
        Natural finish for SD-TCS
        Ordering Information Specify Model, K-Factor, Finish
