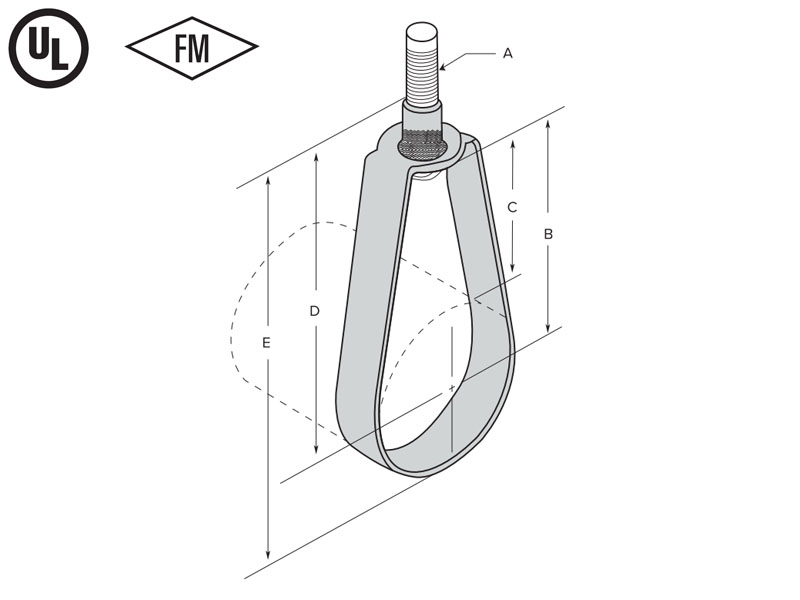

      Swivel Ring Hanger

        Click here to download the catalogue

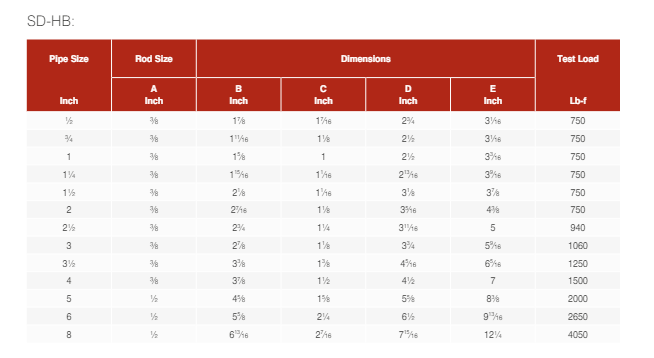

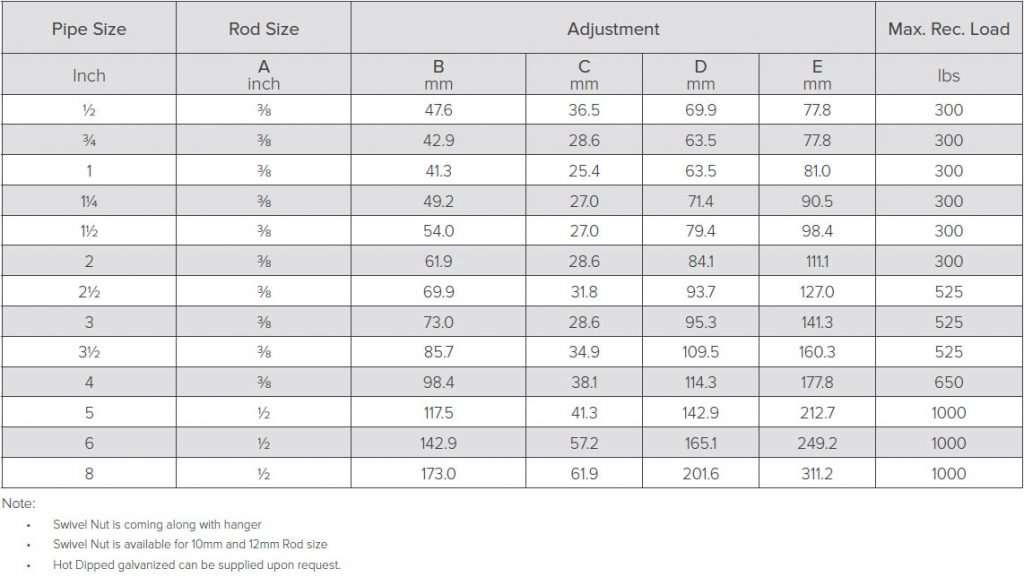

        SD-HB

        Features

        Material Low Carbon Steel to ASTM A653
        Nut Electro Galvanized to ASTM B633
        Finishing Galvanized

        Function

        Designed for the suspension of non-insulated stationary pipe lines. The insert nut allows a vertical adjustment after installation, is tapped to NFPA reduced rod size standards. SD-HBF has a layer of felt which separates the pipe from the hanger to reduce vibration and sound.

        Approvals

        Underwriters’ Laboratories listed and Factory Mutual approved ¾˝ to 8˝ sizes. Complies with Federal Specification WW-H-171E & A-A-1192 (Type 10), and Manufacturers’ Standardization Society MSS SP-69 & SP-58 (Type 10).
