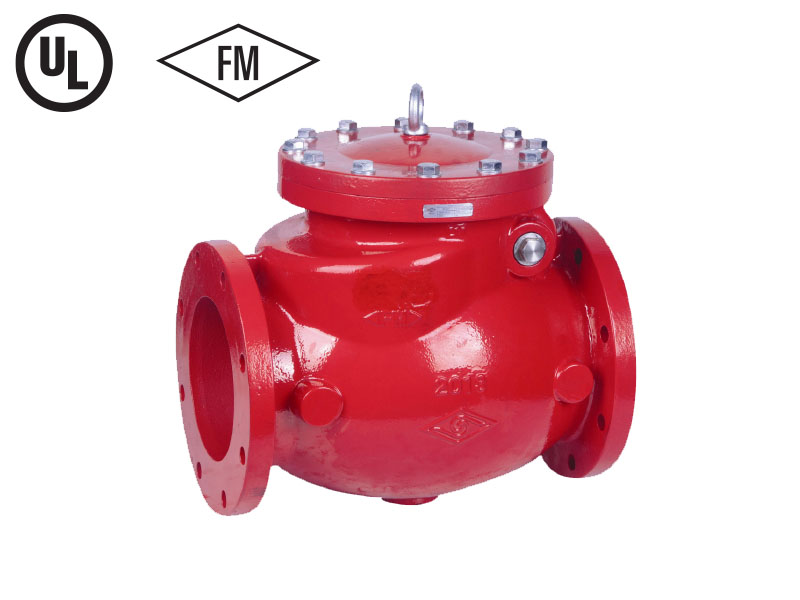

      SWING CHECK VALVE

        MODEL:

        • SD-NRV200FF-D / SD-NRV300FF-D
        • SD-NRV200CV
        • SD-NRV250CV
        • SD-NRV200GG-D / SD-NRV250GG-D / SD-NRV300GG-D

        MODEL:

        • SD-NRV200FF-D / SD-NRV300FF-D
        • SD-NRV200CV
        • SD-NRV250CV
        • SD-NRV200GG-D / SD-NRV250GG-D / SD-NRV300GG-D

        Features

        MODEL: SD-NRV200FF-D / SD-NRV300FF-D

        • Working pressure: 200 & 300 psi
        • Connection ends: Flange to ASME B16.1 Class 125
        • Temperature range: 0ºC to 80ºC
        • Coating: Fusion bonded epoxy coating internally and externally in accordance with ANSI/AWWA C550

        MODEL: SD-NRV200CV

        • Working pressure: 200 psi
        • Connection ends: Flange to ASME B16.1 Class 125
        • Bolted bonnet. Horizontal swing. Renewable seat and disc.
        • Temperature range: -29ºC to 66ºC
        • Bronze trimed disc, 125 psi steam @232° C,. Non-shock cold water oil or gas.
        • Conform to MSS SP-71.

        MODEL: SD-NRV250CV

        • Working Pressure 250 psi. Cold water pressure (Max. temp. 63ºC)
        • Flanged Ends to ANSI B16.1 Class 125
        • Ductile Iron Body with EPDM
        • Epoxy coated interior / exterior to AWWA C550
        • Dual Plate Construction

        MODEL: SD-NRV200GG-D / SD-NRV250GG-D / SD-NRV300GG-D

        • Working pressure: 200, 250 & 300 psi
        • Connection ends: Groove to AWWA C606
        • Temperature range: 0ºC to 80ºC
        • Coating: Fusion Bonded Epoxy Coating in accordance with ANSI/AWWA C550 or painting upon request
