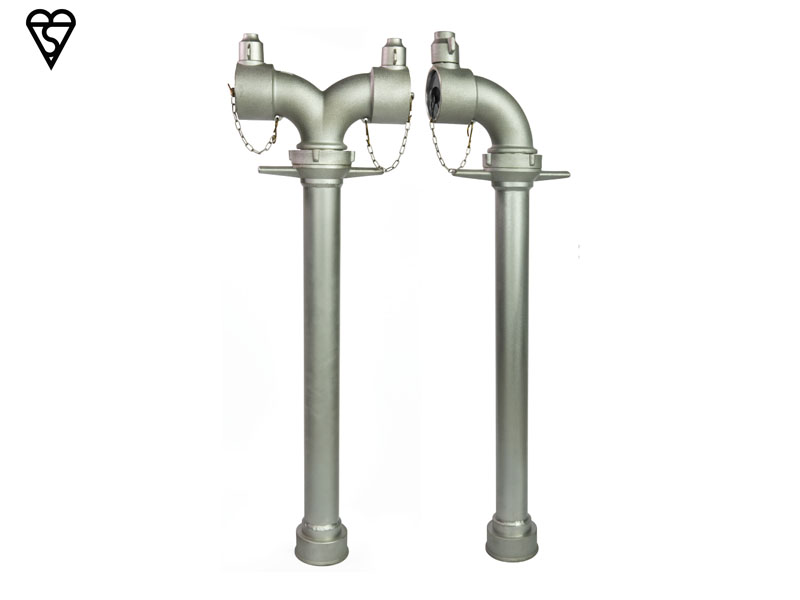

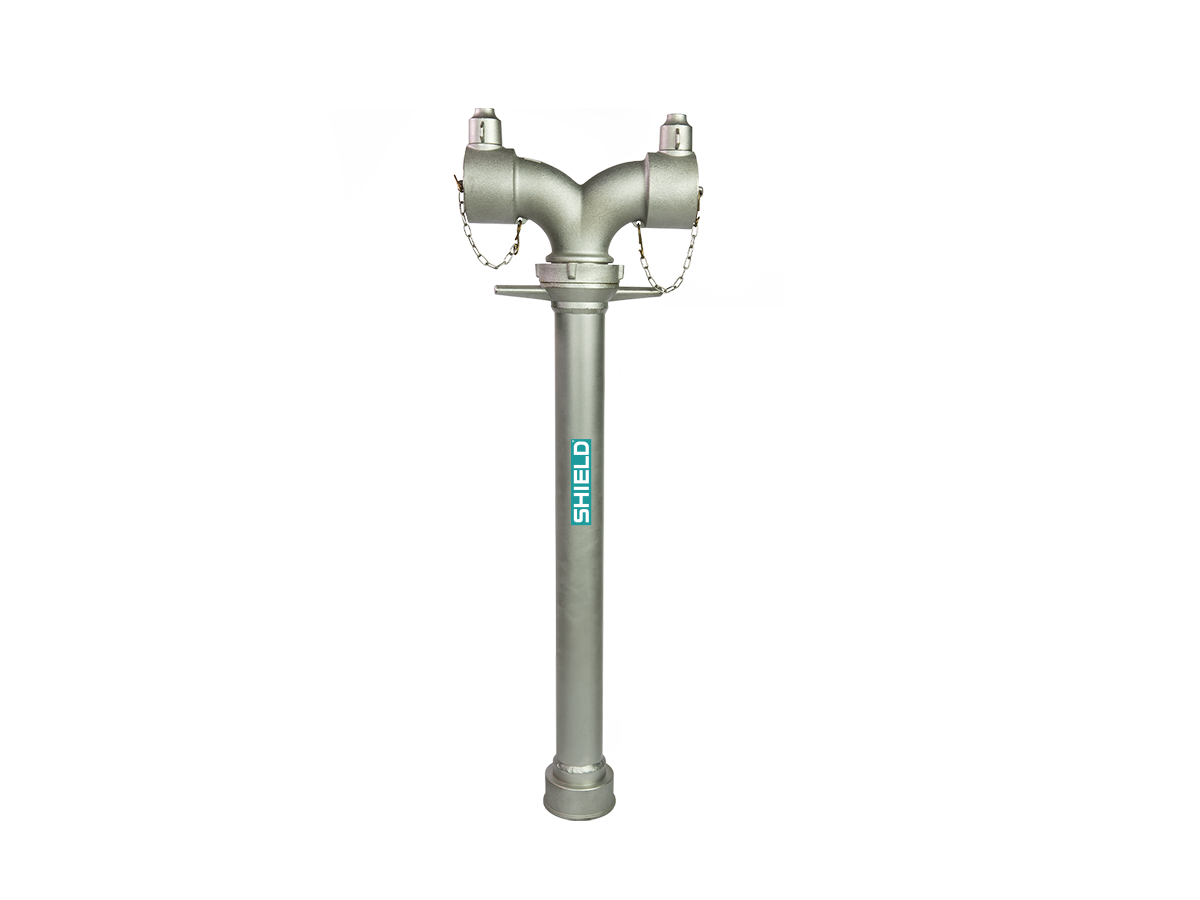

      STAND PIPE OUTLET (SINGLE & DOUBLE)

        NAFFCO Standpipes are suitable for installation on underground hydrants for firefighting purpose changed with water from a pressurized supply.

        These standpipes are designed and manufactured to comply BS336:2010 Standard with screwed inlet threaded and comprising of male instantaneous connections.

        SDHYD

        BILL OF MATERIAL

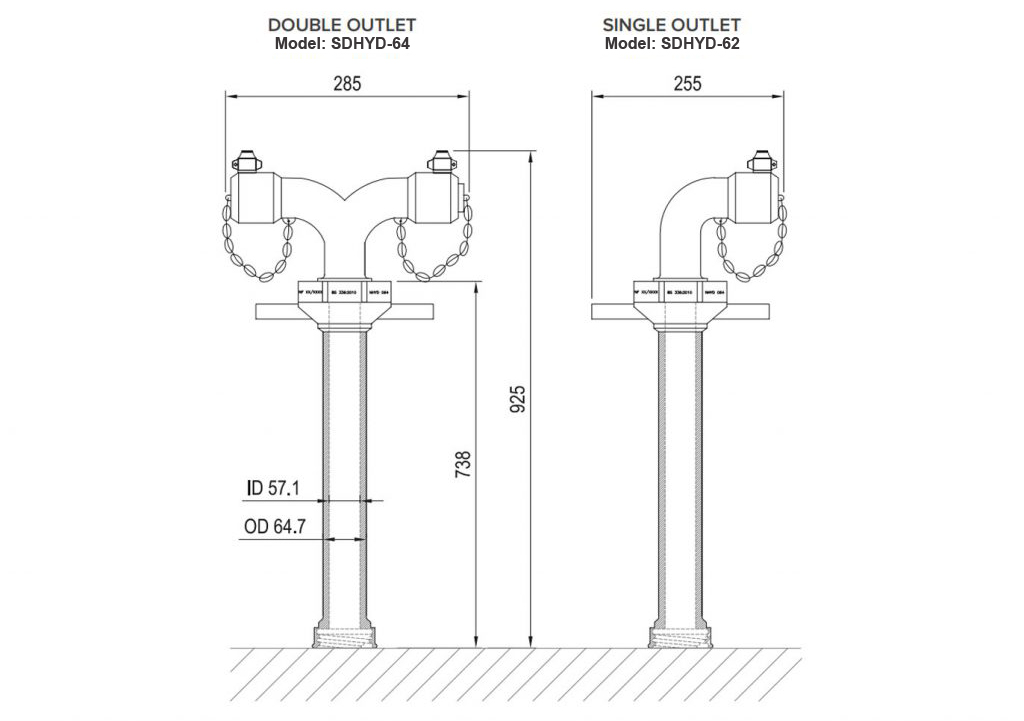

        Model Number SDHYD-62 SDHYD-64
        Type Single Outlet Double Outlet
        Material Aluminium Alloy
        Inlet Connection 3″ female BSRT to BS336
        Outlet Connection 1 x 2 ½” female instantaneous coupling
        to BS 336        		 2 X 2 ½” female instantaneous coupling
        to BS 336
        Test Pressure 24 BAR for 2 minutes

        Features

        • BSI Kitemark approved
        • Body material made of Aluminum Alloy
        • Standpipes are designed with swivel upper end so that at the outlets can be rotated 360º for operation

        Resources

        Download Datasheet
