      Smoke Detector

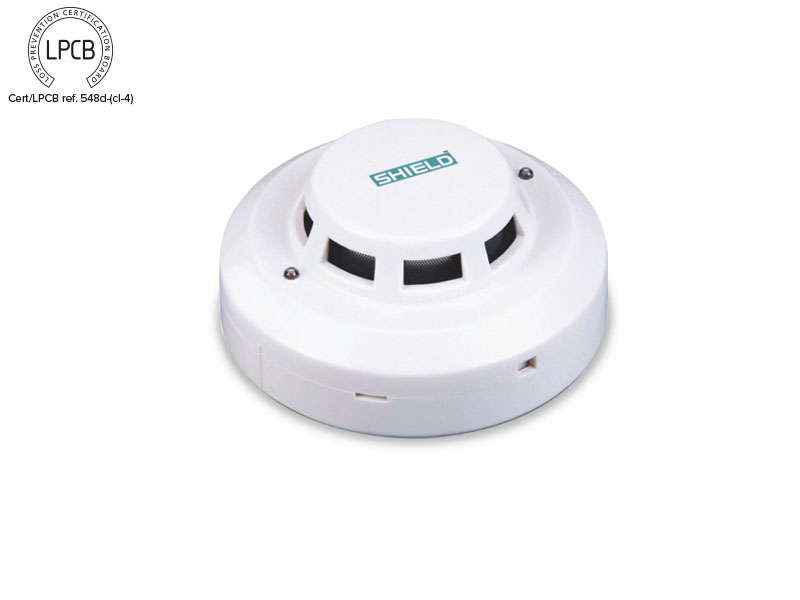

        D-C401 Conventional Photoelectric Smoke Detector is non-addressable. Used together with end of line unit, it can connect with compatible control panels to process detection signals.

        • Twin LED for 360° view.
        • Remote indicator output available.
        • Complies with EN 54-7 standard.

        D-C401 Conventional Photoelectric Smoke Detector is non-addressable. Used together with end of line unit, it can connect with compatible control panels to process detection signals.

        • Twin LED for 360° view.
        • Remote indicator output available.
        • Complies with EN 54-7 standard.

        Specification

        Operating Voltage 24VDC (12VDC~28VDC)
        Standby Current ≤60µA
        Alarm Current 10mA≤I≤30mA
        Indicators Red. Quiet in normal condition. Illuminates steadily in alarm.
        Remote Indicator Output Directly connecting with LED (built-in 2k resistor in series). Quiet in normal condition. Illuminates steadily in alarm.
        Maximum Ripple Voltage 4V (peak-to-peak value)
        Alarm Clear Instantaneous Power-off (5s Max., 2.5VDC Max.)
        Power-up Time ≤10s
        Max. Wind Speed 7.6m/s (1500fpm)
        Wiring Polarized 2-core for detection zone cable.
        Polarized 2-core for remote indicator.
        Ambient Temperature -10°C to +50°C
        Relative Humidity ≤95%, non condensing
        Ingress Protection Rating IP23
        Material and Color of Enclosure ABS, white (RAL9016)
        Dimensions Diameter: 100mm
        Height: 56mm (with base)
        Mounting Hole Distance 45mm~75mm
        Weight About 120g
