(PE 100/PE 4710 – Long spigot version)

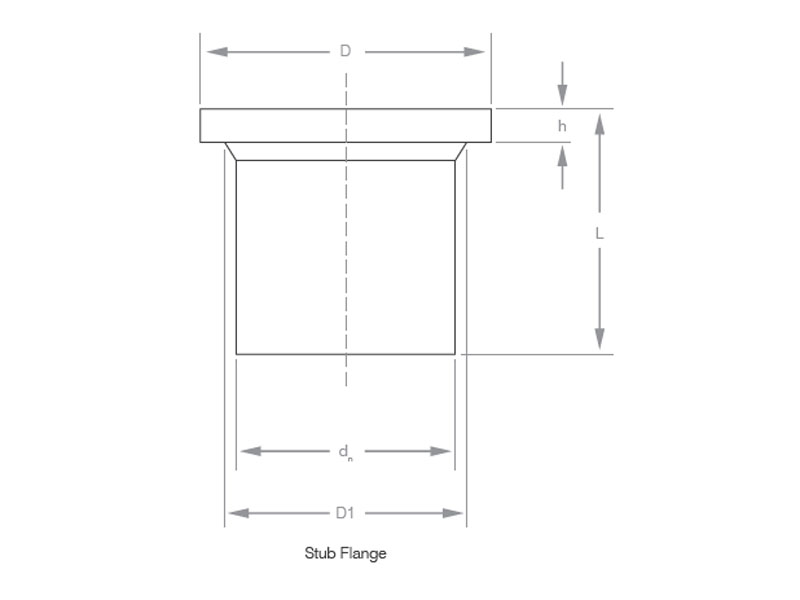

• The tolerance limit for the dimensions (D, D1, L, L1 & h) will be ±0.2 inch.
• e = Thickness.

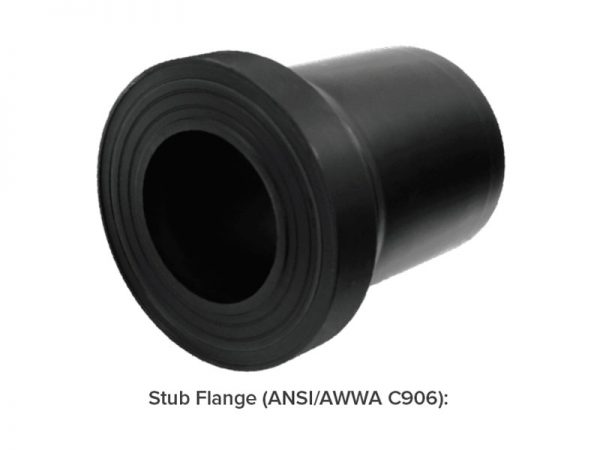

• This product “Stub Flange’ is usually used with G.I. backing ring and an EPDM rubber gasket, the whole assembly is called flange adapter set.
• Refer to FM certificate for more information.
