Pneumatic Elbow, Tees and Flex Hoses

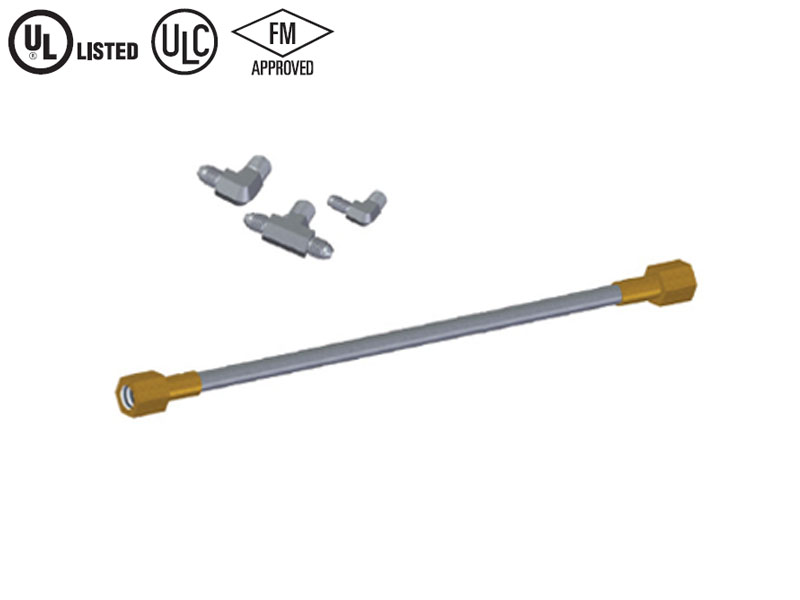

Shield offers pneumatic elbow, tees and flex hoses to insure that proper connections are made between master and slave cylinders. The SD700021 elbow attaches to the “M” port of the master cylinder valve. The SD700033 elbow is used on the slave cylinder pneumatic actuator, located at the end of a cylinder in a bank. The pneumatic tee, SD700032, is used to attach multiple pneumatic activators to one master cylinder. Refer to the Shield Design, Installation, Operation & Maintenance Manual (SD000003) for more information on the proper design of master and slave cylinder banks.
