Open Area Sounder

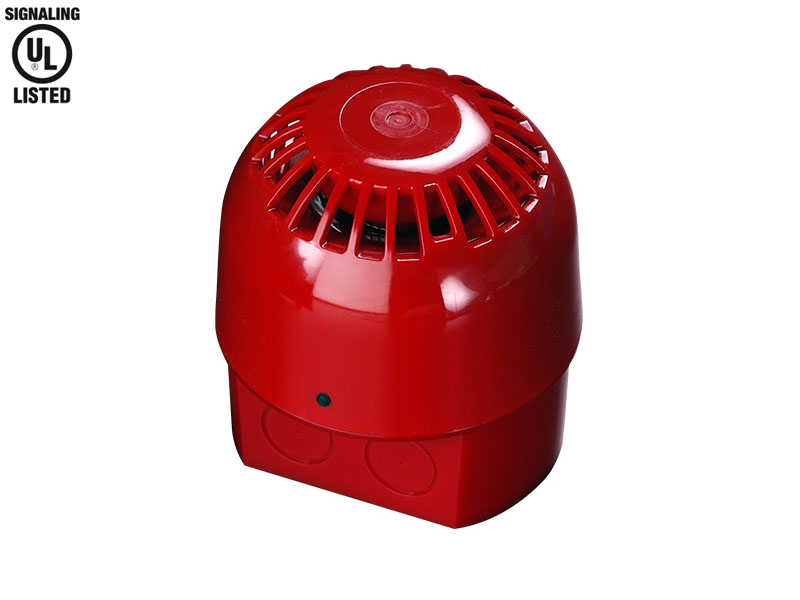

SHIELD Open-Area Sounder has been designed for use in open areas and can be connected to any UL or SHIELD system.

SHIELD Open-Area Sounder has been designed for use in open areas and can be connected to any UL or SHIELD system.

Features

Self-test trouble monitoring
Two volume settings 92dB(A) and 100dB(A)
Synchronization of tones
Individual and group addressing
Available in red or white
Loop-powered
IP65 rated

Specification

Operating Voltage	17 – 28 V DC
Maximum Low Current at 24 V	Normal Standby	< 310μA
	Operated	28V Highest Audibility 5.4 mA
	Operated Switch On Surge	< 6 mA for IS
IP Rating	65

Resources

	Download Brochure
	Download Data Sheet
