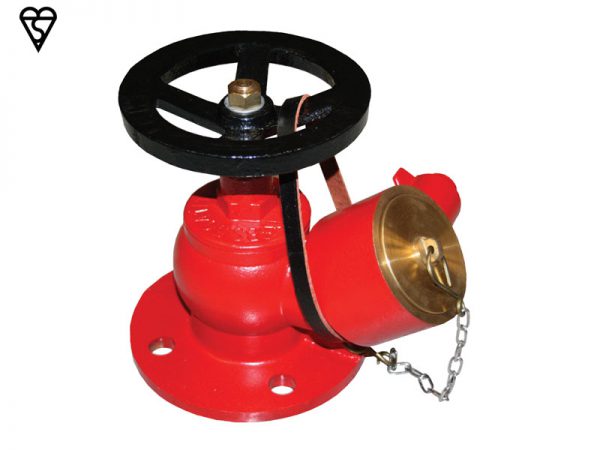

      OBLIQUE LANDING VALVE, FLANGED INLET

        SHIELD landing valves are suitable for installation on wet risers in a building for fire fighting purposes with permanently charged water from a pressurised supply.

        The landing valves are oblique type with flanged inlet and are manufactured to comply to BS 5041 Part 1 standard with delivery hose connection and blank cap complying with BS 336:2010 standard.

        The landing valves are classified under low pressure and are suitable for use at nominal inlet pressure up to 15 bar.

        SD LVF-50

        Features

        • BSI Kitemark certified.
        • Body material made of copper alloy to EN 1982
        • Hand wheel material made of grey cast iron to BS EN 1561.
        • Blank cap material made of copper alloy to EN 1982.
        • Possible to replace the gland seal when under pressure with the valve fully closed.
        • Disc facing rubber is of replaceable type.
        • Valves are provided with a strap and pad lock so that the hand wheel can be secured to counter unauthorized use.
        • The hand wheel is BLACK painted and body to RED.

        Resources

        Download Datasheet
