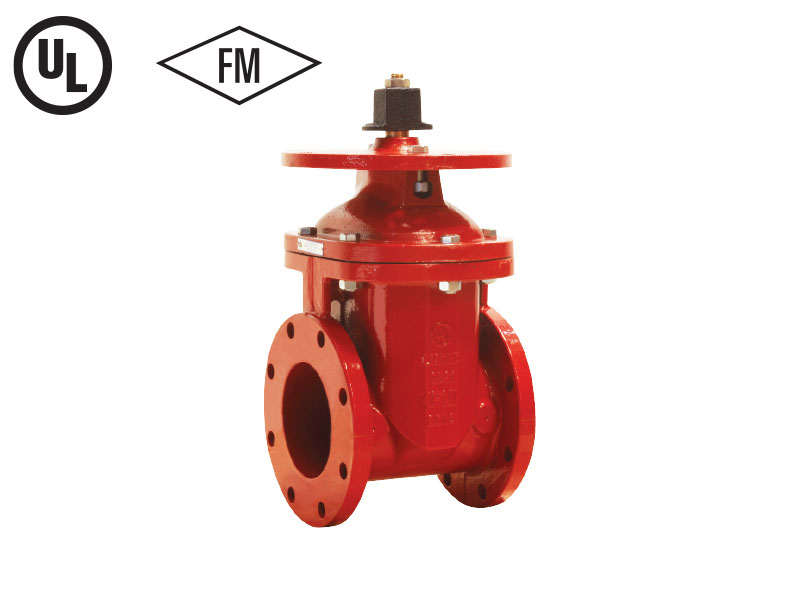

      NON RISING STEM GATE VALVE

        MODEL:

        • SD-NRS175GV
        • SD-NRS200FF-D, SD-NRS250FF-D, SD-NRS300FF-D
        • SD-NRS175FF-D1
        • SD-NRS250FF-D1

        MODEL:

        • SD-NRS175GV
        • SD-NRS200FF-D, SD-NRS250FF-D, SD-NRS300FF-D
        • SD-NRS175FF-D1
        • SD-NRS250FF-D1

        Features

        MODEL: SD-NRS175GV

        • Working pressure is 175 psi (non-shock cold water pres sure, max. temp. 63ºC)
        • Iron body, Bronze mounted, Non-rising stem, Parallel seats, Double disc
        • Mechanical Joint ends conform to AWWA C111 and ANSI A21.11
        • Flanged ends to ANSI B16.1 Class 125

        MODEL: SD-NRS200FF-D, SD-NRS250FF-D, SD-NRS300FF-D

        • Working pressure: 200 psi, 250 psi, 300 psi
        • Valve available with handwheel or with post indicator flange (without handwheel)
        • Connection ends: Flange to ANSI B16.1 Class 125
        • Temperature range: 0ºC to 80ºC
        • Coating: Fusion bonded epoxy coating internally and externally in accordance with ANSI/AWWA C550

        MODEL: SD-NRS175FF-D1

        • Connection Ends: Flange to ASME B16.1 CL 125
        • Working Pressure 300 psi, 200 psi and 250 psi available upon request.
        • Temperature Range: 0°C – 100°C
        • Coating: Fusion Bonded Epoxy Coating in accordance with ANSI/AWWA C550

        MODEL: SD-NRS250FF-D1

        • Working pressure is 250 psi
