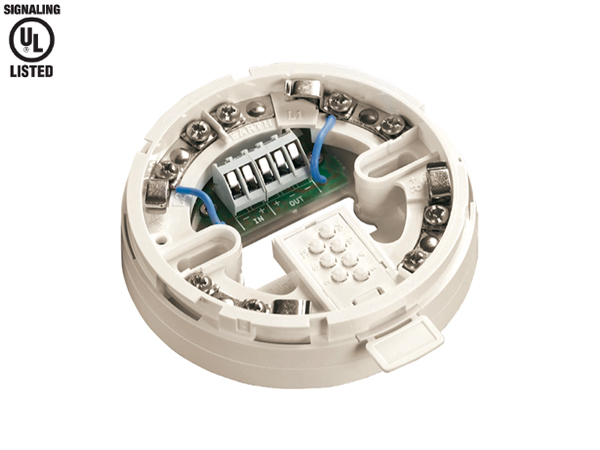

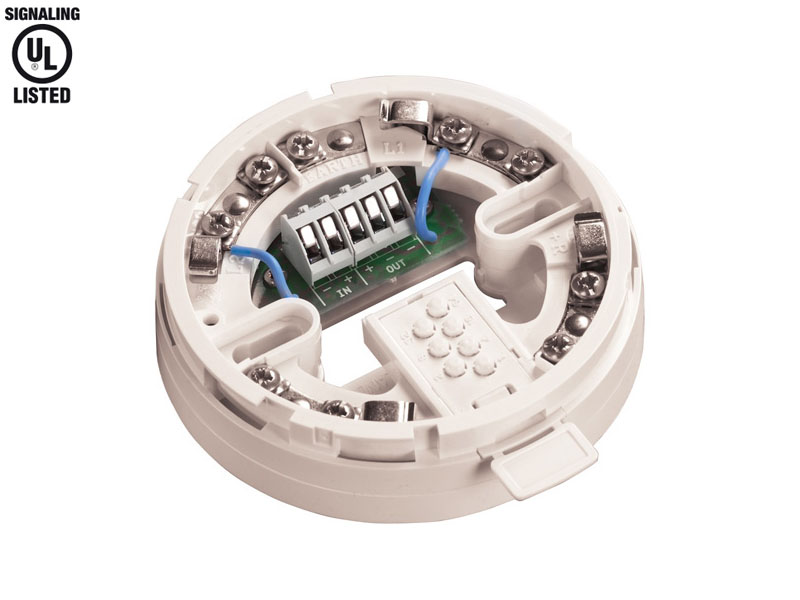

SHIELD Isolating Base senses and detects short circuit faults on loops and spurs.
Newsletter Subscription
Register with your email and be among the first to learn about our new products, latest price updates, special deals and great offers.
Features
- Up to 20 devices may be installed between isolating bases
- XPERT addressing
Specification
| Type | 20D Isolating Base |
|---|---|
| Working Voltage | 17 – 28 V DC |
| Modulation Voltage (peak to peak) | 5 – 9 V DC |
| Surge Current | 0 mA |
| Supervisory Current | 35 μA |
| Maximum Line Current | 1 A |
| Operating Temperature | -20°C to 68°C 0°C to 38°C* |
| Base Material | Polycarbonate, White, V–0 to UL94 |
| Dimensions (diameter x height) | 100 mm x 15 mm |
*(UL approved continuous operating range)
