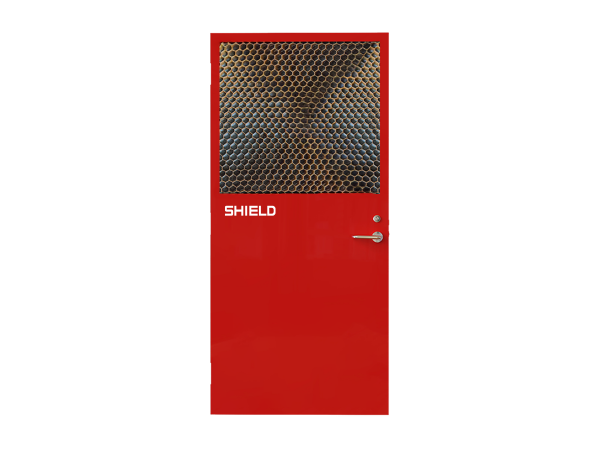

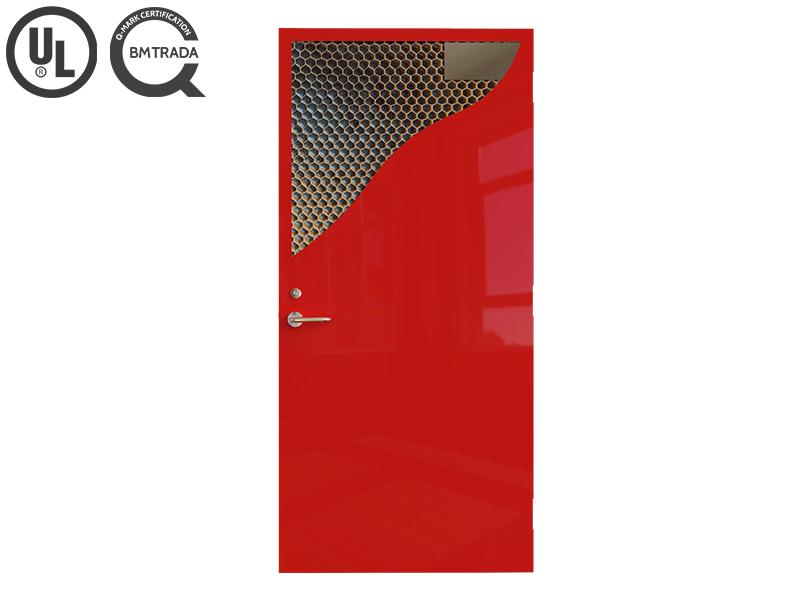

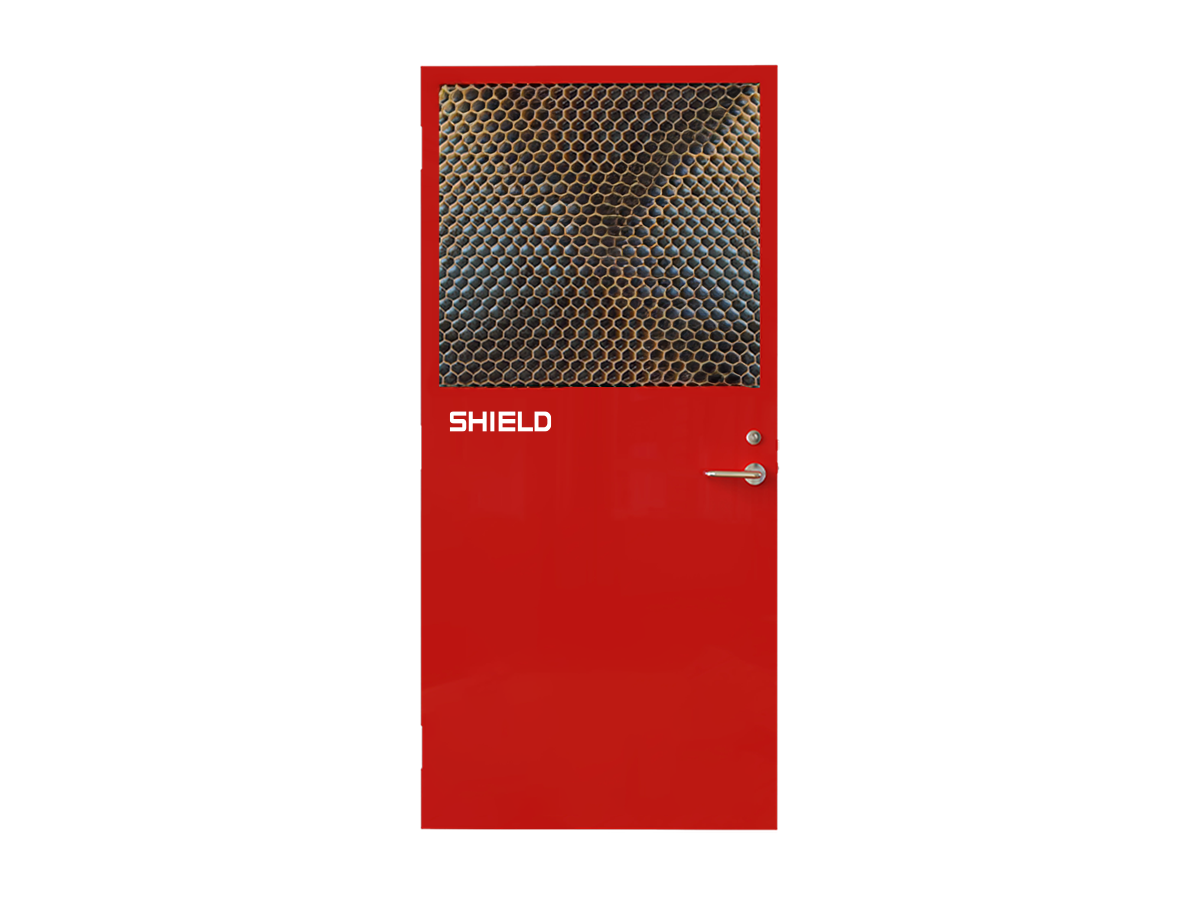

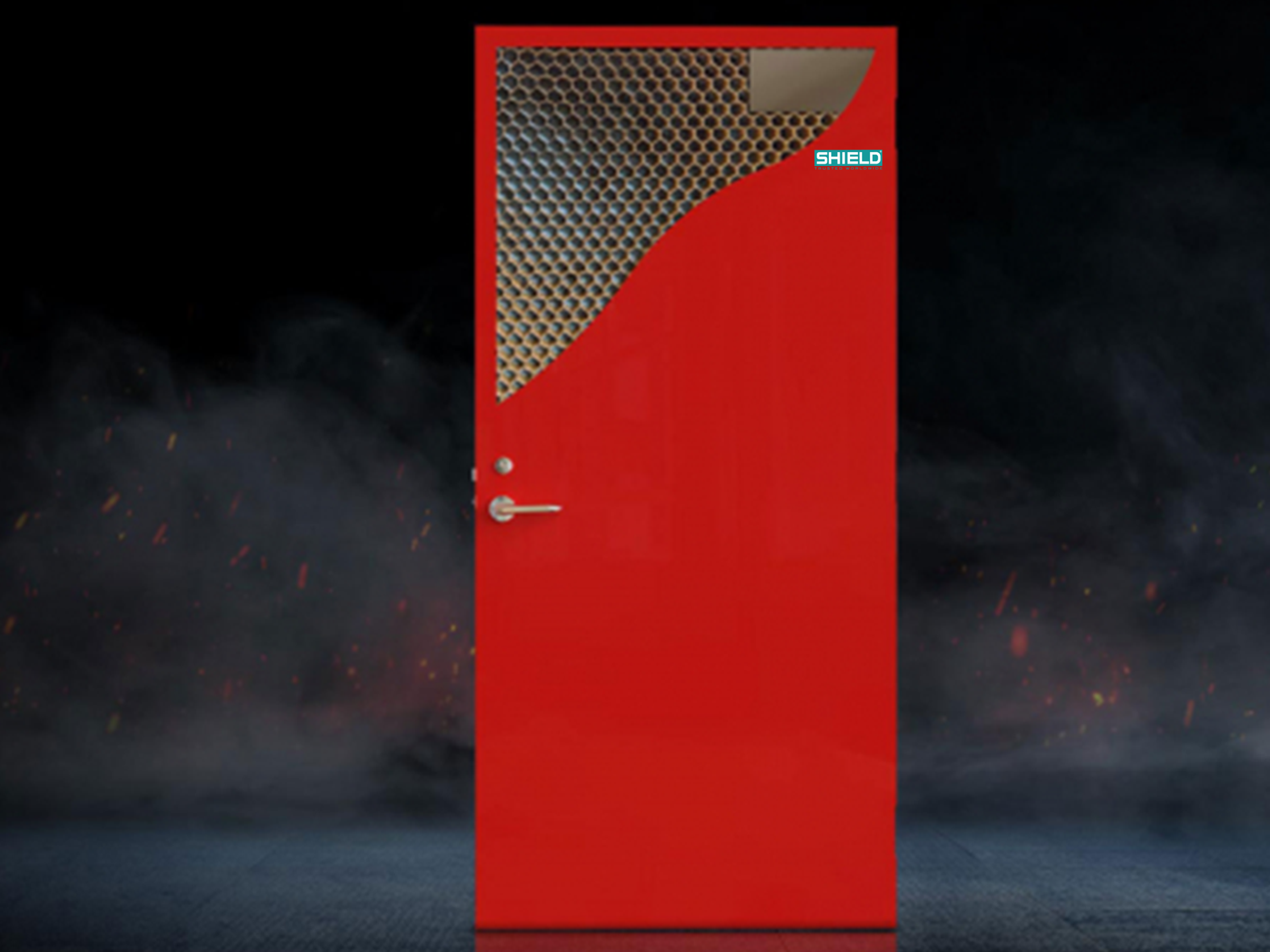

      Honey Comb Door

        Honeycomb Doors are highly economical doors which blend rigidity, durability, impact resistance and aesthetics in-addition to meeting exceptional level of flatness. These environmental friendly Doors have an excellent rigidity which is achieved by the numerous I-beam like structures formed by the Honeycomb Core. Being light weighted, these Doors take a very less toll on the Ironmongery used thereby ensuring the longevity of the Doors and the ironmongery.

        Click here to download the catalogue

        Areas of Application

        • Office
        • Motel/Hotel
        • Apartment
        • Urban Renewal
        • Healthcare
        • Institution
        • Mercantile
        • Public Utility
        • Factory
        • Warehouse
        • Portacabins

        Key Features

        • Highly Economical and Environmental Friendly
        • Cold Rolled Steel, Metallic Coated as per ASTM A 792 Standard offering Superior corrosion resistance
        • Kraft Honeycomb Core with smaller cells offering phenomenal flatness and structural rigidity / strength
        • Up to 180* Minutes Fire Integrity
        • Tested to UBC 7-2, ANSI/UL 10B, 10C (Positive Pressure Test Standard) or BS 476 Part 22 Standard
        • Sound Transmission Classification rating upto 34 dB
        • Thermal Characteristics: U Factor – 0.41, R Factor – 2.44
        • Mechanically interlocked vertical edge seam construction for added structural strength
        • 1-3/4” thick Door Leaf suited for wider selection of builders hardware
        • Suited for light, medium, heavy duty and extra-heavy duty usage
        • Bonding to both steel face sheets with full coat of polyurethane adhesive ensures corrosion resistance and structural rigidity
        • 16GA Inverted Top and Bottom end channels welded to both face sheets
        • Electrostatically Factory Powder Coated
        • 8GA Galvanized Steel Hinge Reinforcement and 13GA Galvanized Steel Closer Reinforcement

        Door Performance Level Chart

        Model Type Gauge Metric
        (in mm)        		 Physical Endurance
        (Cycle Testing)
        LEVEL 1 – LIGHT COMMERCIAL DUTY
        1 FULL FLUSH 18 1.2 1,000,000 Cycles
        2 SEAMLESS 18 1.2 1,000,000 Cycles
        LEVEL 2 – HEAVY COMMERCIAL DUTY
        1 FULL FLUSH 16 1.5 1,000,000 Cycles
        2 SEAMLESS 16 1.5 1,000,000 Cycles
        LEVEL 3 – EXTRA HEAVY COMMERCIAL DUTY
        1 FULL FLUSH 14 2.0 1,000,000 Cycles
        2 SEAMLESS 14 2.0 1,000,000 Cycles

        Resources

        Download Datasheet
