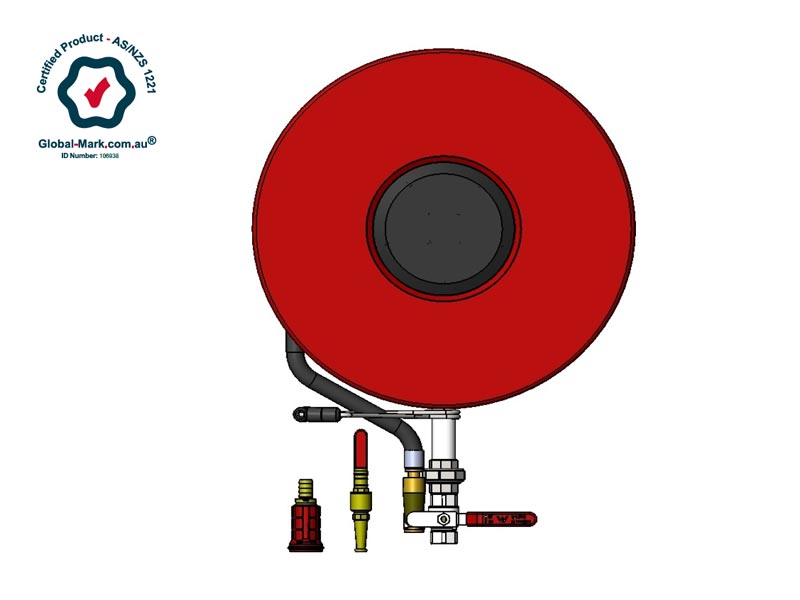

      Fire Hose Reel With Semi-Rigid Hose

        SHIELD fire hose reels provide a very effective fire fighting facility with a continuous supply of water available immediately. The construction and performance of a fire hose reel with semi-rigid hose ensures suitable installation in buildings and other construction works for use by the occupants.

        • Australian & New Zealand Standard AS/NZS 1221, certified by Global-Mark PLY Ltd.
        • The fire hose reels are capable of rotating in one plane (fixed type) or rotating in more than one plane with mounting on one of the followings: swinging arm, swinging pipe or swinging door in manual and automatic version.
        • The automatic fire hose reels will open fully within 3 revolution of the reel.
        • The nozzle has SHUT, JET and SPRAY control settings.
        • The minimum flow rate of hose reels in JET and SPRAY setting at 220 kpa pressure; for 13mm nozzle is 0.24 L/S, for 19mm nozzle is 0.45 L/S and for 25mm nozzle is 0.55 L/S
        • The effective throw range of discharge at 0.2 MPa (2 bar) pressure is 10 mtrs. in JET setting.
        • The reel discs are painted RED with printed user instructions.

        Specification

        Type Model No. Hose Diameter & Length
        36m Cabinet Mounted SD HA19-020 Length:36, Diameter: 19mm, Nozzle: Metal rotary nozzle
        36m fixed type SD HA19-040M Length:36, Diameter: 19mm, Nozzle: Metal rotary nozzle
        36m fixed type SD HA19-040L Length:36, Diameter: 19mm, Nozzle: lever nozzle
        36m fixed type SD HA19-040P Length:36, Diameter: 19mm, Nozzle: plastic rotary nozzle
        36m fixed type SD HA19-050P Length:36, Diameter: 19mm, Nozzle: plastic rotary nozzle
        36m fixed type SD HA19-050L Length:36, Diameter: 19mm, Nozzle: lever nozzle
        36m fixed type SD HA19-050M Length:36, Diameter: 19mm, Nozzle: Metal rotary nozzle
        36m fixed type SD HA19-060L Length:36, Diameter: 19mm, Nozzle: lever nozzle
        36m fixed type SD HA19-060M Length:36, Diameter: 19mm, Nozzle: Metal rotary nozzle
        36m fixed type SD HA19-060P Length:36, Diameter: 19mm, Nozzle: plastic rotary nozzle
        36m wall mounted SD HA19-030L Length:36, Diameter: 19mm, Nozzle: lever nozzle
        36m wall mounted SD HA19-030M Length:36, Diameter: 19mm, Nozzle: Metal rotary nozzle
        36m wall mounted SD HA19-030P Length:36, Diameter: 19mm, Nozzle: plastic rotary nozzle
